| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_118T01_9000002962_19844cztM0_level2.evt | modeM0/AS1T03_118T01_9000002962_19844cztM0_level2_quad_clean.evt |
| Size (bytes) | 553,446,720 | 104,958,720 |
| Size | 527.8 MB | 100.1 MB |
| Events in quadrant A | 5,722,317 | 684,621 |
| Events in quadrant B | 3,243,073 | 727,267 |
| Events in quadrant C | 3,283,740 | 691,722 |
| Events in quadrant D | 4,100,400 | 650,952 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20969 | 1 |
| B | 0 | 13428 | 1 |
| C | 0 | 13500 | 1 |
| D | 0 | 16088 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6070 | 874 | 14.398682% |
| B | 6071 | 50 | 0.823588% |
| C | 6071 | 56 | 0.922418% |
| D | 6070 | 369 | 6.079077% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

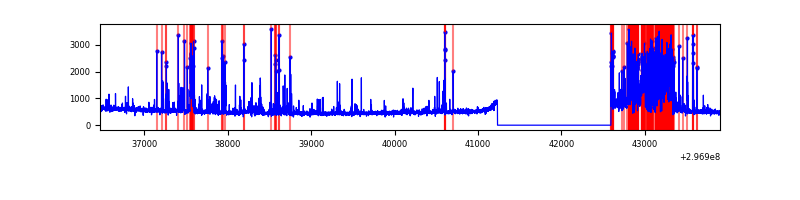

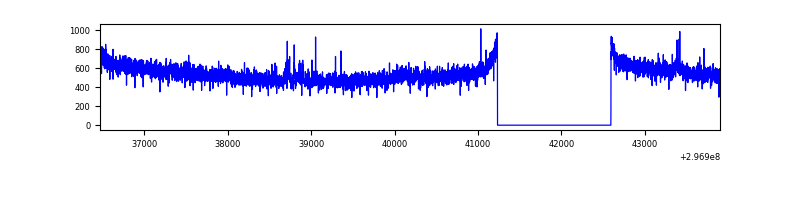

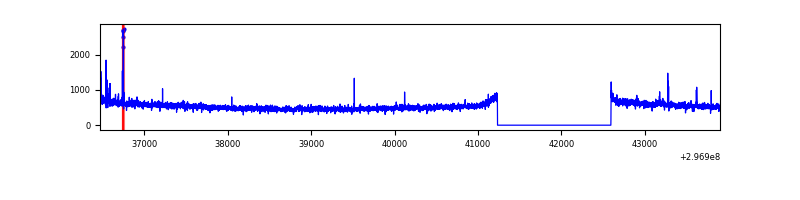

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7430 | 6071 | 585 | 585 | 7.87% | 9.64% |  |
| B | 7431 | 6072 | 5 | 5 | 0.07% | 0.08% |  |
| C | 7431 | 6072 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7430 | 6071 | 271 | 271 | 3.65% | 4.46% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 238 | 2692681 | 17410.78 | 770 | 756 | 154.6 |
| A | 5 | 16 | 34100 | 215.66 | 770 | 756 | 154.6 |
| A | 14 | 254 | 32842 | 207.53 | 770 | 756 | 154.6 |
| B | 7 | 220 | 18706 | 117.8 | 816 | 798 | 152.0 |
| B | 12 | 111 | 17746 | 111.48 | 816 | 798 | 152.0 |
| B | 11 | 111 | 15754 | 98.38 | 816 | 798 | 152.0 |
| C | 14 | 238 | 124573 | 667.24 | 798 | 806 | 185.5 |
| C | 9 | 221 | 37450 | 197.55 | 798 | 806 | 185.5 |
| C | 13 | 61 | 5419 | 24.87 | 798 | 806 | 185.5 |
| D | 12 | 218 | 752634 | 3987.32 | 782 | 762 | 188.6 |
| D | 1 | 52 | 268471 | 1419.71 | 782 | 762 | 188.6 |
| D | 12 | 17 | 66522 | 348.74 | 782 | 762 | 188.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

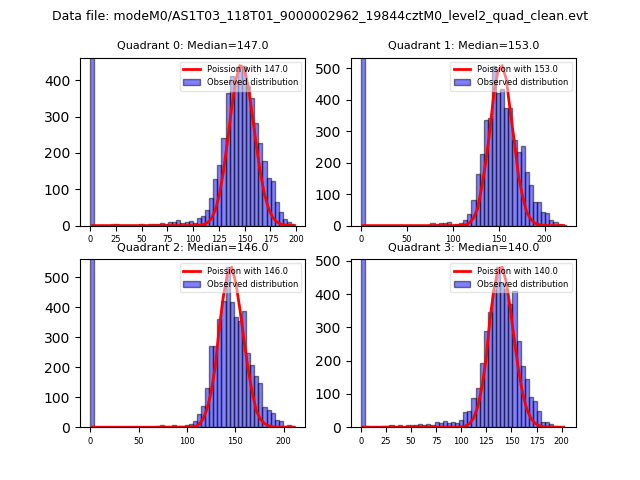

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

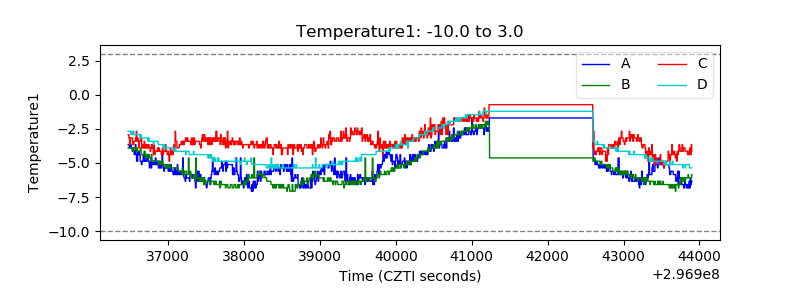

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

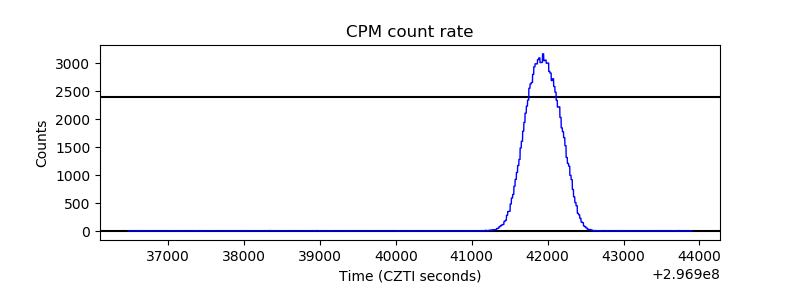

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

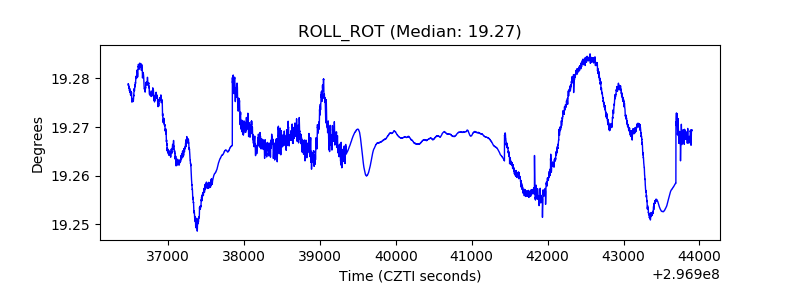

| _ROLL_ROT |  |
| _Roll_DEC |  |

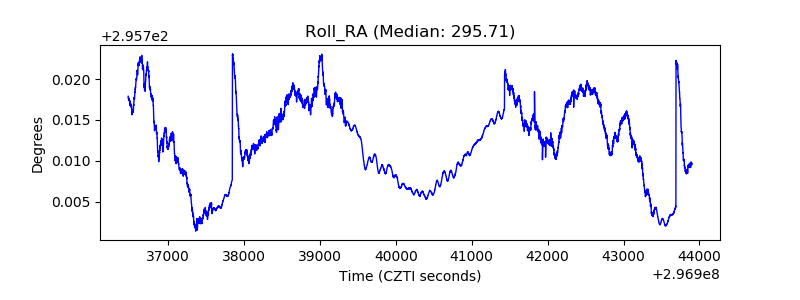

| _Roll_RA |  |
| Veto Counter |  |
