| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_118T01_9000002962_19850cztM0_level2.evt | modeM0/AS1T03_118T01_9000002962_19850cztM0_level2_quad_clean.evt |
| Size (bytes) | 68,670,720 | 15,500,160 |
| Size | 65.5 MB | 14.8 MB |
| Events in quadrant A | 151,880 | 35,679 |
| Events in quadrant B | 716,401 | 127,834 |
| Events in quadrant C | 719,819 | 144,040 |
| Events in quadrant D | 412,402 | 76,920 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140496767183752 | 46 |
| B | 0 | -1 | -1 |
| C | 0 | -1 | -1 |
| D | 0 | -1 | -1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 1 | 140059182398344 | 46 |
| B | 1 | -1 | -1 |
| C | 1 | -1 | -1 |
| D | 1 | -1 | -1 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26127 | 25565 |
| B | 0 | 11814 | 8688 |
| C | 0 | 11725 | 8589 |
| D | 0 | 16762 | 14947 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 281 | 0 | 0.000000% |
| B | 1564 | 3 | 0.191816% |
| C | 1568 | 6 | 0.382653% |
| D | 909 | 1 | 0.110011% |

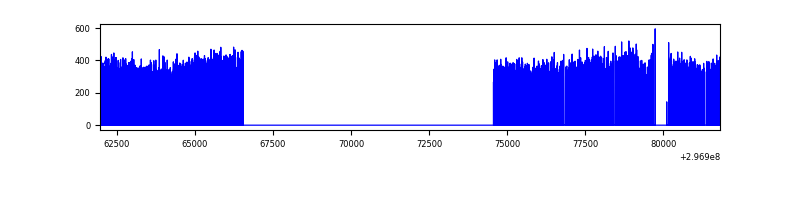

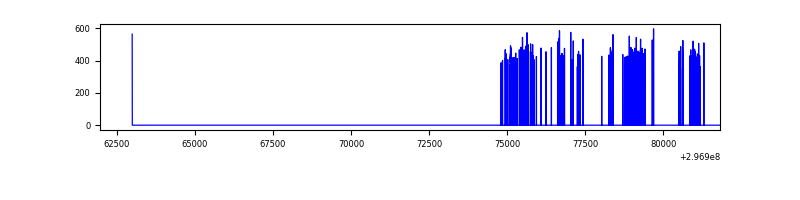

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 18828 | 561 | 0 | 0 | 0.00% | 0.00% |  |
| B | 19859 | 3126 | 0 | 0 | 0.00% | 0.00% |  |
| C | 19859 | 3137 | 0 | 0 | 0.00% | 0.00% |  |
| D | 19817 | 1810 | 0 | 0 | 0.00% | 0.00% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 238 | 28803 | 3368.49 | 31 | 31 | 8.5 |
| A | 9 | 143 | 399 | 43.08 | 31 | 31 | 8.5 |
| A | 14 | 254 | 386 | 41.56 | 31 | 31 | 8.5 |
| B | 12 | 111 | 4348 | 111.97 | 181 | 177 | 37.3 |
| B | 11 | 111 | 3734 | 95.49 | 181 | 177 | 37.3 |
| B | 0 | 198 | 3589 | 91.59 | 181 | 177 | 37.3 |
| C | 14 | 238 | 26746 | 613.7 | 175 | 176 | 43.3 |
| C | 9 | 221 | 3894 | 85.88 | 175 | 176 | 43.3 |
| C | 7 | 247 | 3456 | 75.76 | 175 | 176 | 43.3 |
| D | 2 | 184 | 20700 | 755.63 | 102 | 99 | 27.3 |
| D | 2 | 234 | 3799 | 135.71 | 102 | 99 | 27.3 |
| D | 1 | 52 | 2958 | 104.87 | 102 | 99 | 27.3 |

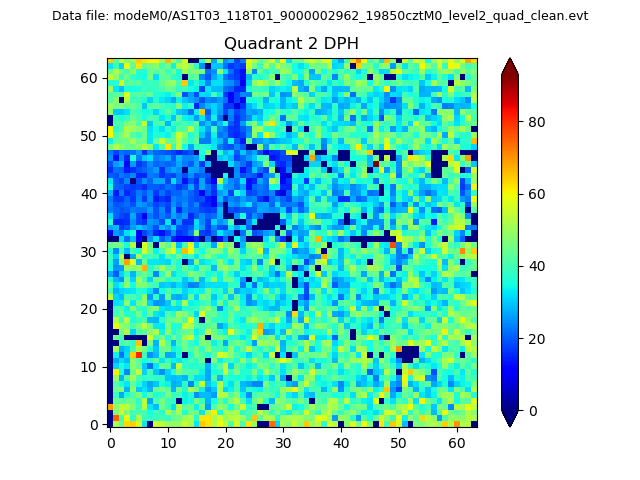

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

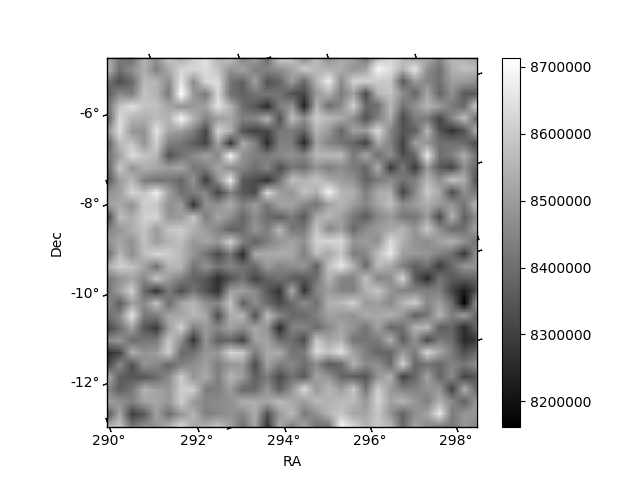

| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

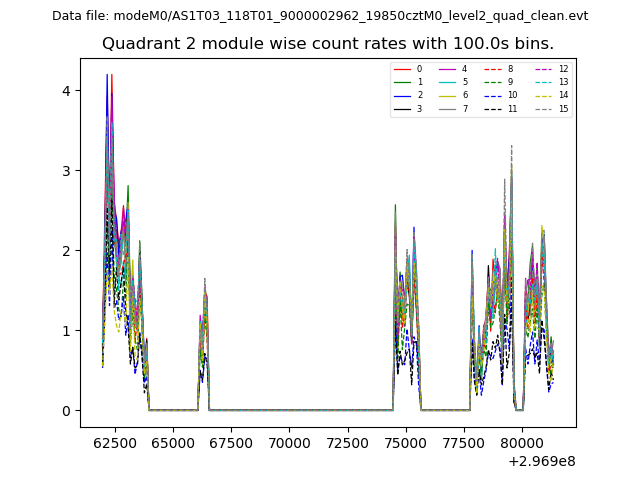

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

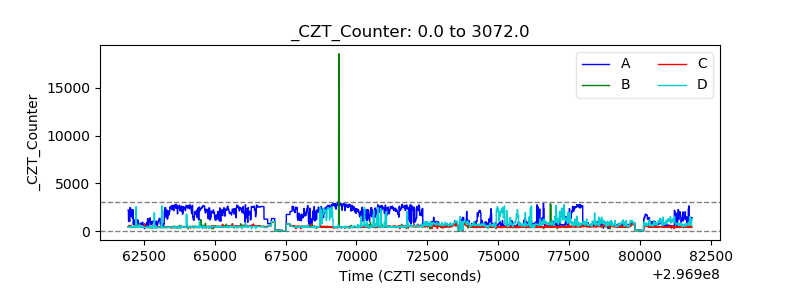

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

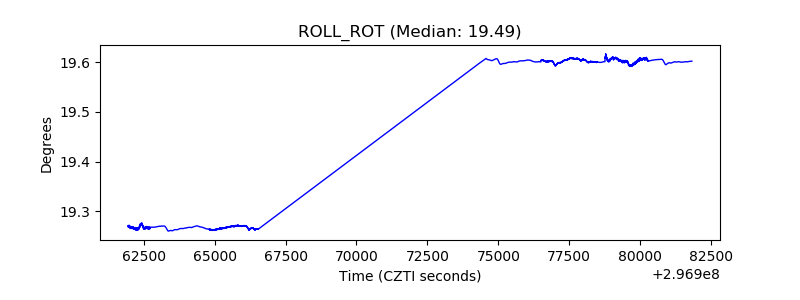

| _ROLL_ROT |  |

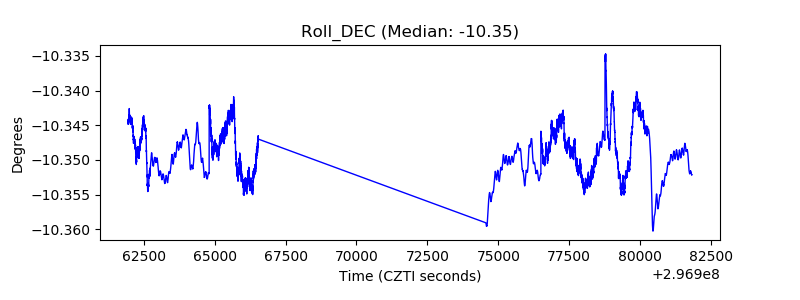

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
