| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_118T01_9000002962_19854cztM0_level2.evt | modeM0/AS1T03_118T01_9000002962_19854cztM0_level2_quad_clean.evt |
| Size (bytes) | 766,440,000 | 63,941,760 |
| Size | 730.9 MB | 61.0 MB |
| Events in quadrant A | 12,120,453 | 296,027 |
| Events in quadrant B | 3,456,901 | 404,991 |
| Events in quadrant C | 3,320,640 | 383,264 |
| Events in quadrant D | 3,857,746 | 381,275 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 40697 | 2 |
| B | 0 | 14495 | 2 |
| C | 0 | 14029 | 2 |
| D | 0 | 15942 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6741 | 3791 | 56.237947% |
| B | 6741 | 106 | 1.572467% |
| C | 6741 | 104 | 1.542798% |
| D | 6741 | 110 | 1.631805% |

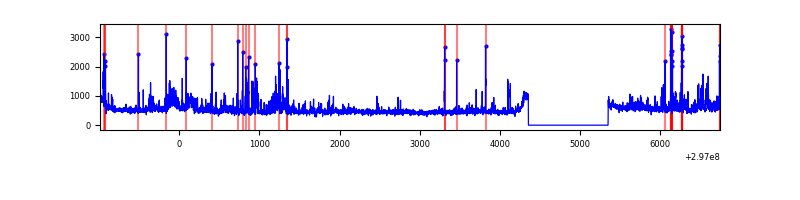

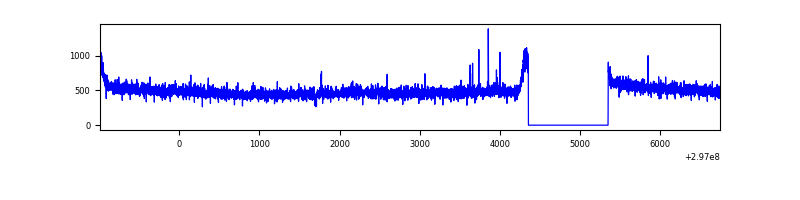

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7735 | 6740 | 3110 | 3110 | 40.21% | 46.14% |  |
| B | 7736 | 6741 | 7 | 7 | 0.09% | 0.10% |  |
| C | 7736 | 6741 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7736 | 6741 | 37 | 37 | 0.48% | 0.55% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 238 | 9109599 | 70537.71 | 636 | 623 | 129.1 |
| A | 14 | 254 | 559739 | 4329.66 | 636 | 623 | 129.1 |
| A | 0 | 226 | 5444 | 37.33 | 636 | 623 | 129.1 |
| B | 7 | 220 | 49951 | 303.48 | 845 | 825 | 161.9 |
| B | 0 | 198 | 24390 | 145.57 | 845 | 825 | 161.9 |
| B | 4 | 216 | 24192 | 144.35 | 845 | 825 | 161.9 |
| C | 14 | 238 | 125858 | 648.23 | 813 | 819 | 192.9 |
| C | 9 | 221 | 18434 | 91.32 | 813 | 819 | 192.9 |
| C | 13 | 61 | 5591 | 24.74 | 813 | 819 | 192.9 |
| D | 1 | 52 | 394247 | 1943.88 | 828 | 802 | 202.4 |
| D | 2 | 184 | 292137 | 1439.39 | 828 | 802 | 202.4 |
| D | 2 | 234 | 27965 | 134.2 | 828 | 802 | 202.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

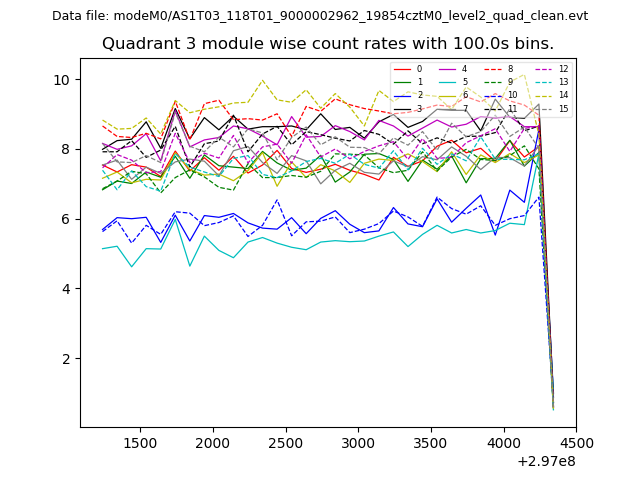

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

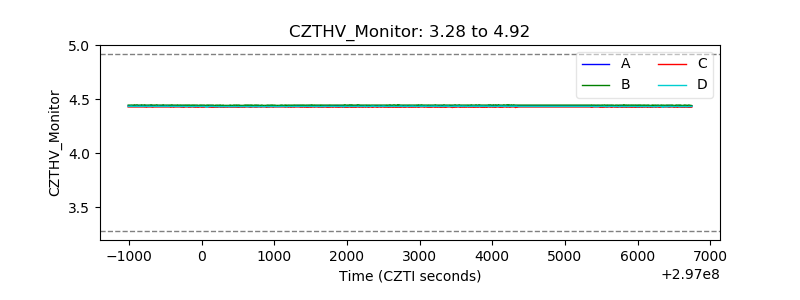

| CZT HV Monitor |  |

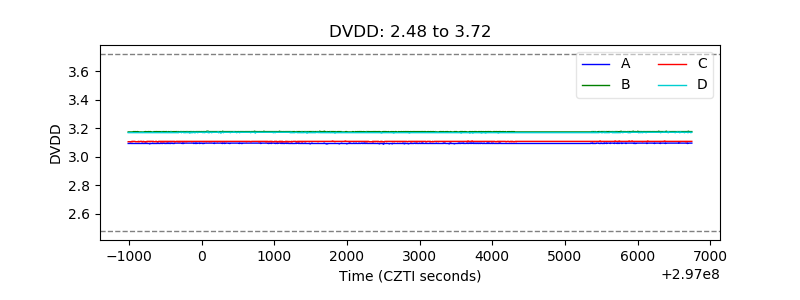

| D_VDD |  |

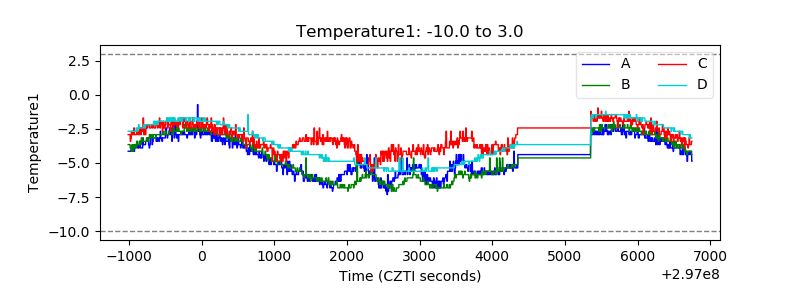

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

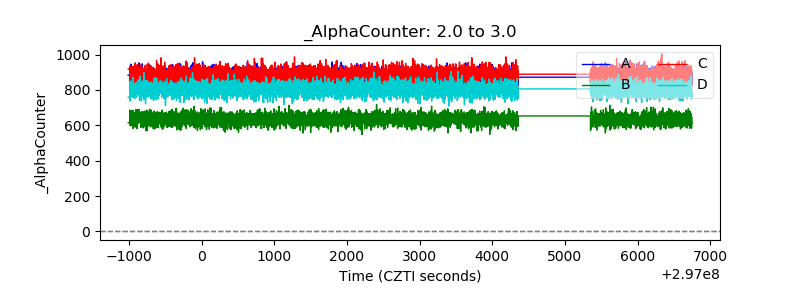

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

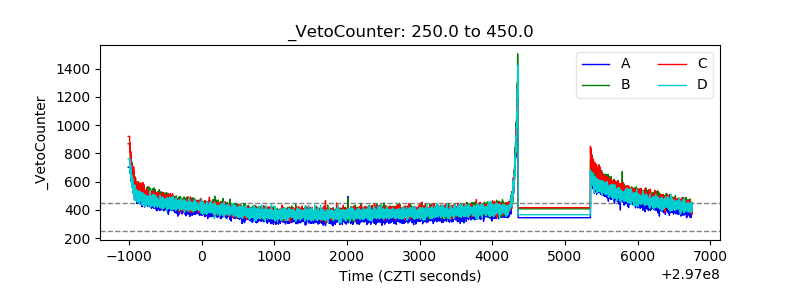

| Veto Counter |  |
