| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_118T01_9000002962_19859cztM0_level2.evt | modeM0/AS1T03_118T01_9000002962_19859cztM0_level2_quad_clean.evt |
| Size (bytes) | 529,344,000 | 108,673,920 |
| Size | 504.8 MB | 103.6 MB |
| Events in quadrant A | 4,226,024 | 717,285 |
| Events in quadrant B | 3,338,581 | 744,634 |
| Events in quadrant C | 4,516,068 | 704,142 |
| Events in quadrant D | 3,528,004 | 689,991 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16573 | 2 |
| B | 0 | 13791 | 3 |
| C | 0 | 17914 | 2 |
| D | 0 | 14341 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6232 | 179 | 2.872272% |
| B | 6231 | 53 | 0.850586% |
| C | 6231 | 135 | 2.166586% |
| D | 6231 | 96 | 1.540684% |

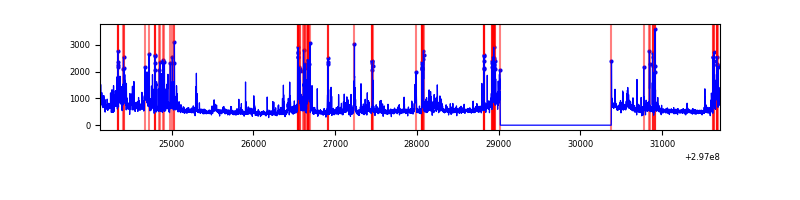

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7582 | 6225 | 102 | 102 | 1.35% | 1.64% |  |
| B | 7581 | 6224 | 2 | 2 | 0.03% | 0.03% |  |
| C | 7581 | 6224 | 12 | 12 | 0.16% | 0.19% |  |
| D | 7581 | 6224 | 52 | 52 | 0.69% | 0.84% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 238 | 1035074 | 6267.46 | 828 | 815 | 165.0 |
| A | 0 | 226 | 7075 | 37.93 | 828 | 815 | 165.0 |
| A | 3 | 137 | 6327 | 33.4 | 828 | 815 | 165.0 |
| B | 12 | 111 | 18366 | 111.79 | 840 | 821 | 156.9 |
| B | 11 | 111 | 16313 | 98.71 | 840 | 821 | 156.9 |
| B | 14 | 111 | 14415 | 86.61 | 840 | 821 | 156.9 |
| C | 9 | 221 | 1189518 | 6260.42 | 817 | 826 | 189.9 |
| C | 14 | 238 | 127492 | 667.11 | 817 | 826 | 189.9 |
| C | 3 | 233 | 12152 | 59.65 | 817 | 826 | 189.9 |
| D | 1 | 52 | 220457 | 1119.04 | 817 | 798 | 196.3 |
| D | 12 | 218 | 87240 | 440.38 | 817 | 798 | 196.3 |
| D | 2 | 184 | 67961 | 342.16 | 817 | 798 | 196.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

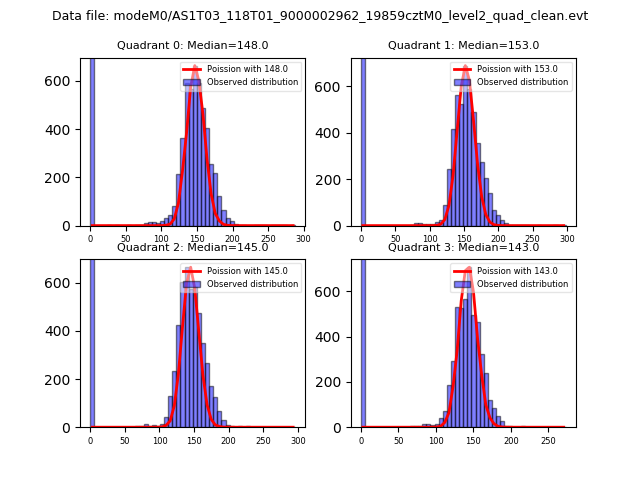

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

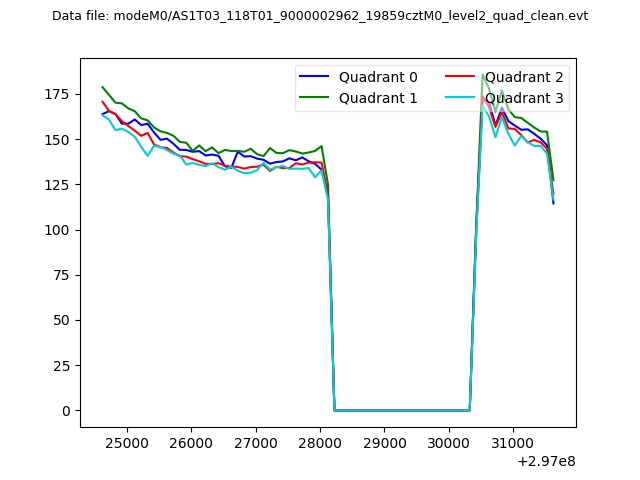

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

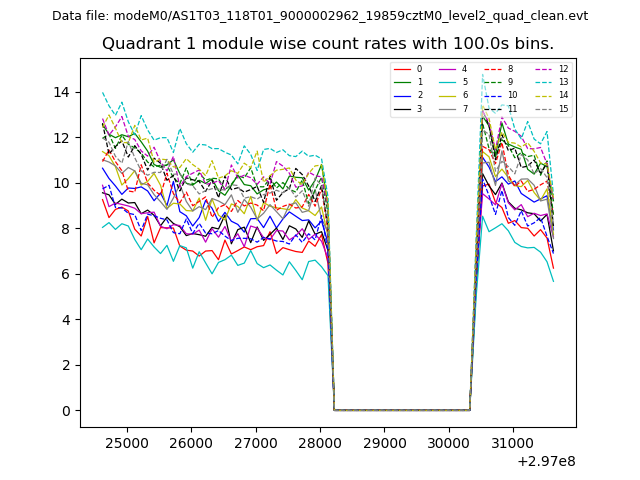

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

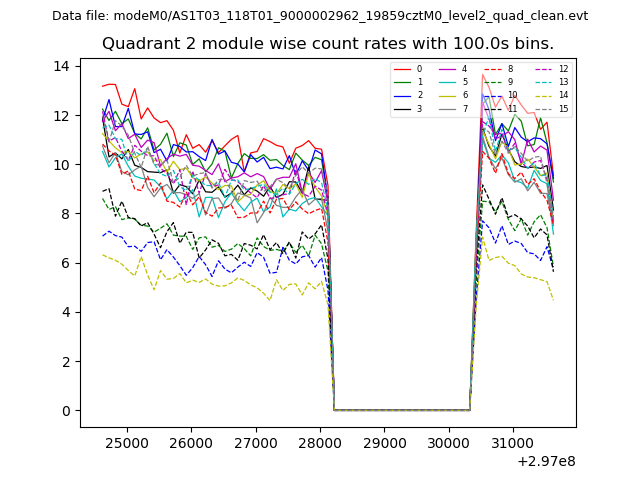

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

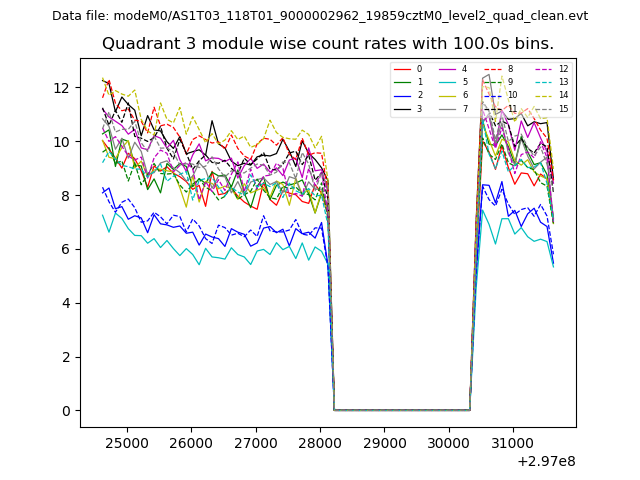

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

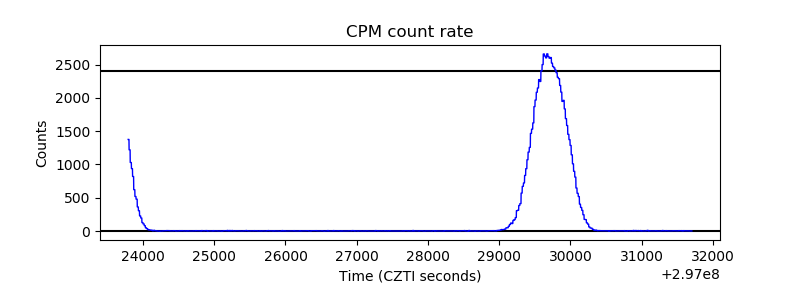

| _CPM_Rate |  |

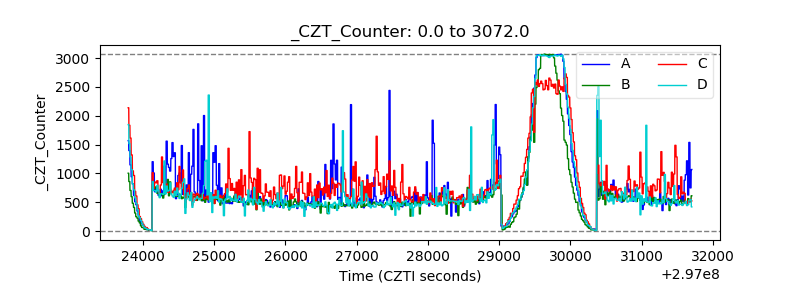

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
