| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_118T01_9000002962_19862cztM0_level2.evt | modeM0/AS1T03_118T01_9000002962_19862cztM0_level2_quad_clean.evt |
| Size (bytes) | 528,001,920 | 97,424,640 |
| Size | 503.5 MB | 92.9 MB |
| Events in quadrant A | 4,309,684 | 616,044 |
| Events in quadrant B | 3,447,021 | 640,081 |
| Events in quadrant C | 4,090,515 | 607,012 |
| Events in quadrant D | 3,667,589 | 598,897 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 142 | 0 |
| B | 0 | 142 | 0 |
| C | 0 | 142 | 0 |
| D | 0 | 142 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17313 | 2 |
| B | 0 | 14695 | 2 |
| C | 0 | 16610 | 4 |
| D | 0 | 15590 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7009 | 319 | 4.551291% |
| B | 7009 | 121 | 1.726352% |
| C | 7008 | 199 | 2.839612% |
| D | 7008 | 143 | 2.040525% |

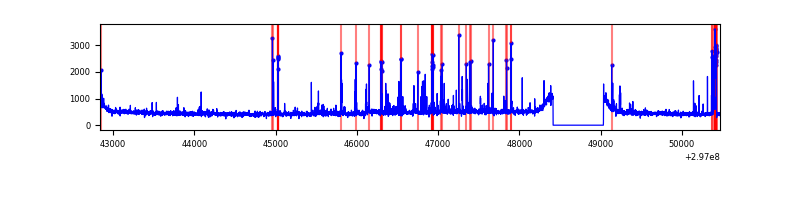

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7629 | 7009 | 206 | 206 | 2.70% | 2.94% |  |
| B | 7629 | 7009 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7628 | 7008 | 18 | 18 | 0.24% | 0.26% |  |
| D | 7628 | 7009 | 59 | 59 | 0.77% | 0.84% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 238 | 974747 | 5500.37 | 865 | 845 | 177.1 |
| A | 14 | 254 | 9686 | 49.93 | 865 | 845 | 177.1 |
| A | 0 | 226 | 7420 | 37.13 | 865 | 845 | 177.1 |
| B | 12 | 111 | 20786 | 118.67 | 870 | 846 | 168.0 |
| B | 0 | 230 | 19274 | 109.67 | 870 | 846 | 168.0 |
| B | 11 | 111 | 18520 | 105.18 | 870 | 846 | 168.0 |
| C | 9 | 221 | 675911 | 3396.6 | 841 | 848 | 198.7 |
| C | 14 | 238 | 129757 | 648.61 | 841 | 848 | 198.7 |
| C | 13 | 61 | 5840 | 25.12 | 841 | 848 | 198.7 |
| D | 1 | 52 | 349934 | 1669.14 | 854 | 832 | 209.2 |
| D | 7 | 207 | 70727 | 334.18 | 854 | 832 | 209.2 |
| D | 2 | 234 | 27360 | 126.84 | 854 | 832 | 209.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

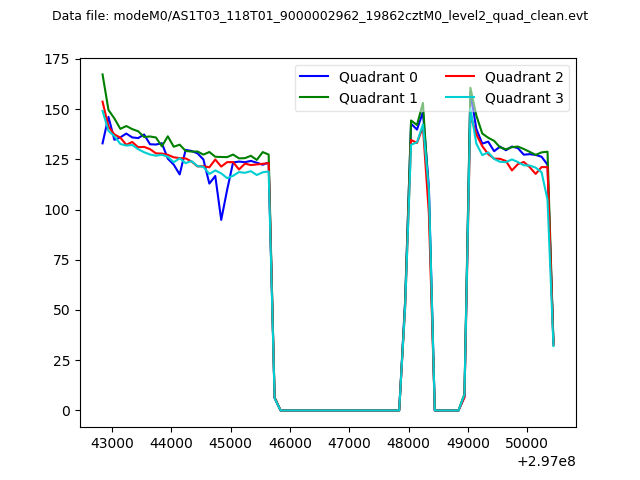

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

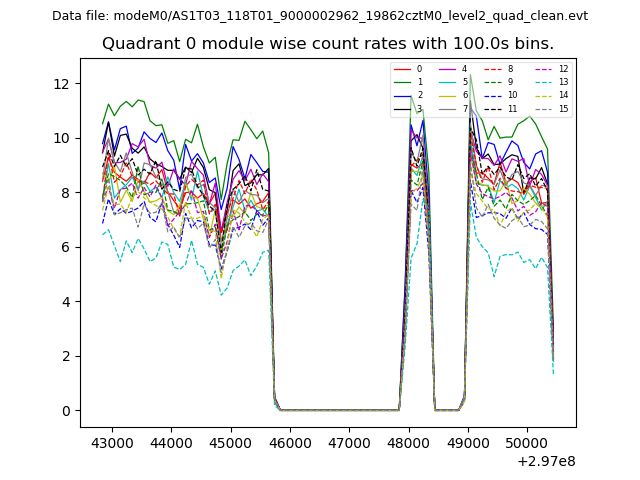

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

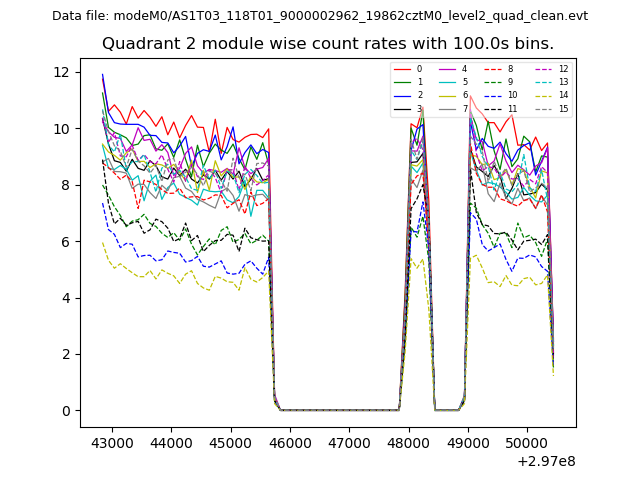

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

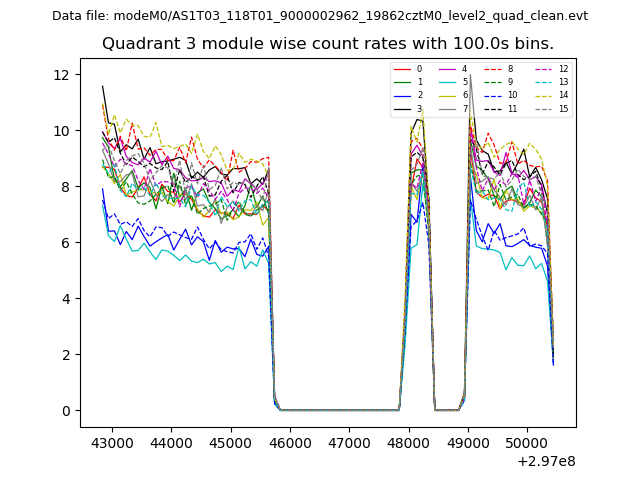

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

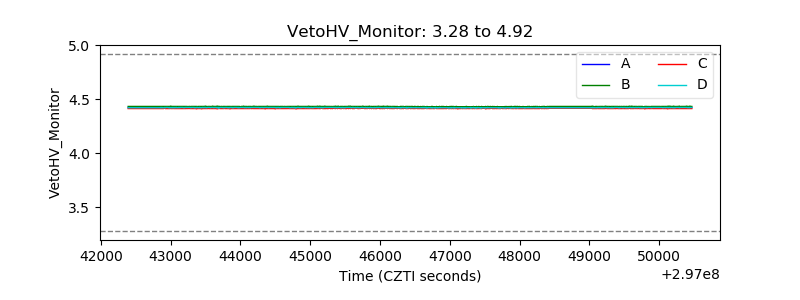

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

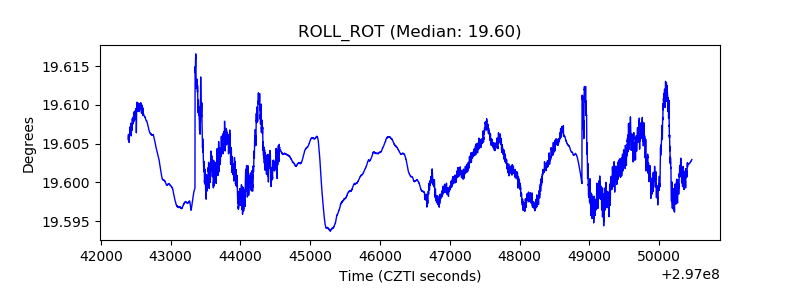

| _ROLL_ROT |  |

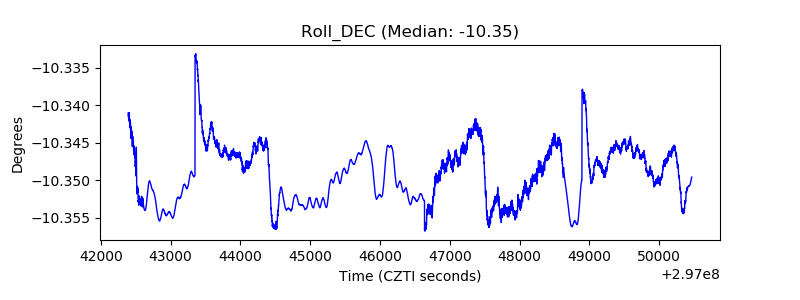

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
