| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_118T01_9000002962_19888cztM0_level2.evt | modeM0/AS1T03_118T01_9000002962_19888cztM0_level2_quad_clean.evt |
| Size (bytes) | 483,238,080 | 108,288,000 |
| Size | 460.9 MB | 103.3 MB |
| Events in quadrant A | 3,485,351 | 724,237 |
| Events in quadrant B | 3,633,716 | 737,933 |
| Events in quadrant C | 3,588,451 | 691,404 |
| Events in quadrant D | 3,486,955 | 673,474 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 28 | 0 |
| B | 0 | 28 | 0 |
| C | 0 | 28 | 0 |
| D | 0 | 28 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14307 | 2 |
| B | 0 | 14874 | 2 |
| C | 0 | 14661 | 2 |
| D | 0 | 14490 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6495 | 43 | 0.662048% |
| B | 6496 | 103 | 1.585591% |
| C | 6496 | 78 | 1.200739% |
| D | 6496 | 41 | 0.631158% |

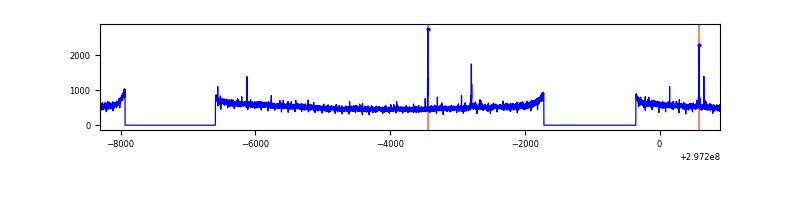

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9200 | 6497 | 2 | 2 | 0.02% | 0.03% |  |
| B | 9201 | 6498 | 6 | 6 | 0.07% | 0.09% |  |
| C | 9201 | 6498 | 0 | 0 | 0.00% | 0.00% |  |
| D | 9201 | 6498 | 17 | 17 | 0.18% | 0.26% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 5 | 16 | 19769 | 105.5 | 898 | 882 | 179.0 |
| A | 9 | 143 | 13185 | 68.72 | 898 | 882 | 179.0 |
| A | 0 | 226 | 7652 | 37.82 | 898 | 882 | 179.0 |
| B | 7 | 220 | 44899 | 259.79 | 901 | 882 | 169.4 |
| B | 0 | 197 | 36134 | 208.06 | 901 | 882 | 169.4 |
| B | 12 | 111 | 19503 | 109.9 | 901 | 882 | 169.4 |
| C | 14 | 238 | 136353 | 667.23 | 871 | 881 | 203.0 |
| C | 9 | 221 | 54932 | 266.21 | 871 | 881 | 203.0 |
| C | 13 | 61 | 6079 | 25.6 | 871 | 881 | 203.0 |
| D | 1 | 20 | 59414 | 277.51 | 875 | 854 | 211.0 |
| D | 7 | 238 | 34797 | 160.85 | 875 | 854 | 211.0 |
| D | 12 | 218 | 30199 | 139.06 | 875 | 854 | 211.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

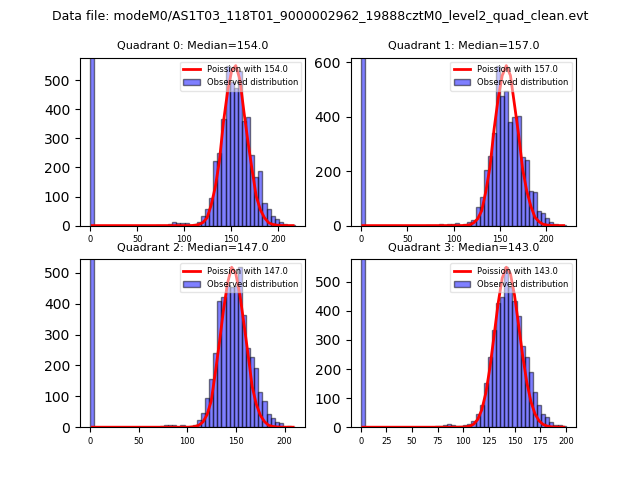

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

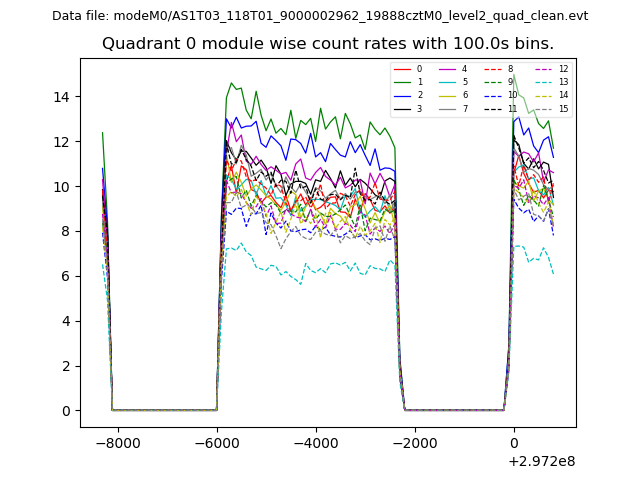

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

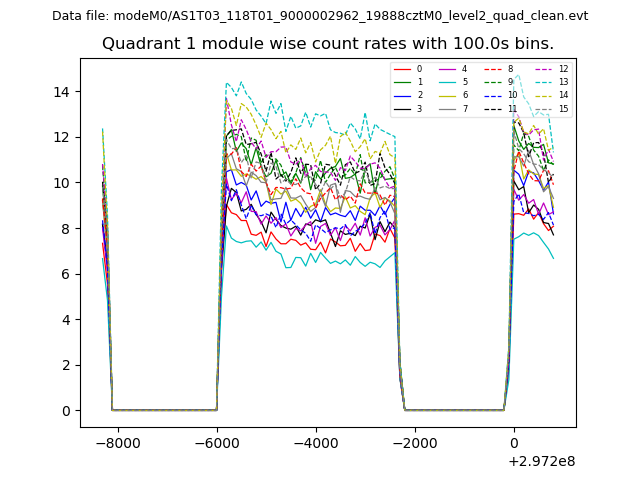

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

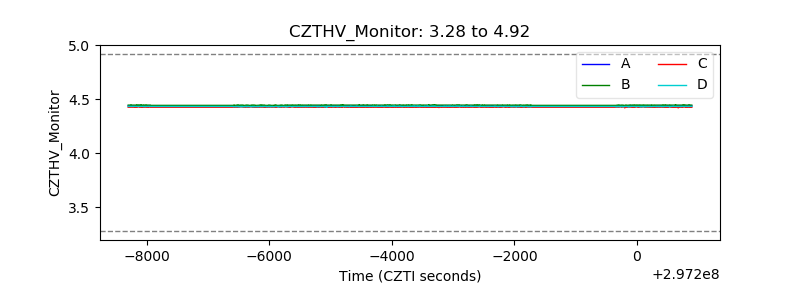

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

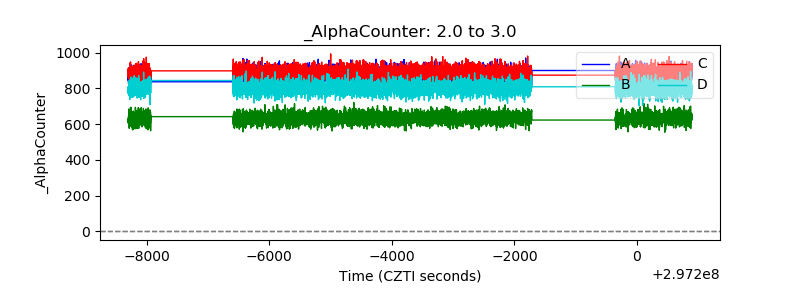

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

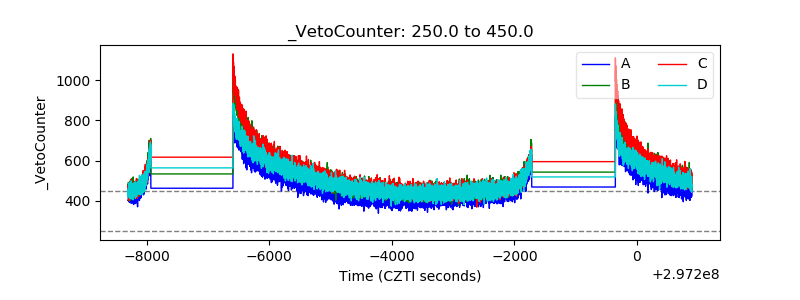

| Veto Counter |  |
