| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_118T01_9000002962_19891cztM0_level2.evt | modeM0/AS1T03_118T01_9000002962_19891cztM0_level2_quad_clean.evt |
| Size (bytes) | 472,809,600 | 97,784,640 |
| Size | 450.9 MB | 93.3 MB |
| Events in quadrant A | 3,354,130 | 628,133 |
| Events in quadrant B | 3,454,783 | 637,833 |
| Events in quadrant C | 3,672,256 | 608,618 |
| Events in quadrant D | 3,363,447 | 600,352 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 142 | 0 |
| B | 0 | 142 | 0 |
| C | 0 | 142 | 0 |
| D | 0 | 142 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14509 | 2 |
| B | 0 | 14674 | 2 |
| C | 0 | 15243 | 2 |
| D | 0 | 14680 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6980 | 75 | 1.074499% |
| B | 6980 | 121 | 1.733524% |
| C | 6980 | 181 | 2.593123% |
| D | 6980 | 57 | 0.816619% |

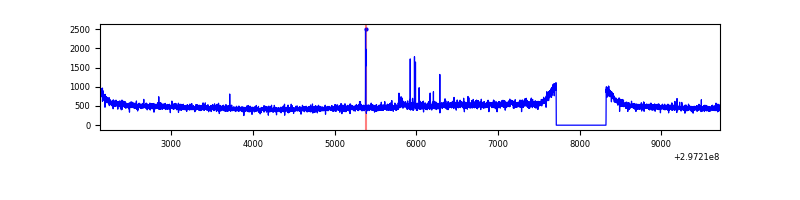

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7590 | 6980 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7590 | 6981 | 1 | 1 | 0.01% | 0.01% |  |
| C | 7590 | 6980 | 6 | 6 | 0.08% | 0.09% |  |
| D | 7590 | 6981 | 5 | 5 | 0.07% | 0.07% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 7489 | 37.24 | 872 | 853 | 178.2 |
| A | 3 | 137 | 7053 | 34.8 | 872 | 853 | 178.2 |
| A | 12 | 194 | 6138 | 29.66 | 872 | 853 | 178.2 |
| B | 12 | 111 | 20855 | 119.46 | 870 | 847 | 167.5 |
| B | 11 | 111 | 18470 | 105.22 | 870 | 847 | 167.5 |
| B | 14 | 111 | 16265 | 92.06 | 870 | 847 | 167.5 |
| C | 9 | 221 | 251428 | 1251.25 | 843 | 849 | 200.3 |
| C | 14 | 238 | 129430 | 642.06 | 843 | 849 | 200.3 |
| C | 7 | 220 | 5921 | 25.33 | 843 | 849 | 200.3 |
| D | 1 | 52 | 85423 | 404.24 | 856 | 834 | 209.3 |
| D | 5 | 222 | 31463 | 146.37 | 856 | 834 | 209.3 |
| D | 2 | 234 | 27497 | 127.42 | 856 | 834 | 209.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

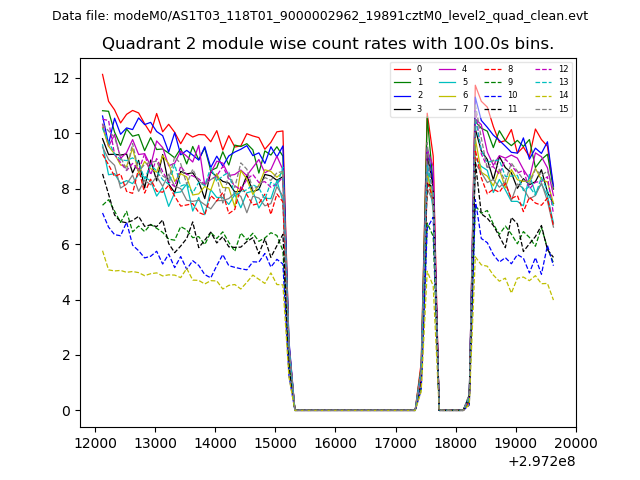

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

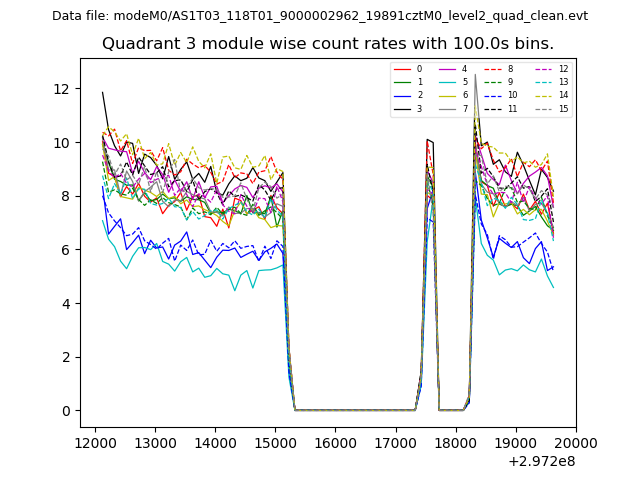

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

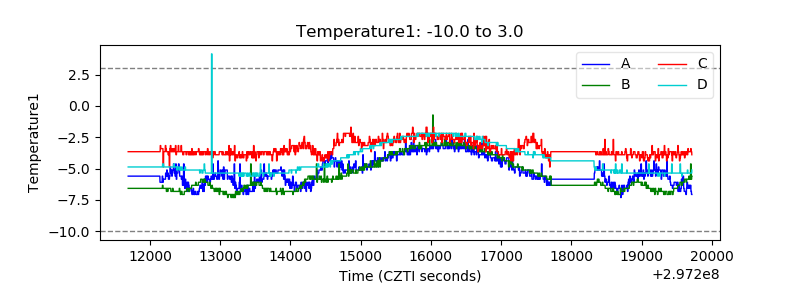

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

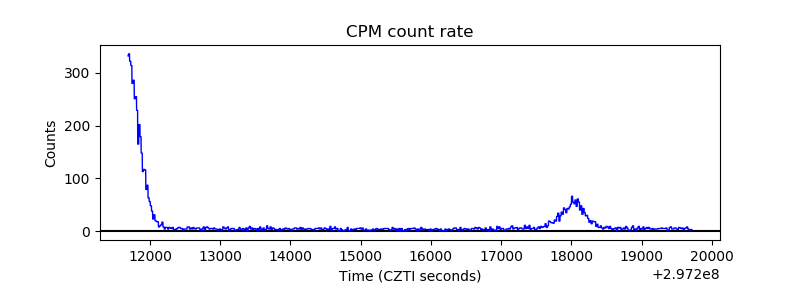

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

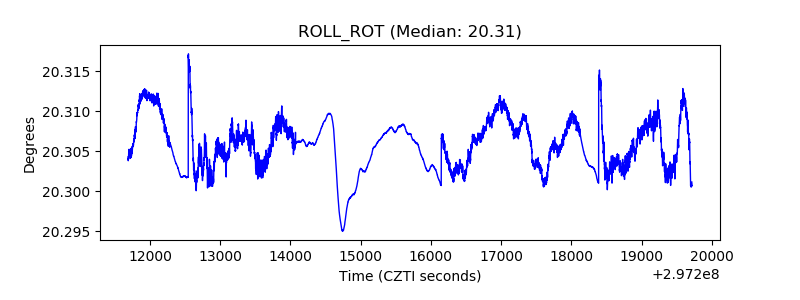

| _ROLL_ROT |  |
| _Roll_DEC |  |

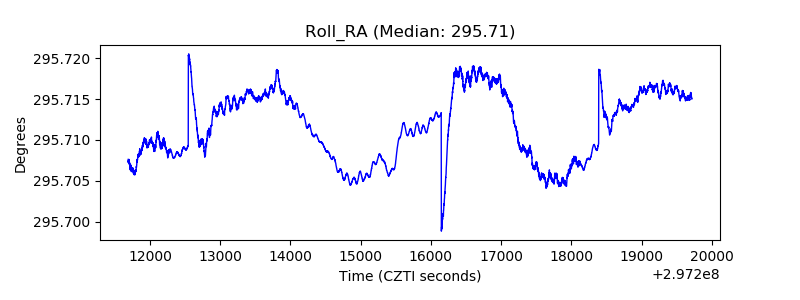

| _Roll_RA |  |

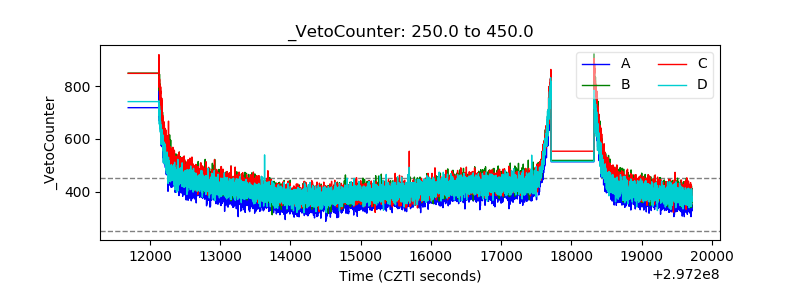

| Veto Counter |  |
