| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_118T01_9000002962_19892cztM0_level2.evt | modeM0/AS1T03_118T01_9000002962_19892cztM0_level2_quad_clean.evt |
| Size (bytes) | 557,956,800 | 111,591,360 |
| Size | 532.1 MB | 106.4 MB |
| Events in quadrant A | 4,042,951 | 717,055 |
| Events in quadrant B | 4,068,468 | 724,178 |
| Events in quadrant C | 4,194,801 | 692,415 |
| Events in quadrant D | 4,040,745 | 681,994 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 168 | 0 |
| B | 0 | 168 | 0 |
| C | 0 | 168 | 0 |
| D | 0 | 168 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17254 | 2 |
| B | 0 | 17264 | 2 |
| C | 0 | 17572 | 2 |
| D | 0 | 17489 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8103 | 173 | 2.135012% |
| B | 8104 | 235 | 2.899803% |
| C | 8104 | 283 | 3.492103% |
| D | 8104 | 159 | 1.961994% |

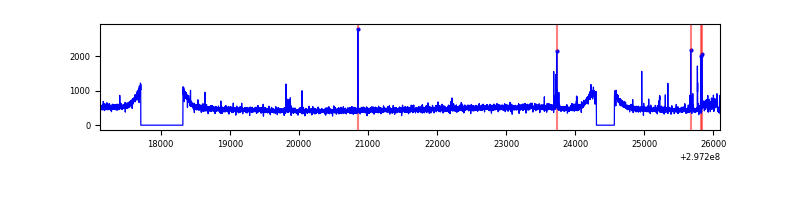

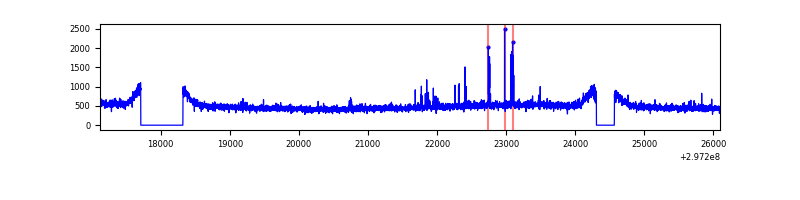

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8973 | 8103 | 5 | 5 | 0.06% | 0.06% |  |
| B | 8974 | 8105 | 3 | 3 | 0.03% | 0.04% |  |
| C | 8974 | 8104 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8974 | 8105 | 9 | 9 | 0.10% | 0.11% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 5 | 16 | 100284 | 474.0 | 1024 | 1001 | 209.5 |
| A | 0 | 226 | 8556 | 36.07 | 1024 | 1001 | 209.5 |
| A | 3 | 137 | 8447 | 35.55 | 1024 | 1001 | 209.5 |
| B | 4 | 216 | 57269 | 283.09 | 1020 | 994 | 198.8 |
| B | 12 | 111 | 24465 | 118.07 | 1020 | 994 | 198.8 |
| B | 11 | 111 | 22028 | 105.81 | 1020 | 994 | 198.8 |
| C | 9 | 221 | 181409 | 766.29 | 989 | 995 | 235.4 |
| C | 14 | 238 | 150445 | 634.78 | 989 | 995 | 235.4 |
| C | 13 | 61 | 6760 | 24.49 | 989 | 995 | 235.4 |
| D | 1 | 52 | 101053 | 405.37 | 1005 | 976 | 246.9 |
| D | 7 | 238 | 71606 | 286.09 | 1005 | 976 | 246.9 |
| D | 5 | 222 | 49866 | 198.03 | 1005 | 976 | 246.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

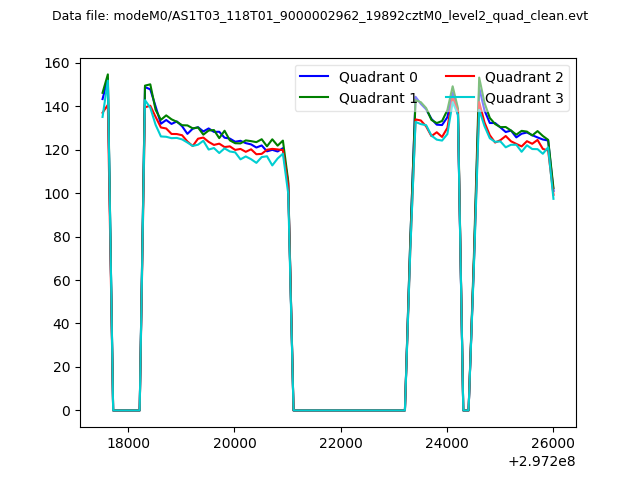

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

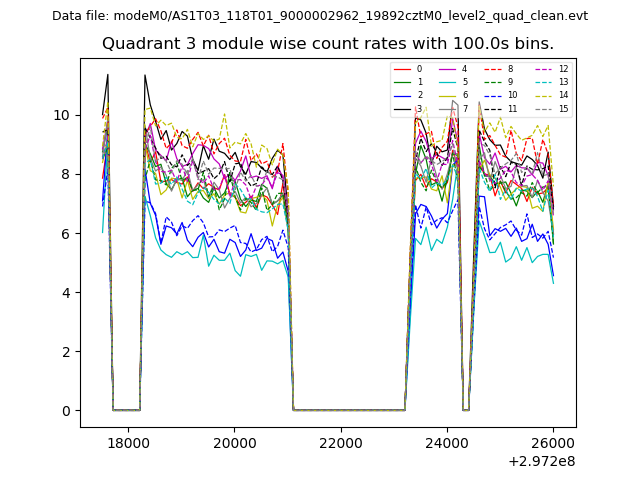

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

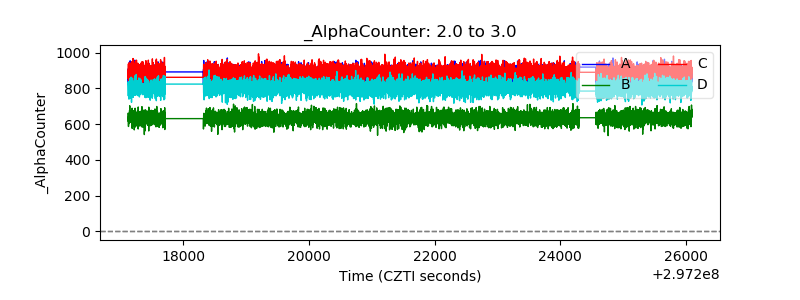

| Alpha Counter |  |

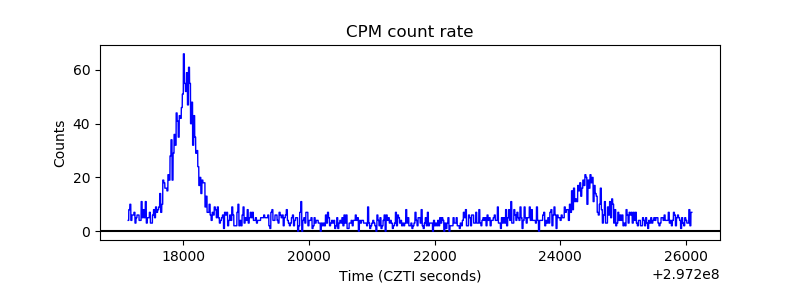

| _CPM_Rate |  |

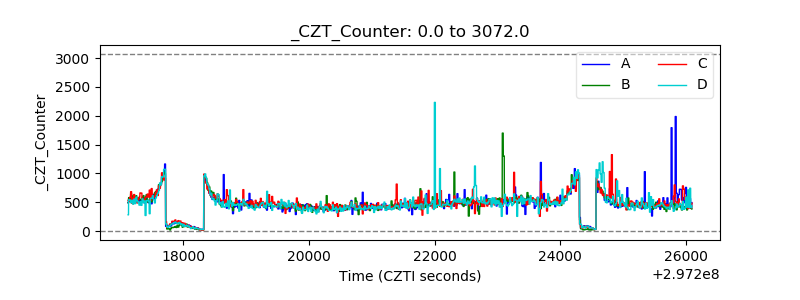

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

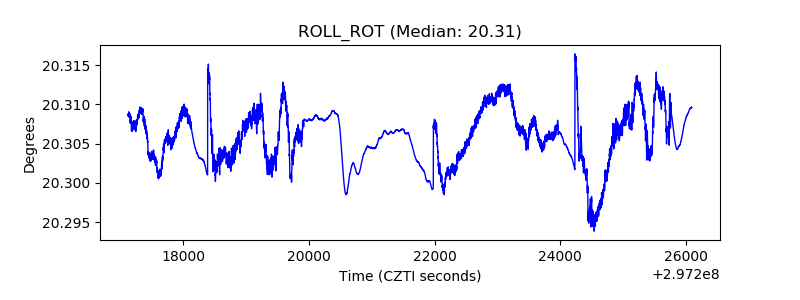

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
