| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_064T01_9000002964_19901cztM0_level2.evt | modeM0/AS1A05_064T01_9000002964_19901cztM0_level2_quad_clean.evt |
| Size (bytes) | 239,515,200 | 36,671,040 |
| Size | 228.4 MB | 35.0 MB |
| Events in quadrant A | 1,296,861 | 242,873 |
| Events in quadrant B | 1,292,652 | 252,263 |
| Events in quadrant C | 1,930,765 | 236,533 |
| Events in quadrant D | 2,579,048 | 215,661 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5289 | 1 |
| B | 0 | 5278 | 1 |
| C | 0 | 7370 | 1 |
| D | 0 | 9313 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 48 | 0 |
| B | 0 | 48 | 0 |
| C | 0 | 48 | 0 |
| D | 0 | 48 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 2250 | 62 | 2.755556% |
| B | 2249 | 35 | 1.556247% |
| C | 2249 | 190 | 8.448199% |
| D | 2249 | 288 | 12.805691% |

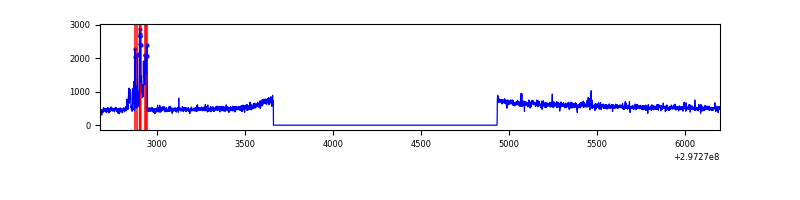

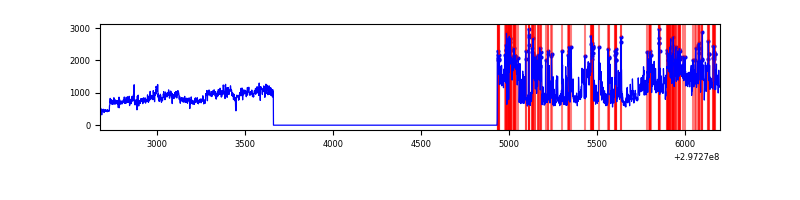

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 3520 | 2250 | 17 | 17 | 0.48% | 0.76% |  |
| B | 3519 | 2249 | 0 | 0 | 0.00% | 0.00% |  |
| C | 3519 | 2249 | 21 | 21 | 0.60% | 0.93% |  |
| D | 3519 | 2249 | 160 | 160 | 4.55% | 7.11% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 5 | 16 | 87733 | 1375.58 | 312 | 306 | 63.6 |
| A | 10 | 253 | 5806 | 86.54 | 312 | 306 | 63.6 |
| A | 12 | 96 | 3039 | 43.0 | 312 | 306 | 63.6 |
| B | 4 | 216 | 48742 | 825.72 | 313 | 305 | 58.7 |
| B | 0 | 228 | 10347 | 171.19 | 313 | 305 | 58.7 |
| B | 12 | 111 | 6195 | 100.41 | 313 | 305 | 58.7 |
| C | 9 | 221 | 711469 | 10112.54 | 300 | 302 | 70.3 |
| C | 14 | 238 | 46293 | 653.98 | 300 | 302 | 70.3 |
| C | 13 | 61 | 2119 | 25.84 | 300 | 302 | 70.3 |
| D | 1 | 52 | 573352 | 7973.13 | 296 | 288 | 71.9 |
| D | 2 | 184 | 220941 | 3069.98 | 296 | 288 | 71.9 |
| D | 7 | 38 | 216071 | 3002.22 | 296 | 288 | 71.9 |

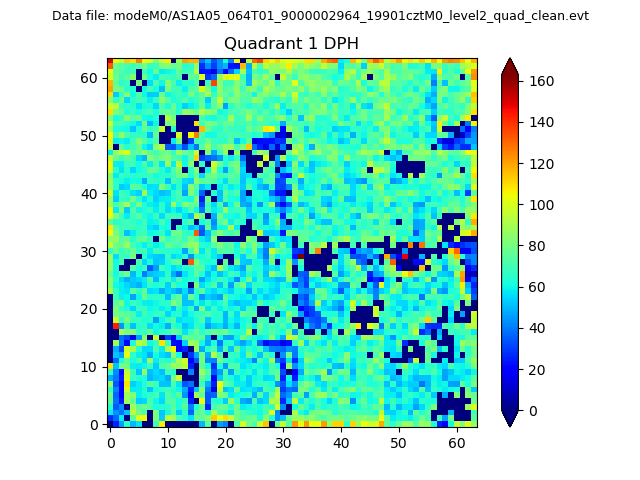

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

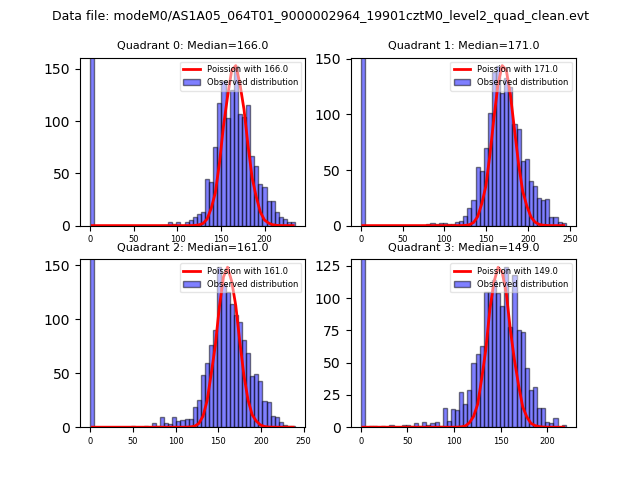

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

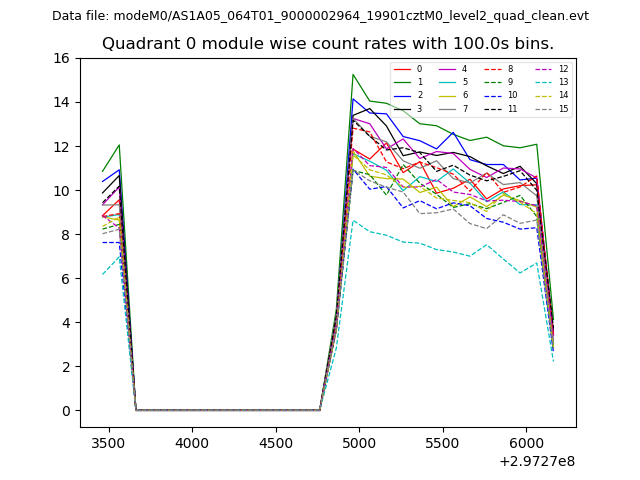

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

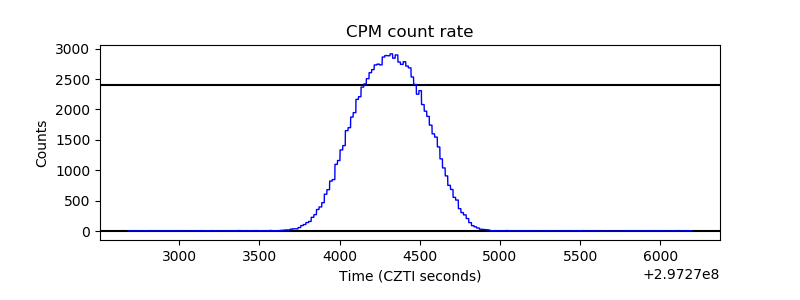

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

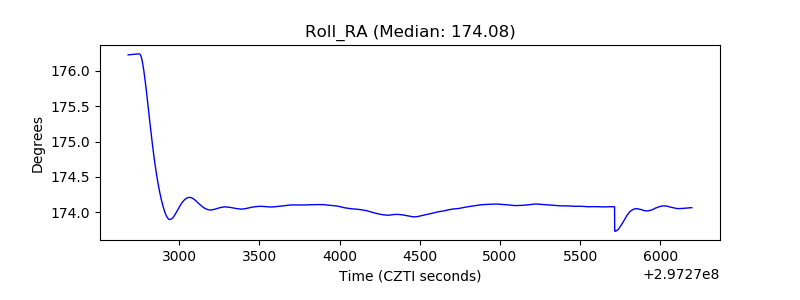

| _Roll_RA |  |
| Veto Counter |  |
