| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_064T01_9000002964_19904cztM0_level2.evt | modeM0/AS1A05_064T01_9000002964_19904cztM0_level2_quad_clean.evt |
| Size (bytes) | 538,767,360 | 114,914,880 |
| Size | 513.8 MB | 109.6 MB |
| Events in quadrant A | 3,019,425 | 773,781 |
| Events in quadrant B | 3,311,849 | 789,489 |
| Events in quadrant C | 3,741,584 | 765,704 |
| Events in quadrant D | 5,808,159 | 703,137 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13323 | 2 |
| B | 0 | 14067 | 2 |
| C | 0 | 15378 | 2 |
| D | 0 | 21597 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 15 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6416 | 16 | 0.249377% |
| B | 6415 | 78 | 1.215900% |
| C | 6415 | 246 | 3.834762% |
| D | 6415 | 815 | 12.704599% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7576 | 6417 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7575 | 6415 | 7 | 7 | 0.09% | 0.11% |  |
| C | 7575 | 6416 | 64 | 64 | 0.84% | 1.00% |  |

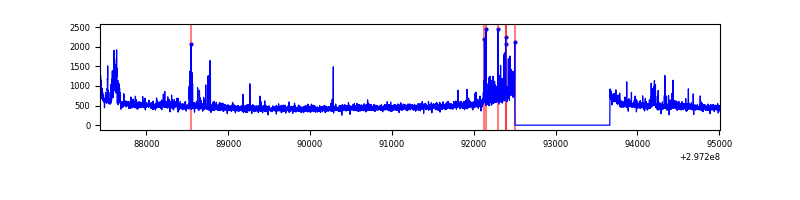

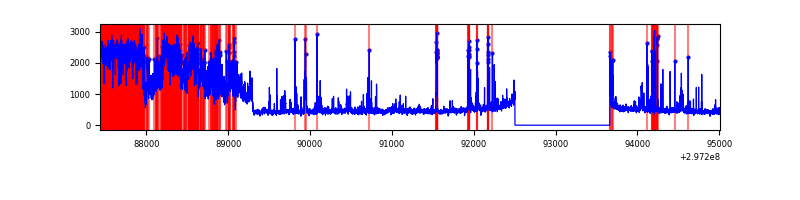

| D | 7575 | 6416 | 820 | 820 | 10.83% | 12.78% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 5 | 16 | 74348 | 478.01 | 764 | 747 | 154.0 |
| A | 0 | 226 | 6598 | 38.0 | 764 | 747 | 154.0 |
| A | 3 | 137 | 5803 | 32.84 | 764 | 747 | 154.0 |
| B | 7 | 220 | 102640 | 710.23 | 773 | 755 | 143.5 |
| B | 0 | 190 | 63201 | 435.31 | 773 | 755 | 143.5 |
| B | 4 | 216 | 37066 | 253.12 | 773 | 755 | 143.5 |
| C | 9 | 221 | 689373 | 3964.75 | 749 | 755 | 173.7 |
| C | 14 | 238 | 117166 | 670.24 | 749 | 755 | 173.7 |
| C | 13 | 61 | 5238 | 25.81 | 749 | 755 | 173.7 |
| D | 2 | 184 | 2329720 | 13252.61 | 729 | 709 | 175.7 |
| D | 1 | 52 | 284410 | 1614.32 | 729 | 709 | 175.7 |
| D | 7 | 38 | 159471 | 903.39 | 729 | 709 | 175.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

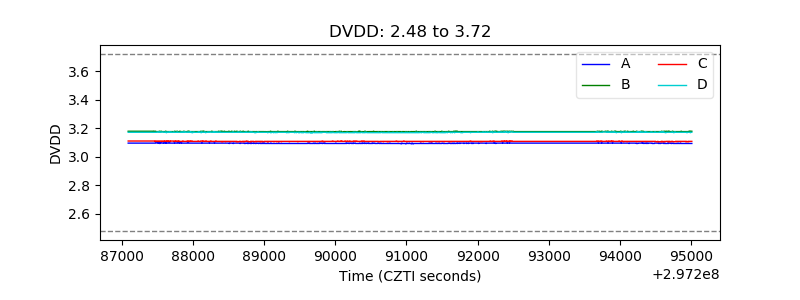

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

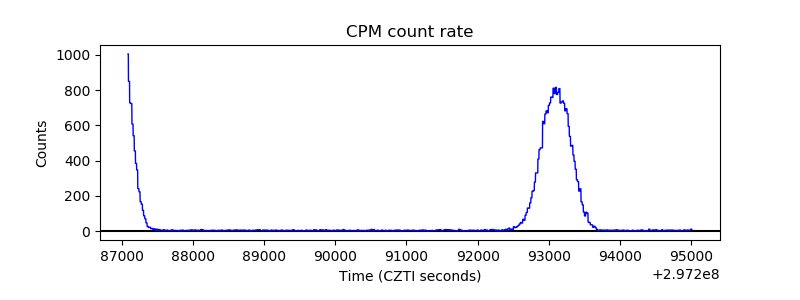

| _CPM_Rate |  |

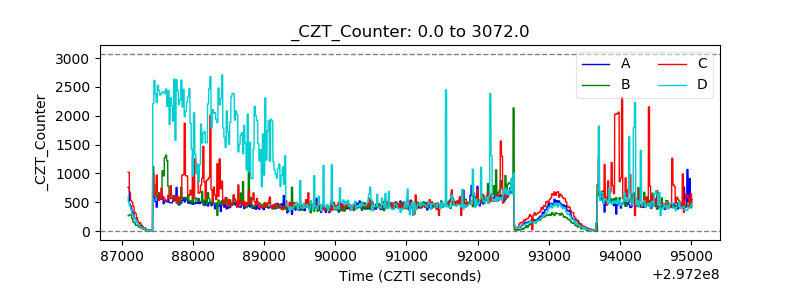

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

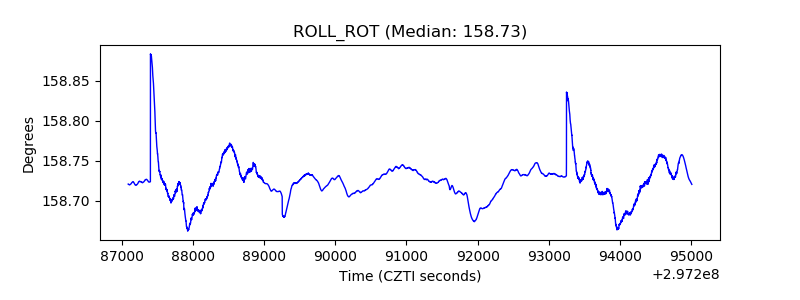

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

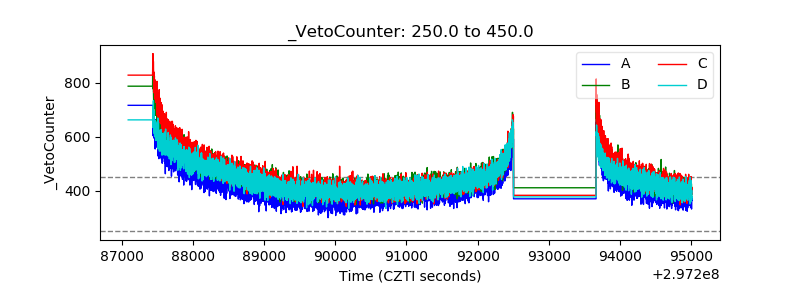

| Veto Counter |  |
