| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_064T01_9000002964_19906cztM0_level2.evt | modeM0/AS1A05_064T01_9000002964_19906cztM0_level2_quad_clean.evt |
| Size (bytes) | 653,929,920 | 117,345,600 |
| Size | 623.6 MB | 111.9 MB |
| Events in quadrant A | 3,178,230 | 795,934 |
| Events in quadrant B | 3,503,523 | 809,062 |
| Events in quadrant C | 4,240,228 | 780,796 |
| Events in quadrant D | 8,398,405 | 669,872 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14465 | 2 |
| B | 0 | 15286 | 2 |
| C | 0 | 17440 | 2 |
| D | 0 | 30040 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 146 | 0 |
| B | 0 | 146 | 0 |
| C | 0 | 146 | 0 |
| D | 0 | 146 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7140 | 19 | 0.266106% |
| B | 7140 | 70 | 0.980392% |
| C | 7140 | 273 | 3.823529% |
| D | 7140 | 1756 | 24.593838% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

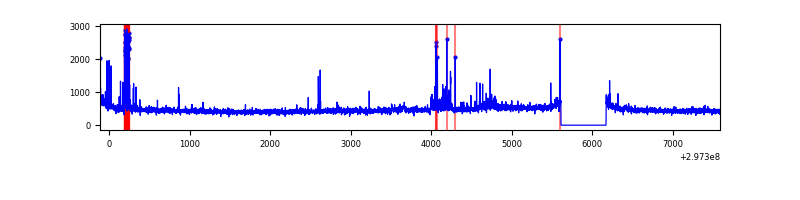

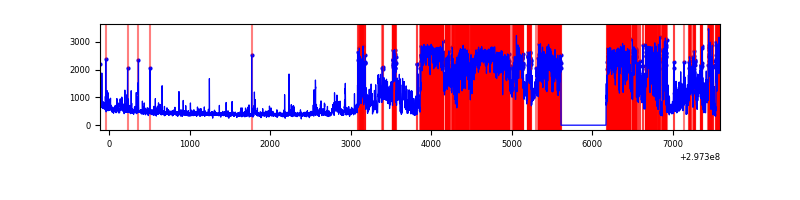

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7700 | 7141 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7700 | 7141 | 44 | 44 | 0.57% | 0.62% |  |
| C | 7700 | 7141 | 93 | 93 | 1.21% | 1.30% |  |
| D | 7699 | 7139 | 1683 | 1683 | 21.86% | 23.57% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 5 | 16 | 12938 | 73.51 | 818 | 799 | 165.1 |
| A | 14 | 238 | 8778 | 48.32 | 818 | 799 | 165.1 |
| A | 0 | 226 | 7007 | 37.59 | 818 | 799 | 165.1 |
| B | 7 | 220 | 163189 | 1053.45 | 820 | 799 | 154.2 |
| B | 4 | 216 | 28582 | 180.23 | 820 | 799 | 154.2 |
| B | 0 | 228 | 25139 | 157.9 | 820 | 799 | 154.2 |
| C | 9 | 221 | 987733 | 5287.68 | 792 | 794 | 186.6 |
| C | 14 | 238 | 121725 | 647.9 | 792 | 794 | 186.6 |
| C | 0 | 207 | 27178 | 141.35 | 792 | 794 | 186.6 |
| D | 2 | 184 | 4697032 | 26740.58 | 725 | 706 | 175.6 |
| D | 7 | 38 | 558975 | 3178.75 | 725 | 706 | 175.6 |
| D | 1 | 52 | 184536 | 1046.72 | 725 | 706 | 175.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

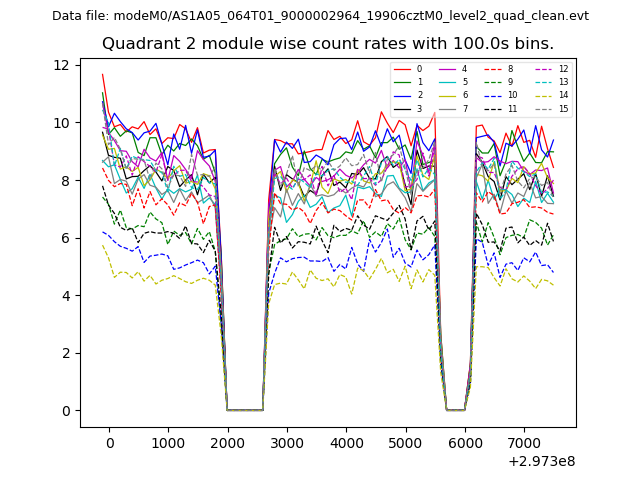

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

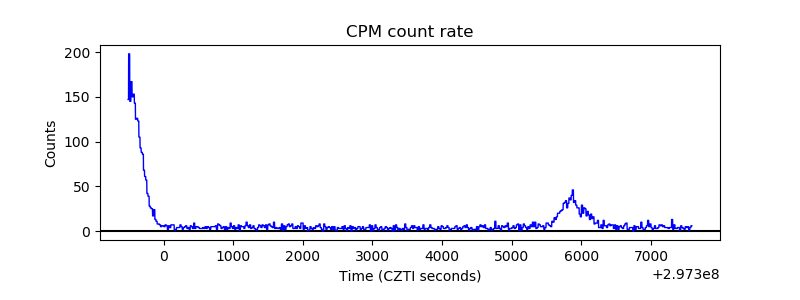

| _CPM_Rate |  |

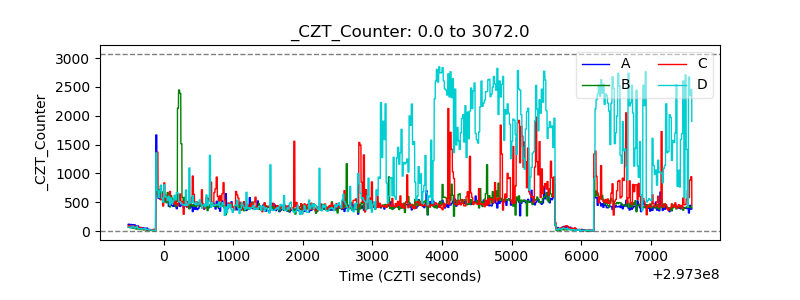

| CZT Counter |  |

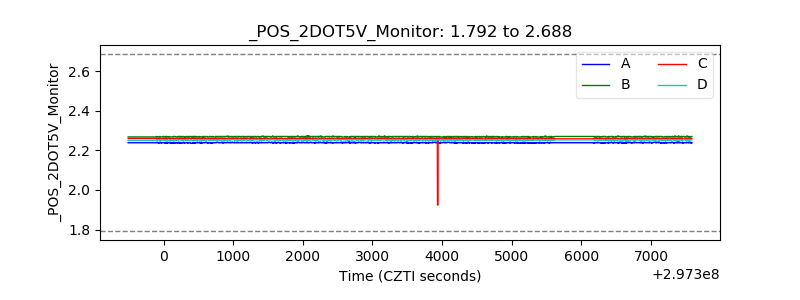

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

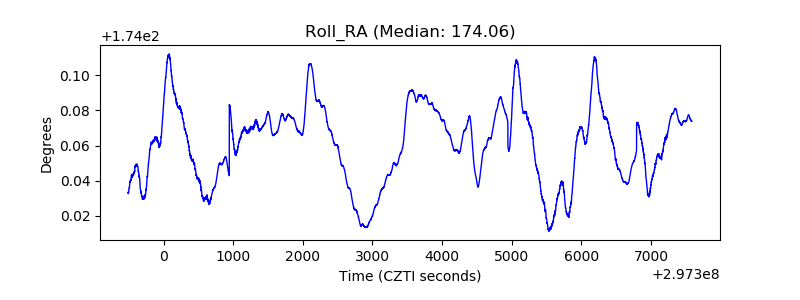

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
