| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_160T01_9000002970_19931cztM0_level2.evt | modeM0/AS1A05_160T01_9000002970_19931cztM0_level2_quad_clean.evt |
| Size (bytes) | 619,162,560 | 71,052,480 |
| Size | 590.5 MB | 67.8 MB |
| Events in quadrant A | 3,443,831 | 448,455 |
| Events in quadrant B | 4,039,597 | 446,053 |
| Events in quadrant C | 5,372,140 | 415,907 |
| Events in quadrant D | 5,474,570 | 405,788 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14235 | 2 |
| B | 0 | 16166 | 2 |
| C | 0 | 20577 | 2 |
| D | 0 | 20585 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6233 | 130 | 2.085673% |
| B | 6233 | 212 | 3.401251% |
| C | 6233 | 435 | 6.978983% |
| D | 6233 | 637 | 10.219798% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7523 | 6233 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7523 | 6233 | 35 | 35 | 0.47% | 0.56% |  |
| C | 7523 | 6233 | 128 | 128 | 1.70% | 2.05% |  |
| D | 7523 | 6233 | 519 | 519 | 6.90% | 8.33% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 7983 | 39.9 | 894 | 878 | 178.1 |
| A | 12 | 194 | 6583 | 32.04 | 894 | 878 | 178.1 |
| A | 3 | 137 | 6302 | 30.46 | 894 | 878 | 178.1 |
| B | 0 | 189 | 168166 | 1004.12 | 886 | 864 | 166.6 |
| B | 7 | 220 | 165936 | 990.74 | 886 | 864 | 166.6 |
| B | 0 | 197 | 74134 | 439.76 | 886 | 864 | 166.6 |
| C | 3 | 233 | 1117913 | 5731.58 | 846 | 855 | 194.9 |
| C | 4 | 254 | 629939 | 3227.81 | 846 | 855 | 194.9 |
| C | 9 | 221 | 193919 | 990.6 | 846 | 855 | 194.9 |
| D | 7 | 38 | 1428518 | 6866.29 | 855 | 831 | 207.9 |
| D | 1 | 52 | 739190 | 3551.05 | 855 | 831 | 207.9 |
| D | 2 | 234 | 32815 | 153.82 | 855 | 831 | 207.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

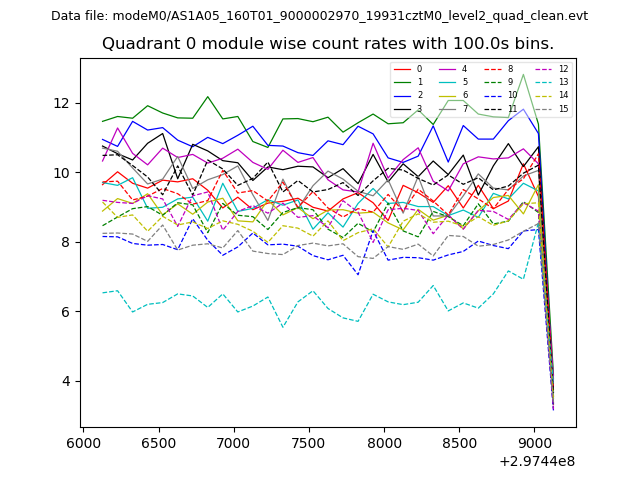

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

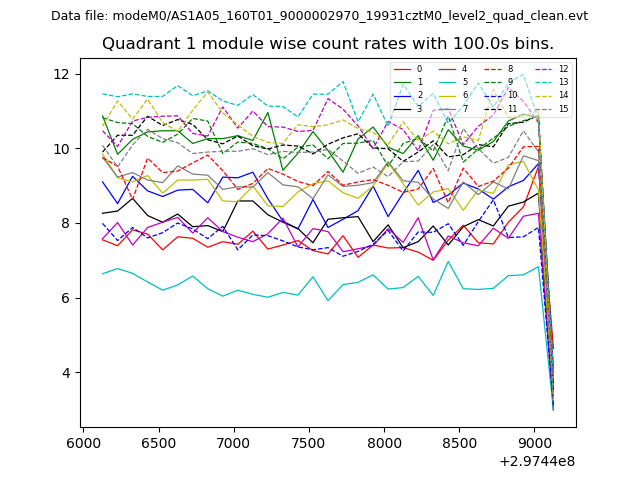

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

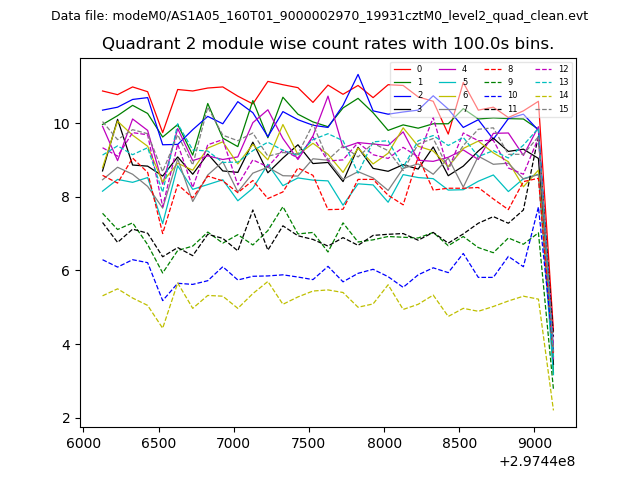

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

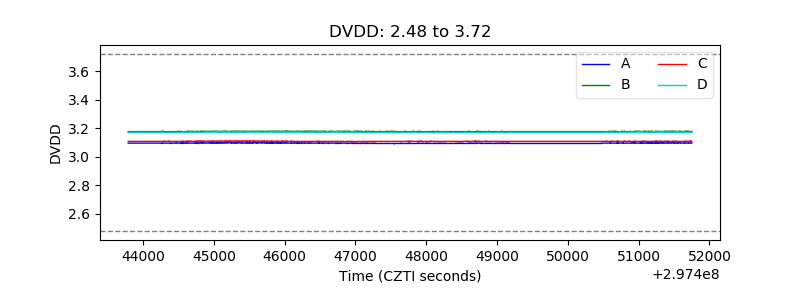

| D_VDD |  |

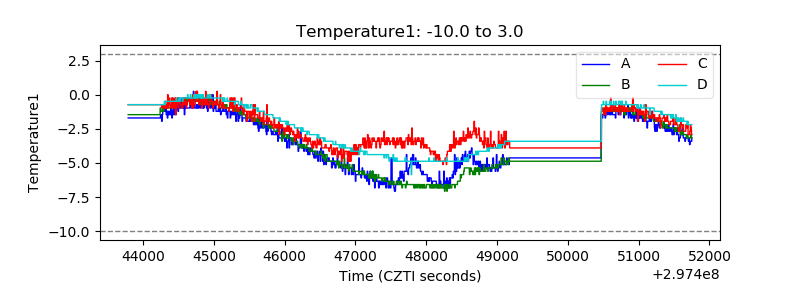

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

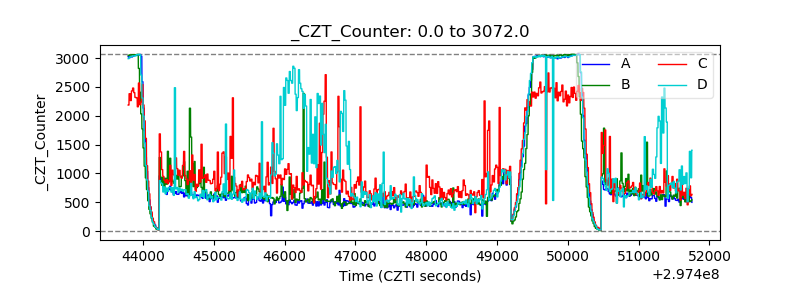

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

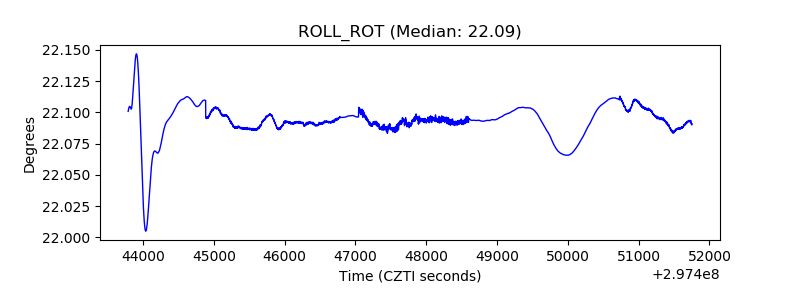

| _ROLL_ROT |  |
| _Roll_DEC |  |

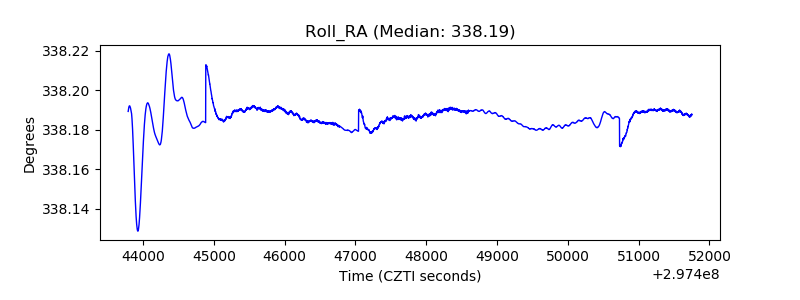

| _Roll_RA |  |
| Veto Counter |  |
