| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_160T01_9000002970_19936cztM0_level2.evt | modeM0/AS1A05_160T01_9000002970_19936cztM0_level2_quad_clean.evt |
| Size (bytes) | 600,445,440 | 104,673,600 |
| Size | 572.6 MB | 99.8 MB |
| Events in quadrant A | 3,652,033 | 683,391 |
| Events in quadrant B | 3,944,366 | 682,074 |
| Events in quadrant C | 5,976,027 | 631,350 |
| Events in quadrant D | 4,097,987 | 645,611 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 154 | 0 |
| B | 0 | 154 | 0 |
| C | 0 | 154 | 0 |
| D | 0 | 154 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15879 | 2 |
| B | 0 | 16808 | 2 |
| C | 0 | 23133 | 2 |
| D | 0 | 17588 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 2 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7580 | 50 | 0.659631% |
| B | 7580 | 153 | 2.018470% |
| C | 7580 | 720 | 9.498681% |
| D | 7580 | 107 | 1.411609% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7830 | 7581 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7830 | 7580 | 16 | 16 | 0.20% | 0.21% |  |
| C | 7830 | 7580 | 302 | 302 | 3.86% | 3.98% |  |
| D | 7830 | 7581 | 63 | 63 | 0.80% | 0.83% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 1 | 30917 | 157.3 | 934 | 914 | 190.7 |
| A | 15 | 191 | 27089 | 137.23 | 934 | 914 | 190.7 |
| A | 0 | 226 | 7930 | 36.78 | 934 | 914 | 190.7 |
| B | 7 | 220 | 124344 | 686.39 | 932 | 908 | 179.8 |
| B | 0 | 244 | 30608 | 165.15 | 932 | 908 | 179.8 |
| B | 15 | 201 | 27209 | 146.25 | 932 | 908 | 179.8 |
| C | 4 | 254 | 1312810 | 6424.42 | 864 | 870 | 204.2 |
| C | 3 | 233 | 1095336 | 5359.47 | 864 | 870 | 204.2 |
| C | 14 | 238 | 131803 | 641.16 | 864 | 870 | 204.2 |
| D | 1 | 52 | 317225 | 1415.44 | 908 | 882 | 223.5 |
| D | 12 | 32 | 238164 | 1061.69 | 908 | 882 | 223.5 |
| D | 9 | 1 | 58802 | 259.16 | 908 | 882 | 223.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

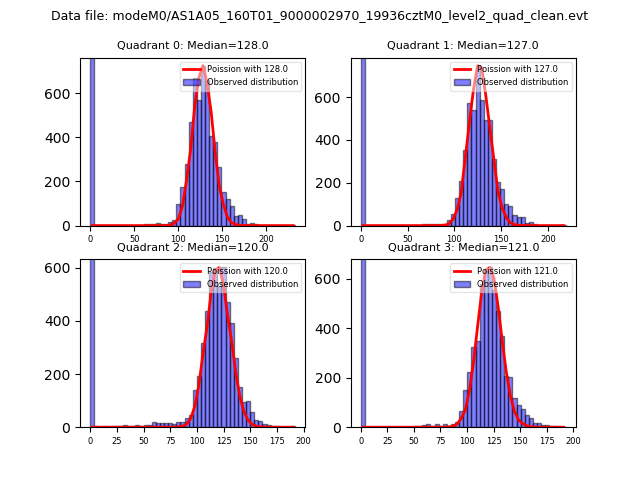

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

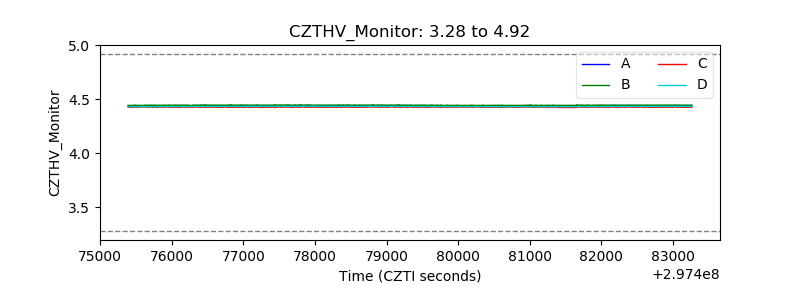

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

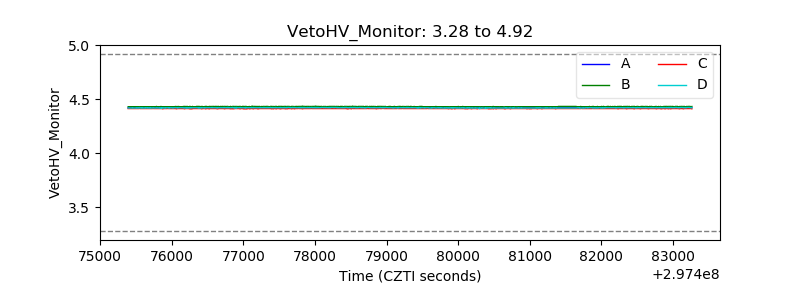

| Veto HV Monitor |  |

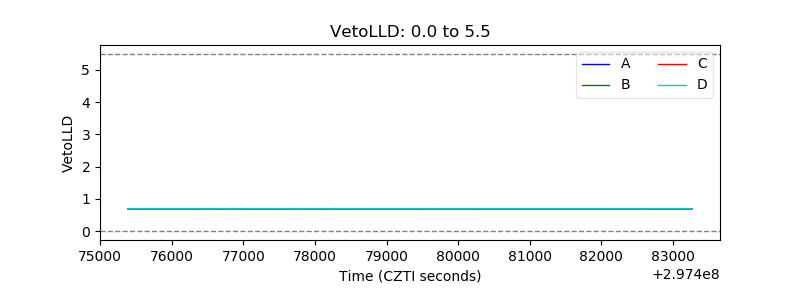

| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

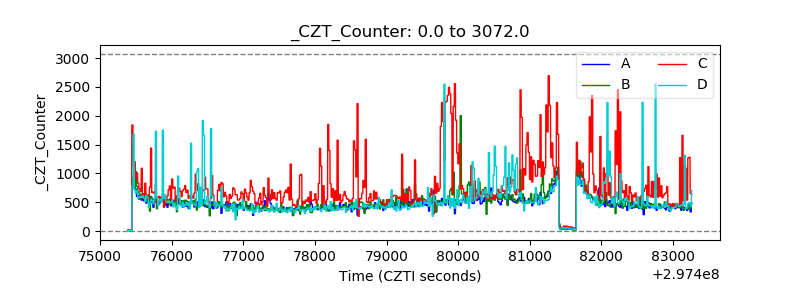

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

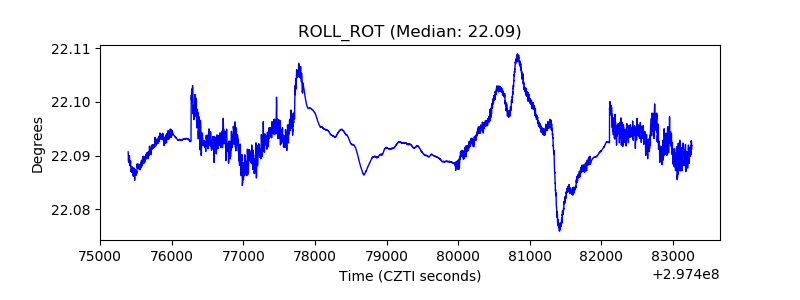

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

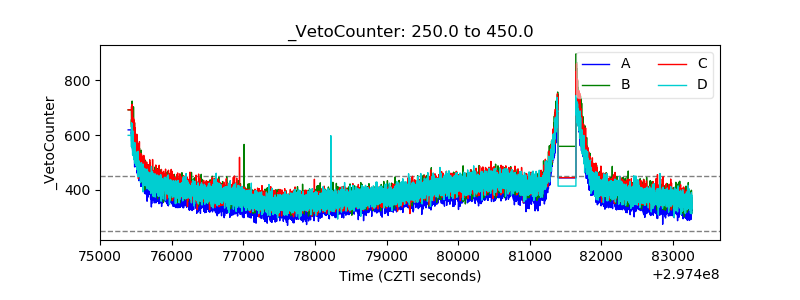

| Veto Counter |  |
