| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_160T01_9000002970_19943cztM0_level2.evt | modeM0/AS1A05_160T01_9000002970_19943cztM0_level2_quad_clean.evt |
| Size (bytes) | 827,778,240 | 123,917,760 |
| Size | 789.4 MB | 118.2 MB |
| Events in quadrant A | 6,258,507 | 766,281 |
| Events in quadrant B | 6,018,626 | 764,211 |
| Events in quadrant C | 6,374,451 | 723,996 |
| Events in quadrant D | 5,663,133 | 726,172 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 228 | 0 |
| B | 0 | 228 | 0 |
| C | 0 | 228 | 0 |
| D | 0 | 228 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25643 | 2 |
| B | 0 | 24650 | 2 |
| C | 0 | 25737 | 2 |
| D | 0 | 24093 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21 | 0 |
| B | 0 | 21 | 0 |
| C | 0 | 21 | 0 |
| D | 0 | 21 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 11148 | 267 | 2.395048% |
| B | 11148 | 222 | 1.991389% |
| C | 11148 | 212 | 1.901686% |
| D | 11148 | 186 | 1.668461% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 13263 | 11148 | 91 | 91 | 0.69% | 0.82% |  |
| B | 13263 | 11148 | 49 | 49 | 0.37% | 0.44% |  |
| C | 13263 | 11148 | 11 | 11 | 0.08% | 0.10% |  |
| D | 13263 | 11148 | 59 | 59 | 0.44% | 0.53% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 238 | 687212 | 2409.93 | 1432 | 1407 | 284.6 |
| A | 10 | 253 | 59819 | 205.26 | 1432 | 1407 | 284.6 |
| A | 0 | 226 | 12378 | 38.55 | 1432 | 1407 | 284.6 |
| B | 7 | 220 | 299027 | 1111.41 | 1413 | 1382 | 267.8 |
| B | 0 | 190 | 40456 | 145.9 | 1413 | 1382 | 267.8 |
| B | 0 | 197 | 38862 | 139.95 | 1413 | 1382 | 267.8 |
| C | 3 | 233 | 546997 | 1745.28 | 1355 | 1368 | 312.6 |
| C | 14 | 238 | 211974 | 673.66 | 1355 | 1368 | 312.6 |
| C | 9 | 221 | 179181 | 568.76 | 1355 | 1368 | 312.6 |
| D | 1 | 52 | 286069 | 837.08 | 1396 | 1355 | 340.1 |
| D | 2 | 234 | 50264 | 143.8 | 1396 | 1355 | 340.1 |
| D | 12 | 254 | 36373 | 102.96 | 1396 | 1355 | 340.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

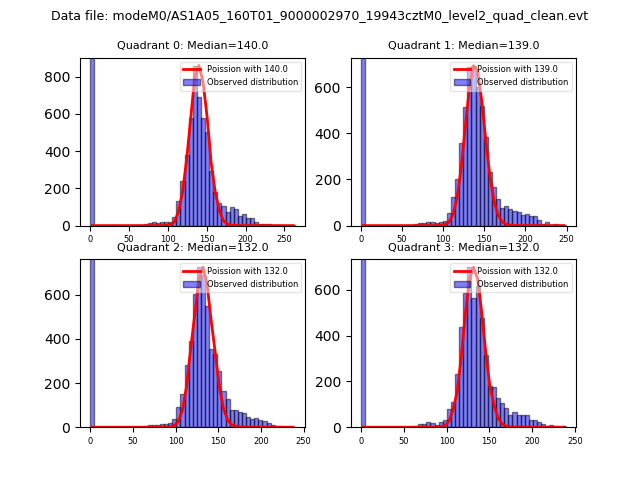

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

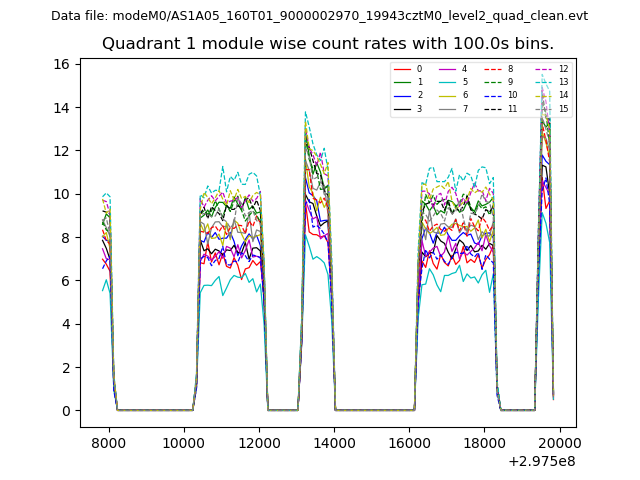

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

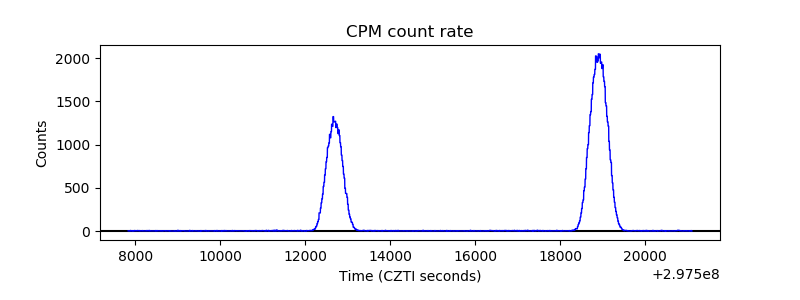

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

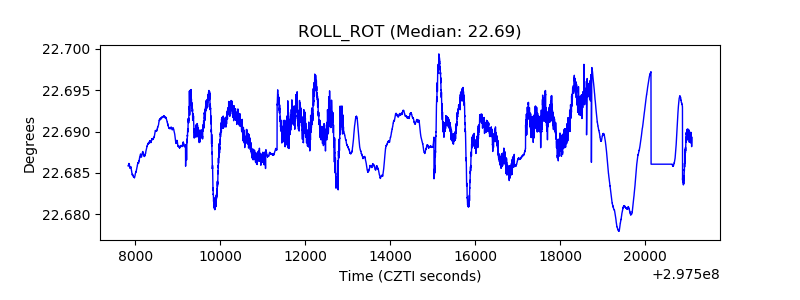

| _ROLL_ROT |  |

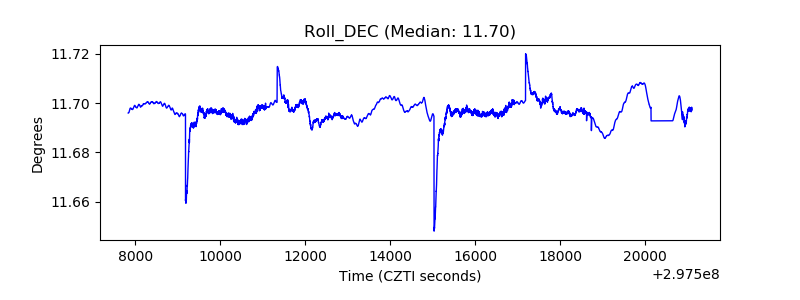

| _Roll_DEC |  |
| _Roll_RA |  |

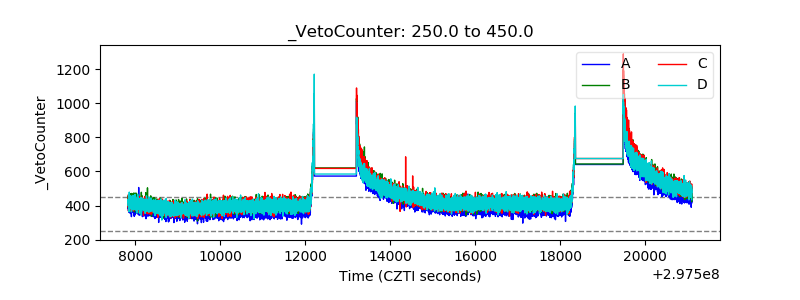

| Veto Counter |  |
