| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_227T01_9000002966_19926cztM0_level2.evt | modeM0/AS1A05_227T01_9000002966_19926cztM0_level2_quad_clean.evt |
| Size (bytes) | 179,228,160 | 38,289,600 |
| Size | 170.9 MB | 36.5 MB |
| Events in quadrant A | 1,038,709 | 258,542 |
| Events in quadrant B | 1,102,428 | 260,971 |
| Events in quadrant C | 1,969,227 | 239,193 |
| Events in quadrant D | 1,172,640 | 248,093 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 44 | 0 |
| B | 0 | 44 | 0 |
| C | 0 | 44 | 0 |
| D | 0 | 44 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4335 | 1 |
| B | 0 | 4484 | 1 |
| C | 0 | 7322 | 1 |
| D | 0 | 4832 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 2101 | 59 | 2.808187% |
| B | 2101 | 61 | 2.903379% |
| C | 2101 | 209 | 9.947644% |
| D | 2101 | 63 | 2.998572% |

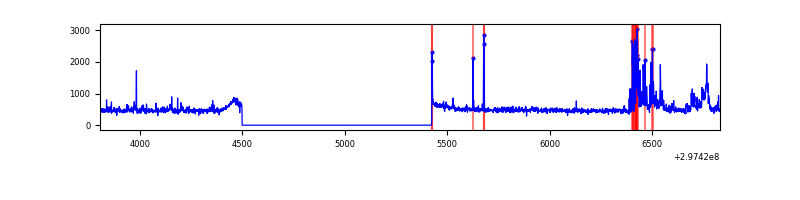

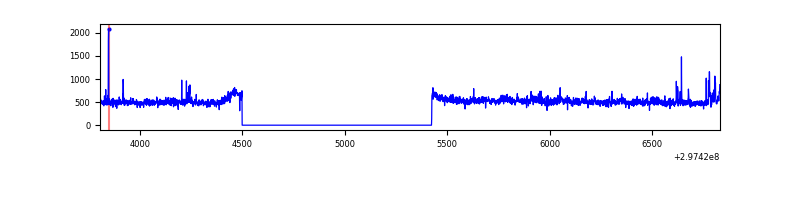

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 3026 | 2101 | 0 | 0 | 0.00% | 0.00% |  |
| B | 3026 | 2101 | 1 | 1 | 0.03% | 0.05% |  |
| C | 3026 | 2101 | 25 | 25 | 0.83% | 1.19% |  |
| D | 3026 | 2101 | 20 | 20 | 0.66% | 0.95% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 2375 | 37.75 | 270 | 263 | 55.9 |
| A | 3 | 137 | 2230 | 35.16 | 270 | 263 | 55.9 |
| A | 12 | 194 | 1989 | 30.85 | 270 | 263 | 55.9 |
| B | 0 | 189 | 14119 | 259.25 | 267 | 260 | 53.5 |
| B | 3 | 112 | 10063 | 183.38 | 267 | 260 | 53.5 |
| B | 4 | 216 | 7869 | 142.33 | 267 | 260 | 53.5 |
| C | 9 | 221 | 839263 | 14063.5 | 247 | 248 | 59.7 |
| C | 3 | 233 | 71868 | 1200.49 | 247 | 248 | 59.7 |
| C | 14 | 238 | 38875 | 647.46 | 247 | 248 | 59.7 |
| D | 12 | 32 | 131325 | 2018.5 | 258 | 250 | 64.9 |
| D | 12 | 33 | 22067 | 335.97 | 258 | 250 | 64.9 |
| D | 7 | 238 | 18407 | 279.61 | 258 | 250 | 64.9 |

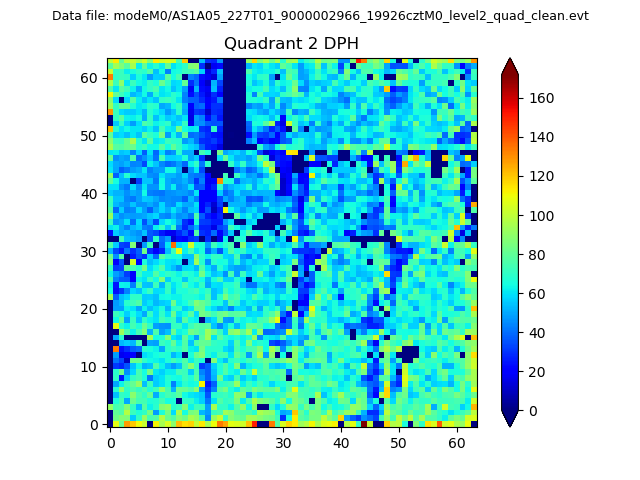

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

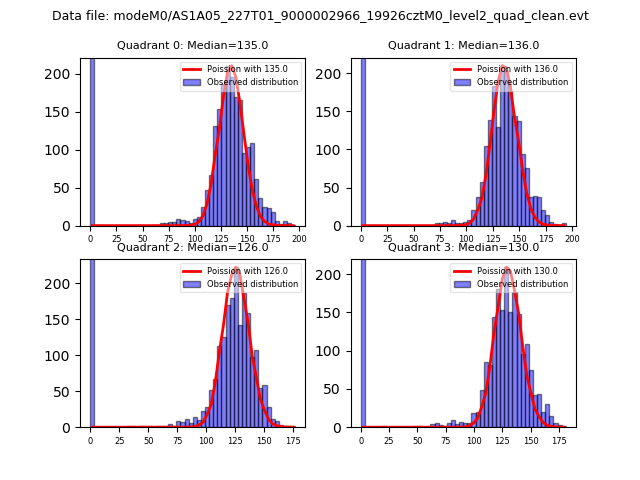

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

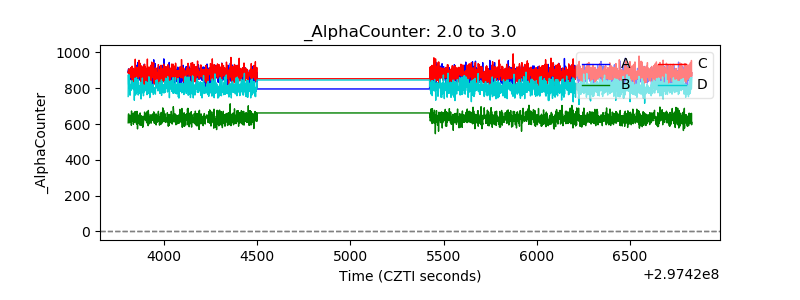

| Alpha Counter |  |
| _CPM_Rate |  |

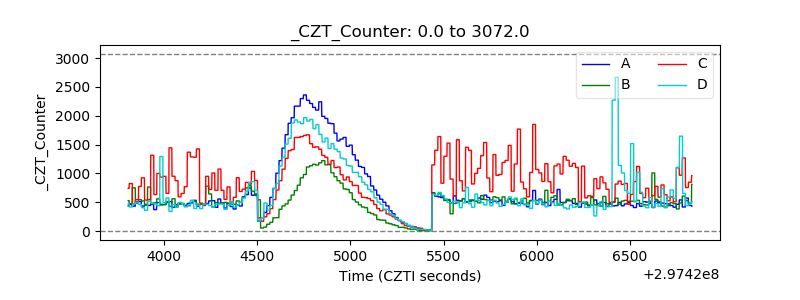

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

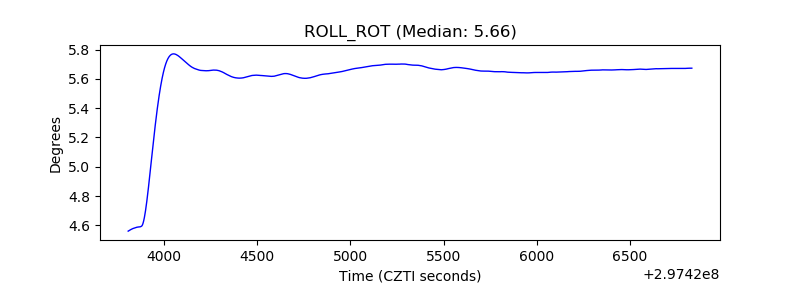

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
