| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_227T01_9000002966_19929cztM0_level2.evt | modeM0/AS1A05_227T01_9000002966_19929cztM0_level2_quad_clean.evt |
| Size (bytes) | 355,322,880 | 49,628,160 |
| Size | 338.9 MB | 47.3 MB |
| Events in quadrant A | 1,810,854 | 325,475 |
| Events in quadrant B | 2,072,642 | 323,066 |
| Events in quadrant C | 3,366,231 | 292,028 |
| Events in quadrant D | 3,259,428 | 300,018 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 74 | 0 |
| B | 0 | 74 | 0 |
| C | 0 | 74 | 0 |
| D | 0 | 74 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7678 | 1 |
| B | 0 | 8476 | 1 |
| C | 0 | 12654 | 1 |
| D | 0 | 12082 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 1 | 140634162604936 | 46 |
| B | 1 | -1 | -1 |
| C | 1 | -1 | -1 |
| D | 1 | -1 | -1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 3702 | 7 | 0.189087% |
| B | 3702 | 17 | 0.459211% |
| C | 3702 | 280 | 7.563479% |
| D | 3702 | 149 | 4.024851% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

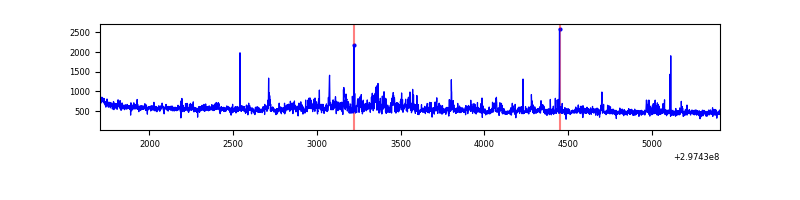

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 3702 | 3702 | 0 | 0 | 0.00% | 0.00% |  |
| B | 3702 | 3702 | 2 | 2 | 0.05% | 0.05% |  |
| C | 3702 | 3702 | 156 | 156 | 4.21% | 4.21% |  |
| D | 3702 | 3702 | 166 | 166 | 4.48% | 4.48% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 4171 | 38.8 | 469 | 458 | 95.7 |
| A | 12 | 194 | 3432 | 31.08 | 469 | 458 | 95.7 |
| A | 3 | 137 | 3178 | 28.42 | 469 | 458 | 95.7 |
| B | 0 | 189 | 121696 | 1393.21 | 461 | 451 | 87.0 |
| B | 0 | 197 | 33799 | 383.2 | 461 | 451 | 87.0 |
| B | 4 | 216 | 31300 | 354.48 | 461 | 451 | 87.0 |
| C | 3 | 233 | 708167 | 7109.48 | 429 | 432 | 99.5 |
| C | 4 | 254 | 635285 | 6377.35 | 429 | 432 | 99.5 |
| C | 9 | 221 | 257879 | 2586.16 | 429 | 432 | 99.5 |
| D | 7 | 38 | 1005991 | 9134.48 | 452 | 439 | 110.1 |
| D | 1 | 52 | 375209 | 3404.43 | 452 | 439 | 110.1 |
| D | 7 | 238 | 74383 | 671.71 | 452 | 439 | 110.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

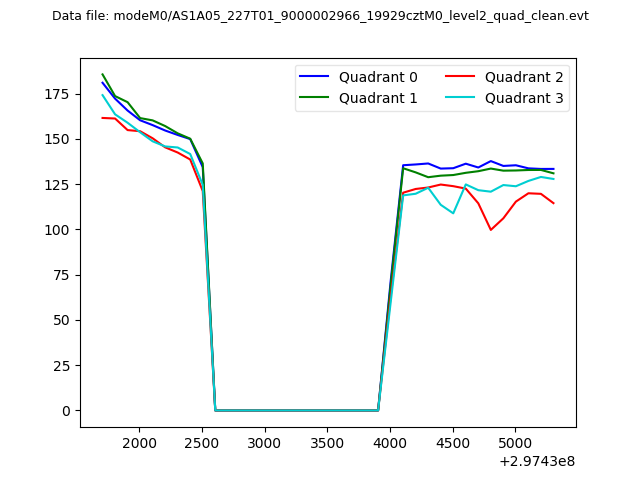

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

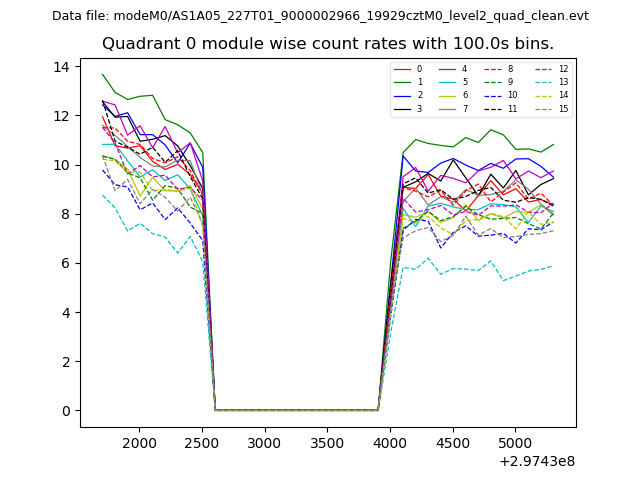

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

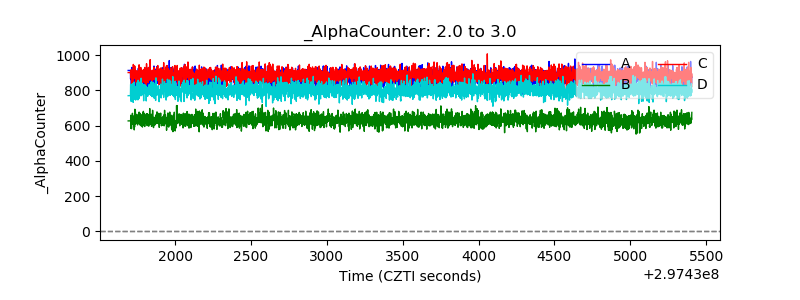

| Alpha Counter |  |
| _CPM_Rate |  |

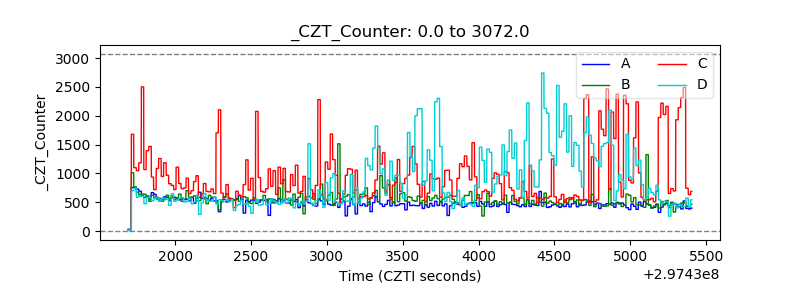

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

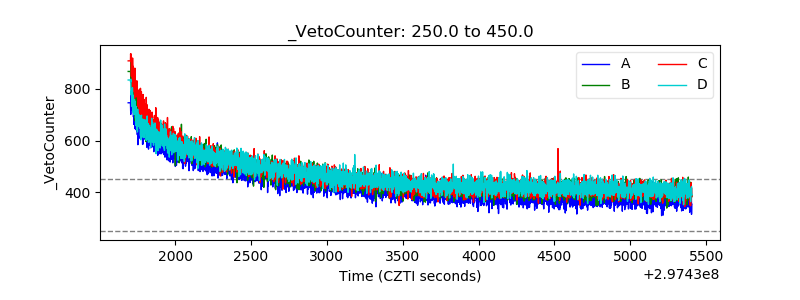

| Veto Counter |  |
