| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C04_005T01_9000002976_19968cztM0_level2.evt | modeM0/AS1C04_005T01_9000002976_19968cztM0_level2_quad_clean.evt |
| Size (bytes) | 803,808,000 | 78,134,400 |
| Size | 766.6 MB | 74.5 MB |
| Events in quadrant A | 13,159,881 | 266,980 |
| Events in quadrant B | 3,246,863 | 562,867 |
| Events in quadrant C | 3,620,923 | 536,084 |
| Events in quadrant D | 3,862,907 | 532,460 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 43670 | 1 |
| B | 0 | 13954 | 1 |
| C | 0 | 14925 | 1 |
| D | 0 | 16449 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 0 |
| B | 0 | 7 | 0 |
| C | 0 | 7 | 0 |
| D | 0 | 7 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6685 | 4901 | 73.313388% |
| B | 6685 | 47 | 0.703067% |
| C | 6685 | 100 | 1.495886% |
| D | 6685 | 120 | 1.795064% |

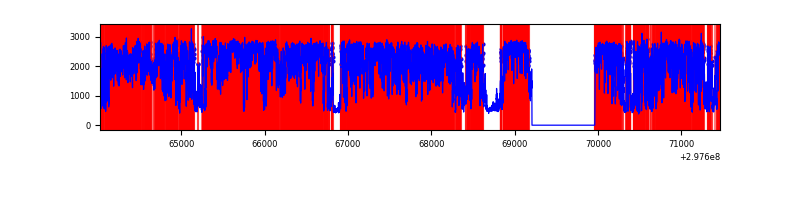

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7439 | 6684 | 3837 | 3837 | 51.58% | 57.41% |  |
| B | 7440 | 6685 | 3 | 3 | 0.04% | 0.04% |  |
| C | 7440 | 6686 | 25 | 25 | 0.34% | 0.37% |  |
| D | 7440 | 6685 | 82 | 82 | 1.10% | 1.23% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 238 | 11578350 | 151452.93 | 372 | 365 | 76.4 |
| A | 14 | 254 | 139655 | 1822.07 | 372 | 365 | 76.4 |
| A | 13 | 254 | 3374 | 39.36 | 372 | 365 | 76.4 |
| B | 7 | 220 | 71227 | 461.08 | 790 | 772 | 152.8 |
| B | 0 | 230 | 24863 | 157.66 | 790 | 772 | 152.8 |
| B | 4 | 171 | 21504 | 135.68 | 790 | 772 | 152.8 |
| C | 9 | 221 | 397635 | 2234.38 | 755 | 762 | 177.6 |
| C | 3 | 233 | 127326 | 712.55 | 755 | 762 | 177.6 |
| C | 14 | 238 | 115805 | 647.69 | 755 | 762 | 177.6 |
| D | 7 | 238 | 562347 | 2987.62 | 767 | 744 | 188.0 |
| D | 1 | 52 | 356272 | 1891.34 | 767 | 744 | 188.0 |
| D | 12 | 218 | 26972 | 139.53 | 767 | 744 | 188.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

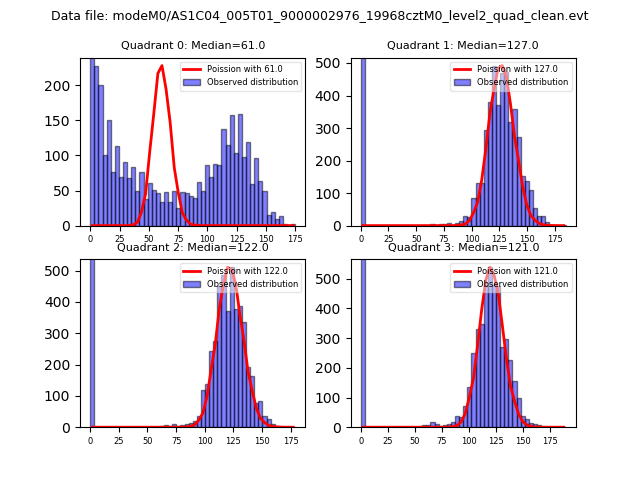

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

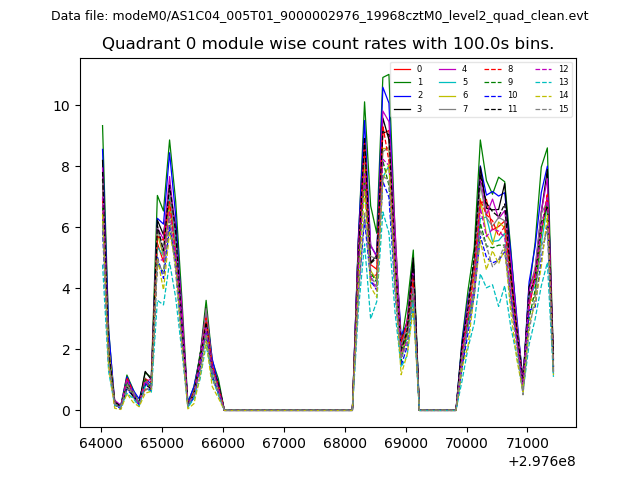

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

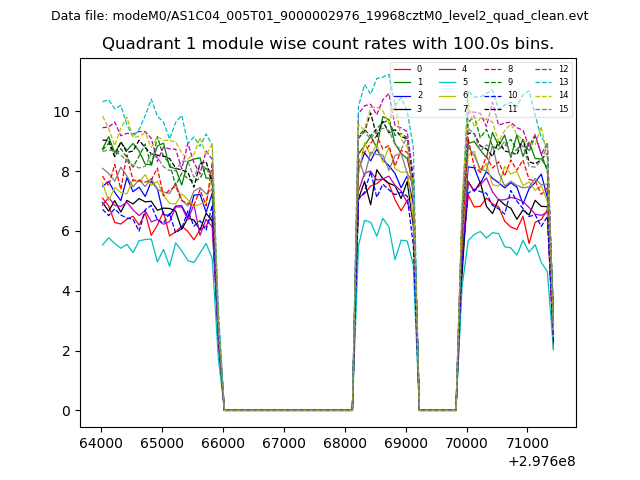

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

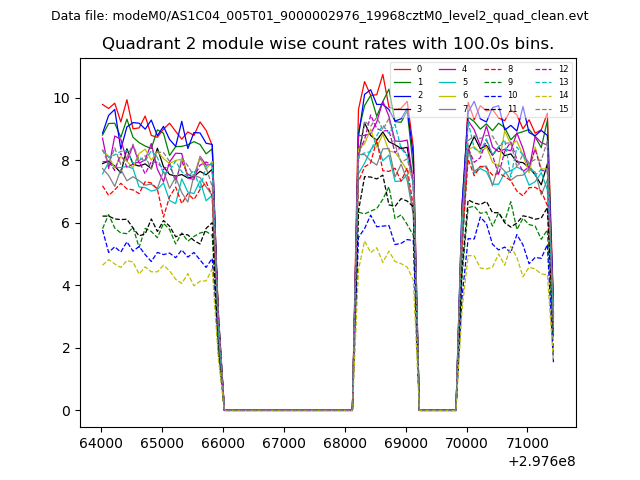

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |

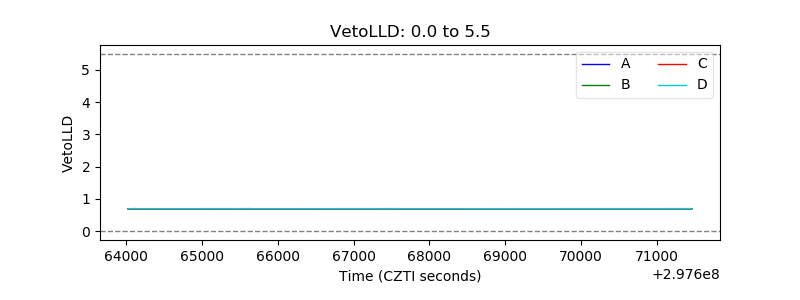

| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

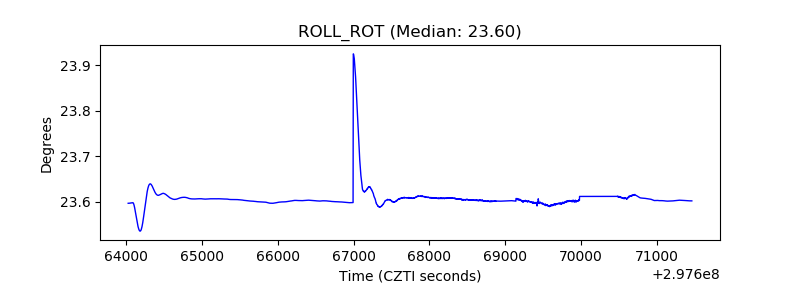

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
