| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C04_005T01_9000002976_19975cztM0_level2.evt | modeM0/AS1C04_005T01_9000002976_19975cztM0_level2_quad_clean.evt |
| Size (bytes) | 768,044,160 | 61,744,320 |
| Size | 732.5 MB | 58.9 MB |
| Events in quadrant A | 12,589,064 | 176,181 |
| Events in quadrant B | 3,353,969 | 441,255 |
| Events in quadrant C | 3,587,135 | 419,204 |
| Events in quadrant D | 3,333,584 | 422,501 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 41437 | 1 |
| B | 0 | 13618 | 1 |
| C | 0 | 14531 | 1 |
| D | 0 | 13496 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 120 | 0 |
| B | 0 | 120 | 0 |
| C | 0 | 120 | 0 |
| D | 0 | 118 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5851 | 5073 | 86.703128% |
| B | 5852 | 122 | 2.084757% |
| C | 5852 | 191 | 3.263841% |
| D | 5851 | 92 | 1.572381% |

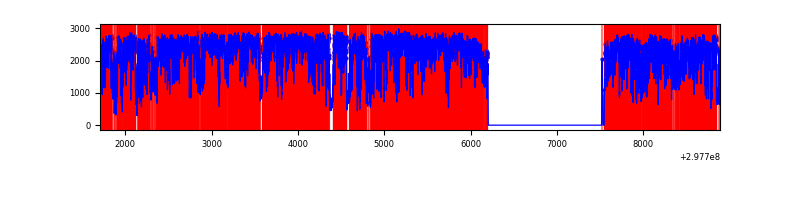

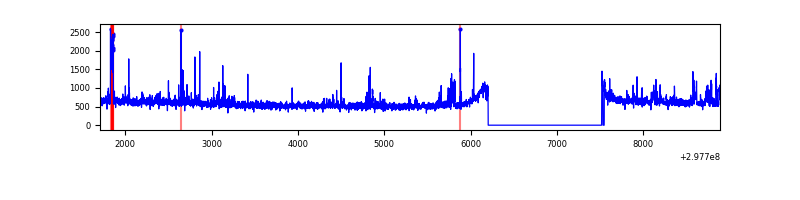

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7181 | 5852 | 4035 | 4035 | 56.19% | 68.95% |  |
| B | 7182 | 5852 | 12 | 12 | 0.17% | 0.21% |  |
| C | 7182 | 5852 | 13 | 13 | 0.18% | 0.22% |  |
| D | 7181 | 5852 | 10 | 10 | 0.14% | 0.17% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 238 | 11273128 | 176486.29 | 316 | 311 | 63.9 |
| A | 14 | 254 | 93487 | 1458.76 | 316 | 311 | 63.9 |
| A | 0 | 226 | 2599 | 35.82 | 316 | 311 | 63.9 |
| B | 7 | 220 | 97693 | 631.93 | 822 | 805 | 153.3 |
| B | 12 | 111 | 17499 | 108.88 | 822 | 805 | 153.3 |
| B | 11 | 111 | 15280 | 94.41 | 822 | 805 | 153.3 |
| C | 9 | 221 | 299529 | 1643.25 | 792 | 802 | 181.8 |
| C | 14 | 238 | 126298 | 690.34 | 792 | 802 | 181.8 |
| C | 3 | 233 | 50817 | 275.13 | 792 | 802 | 181.8 |
| D | 12 | 218 | 108913 | 548.76 | 816 | 796 | 197.0 |
| D | 1 | 52 | 73946 | 371.28 | 816 | 796 | 197.0 |
| D | 7 | 238 | 41852 | 208.39 | 816 | 796 | 197.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

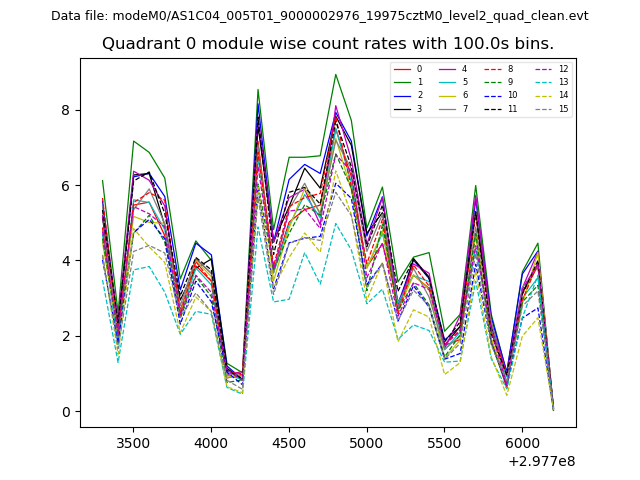

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

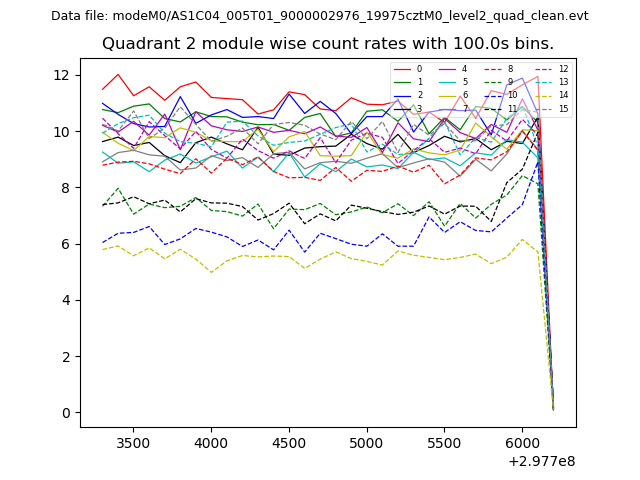

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

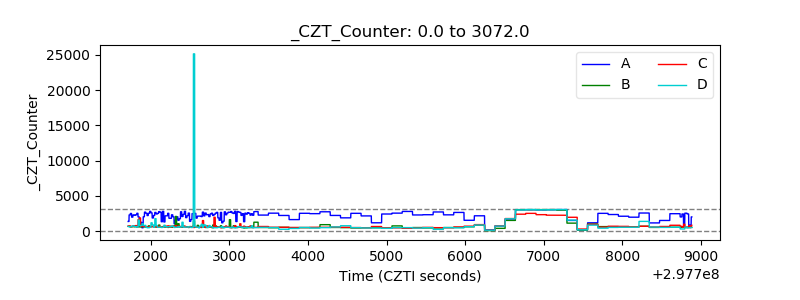

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

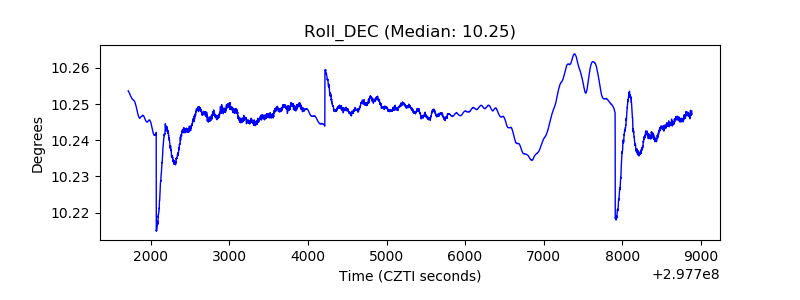

| _Roll_DEC |  |

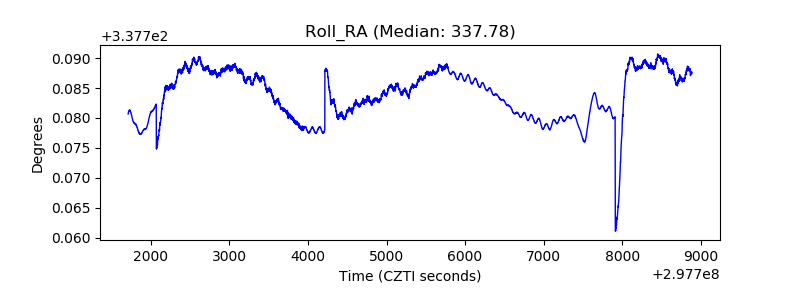

| _Roll_RA |  |

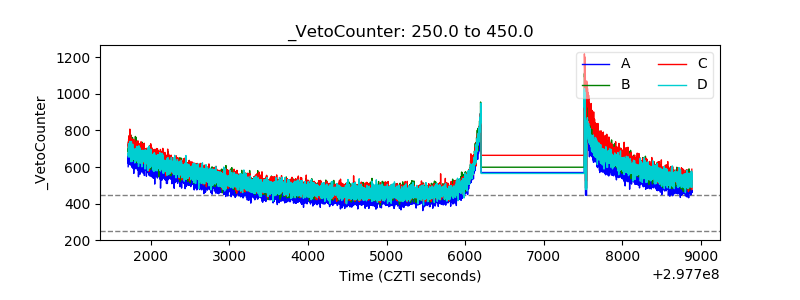

| Veto Counter |  |
