| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_022T08_9000002980_19986cztM0_level2.evt | modeM0/AS1A05_022T08_9000002980_19986cztM0_level2_quad_clean.evt |
| Size (bytes) | 612,362,880 | 85,337,280 |
| Size | 584.0 MB | 81.4 MB |
| Events in quadrant A | 5,219,314 | 532,008 |
| Events in quadrant B | 3,506,624 | 558,056 |
| Events in quadrant C | 3,911,436 | 525,298 |
| Events in quadrant D | 5,469,708 | 517,031 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 14 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19744 | 3 |
| B | 0 | 14376 | 2 |
| C | 0 | 15757 | 2 |
| D | 0 | 20707 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6479 | 791 | 12.208674% |
| B | 6479 | 78 | 1.203889% |
| C | 6479 | 272 | 4.198179% |
| D | 6479 | 572 | 8.828523% |

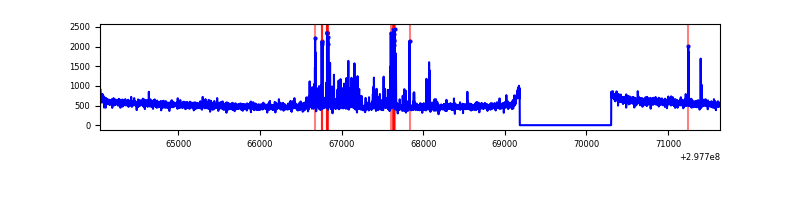

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7600 | 6479 | 547 | 547 | 7.20% | 8.44% |  |
| B | 7600 | 6479 | 20 | 20 | 0.26% | 0.31% |  |
| C | 7600 | 6479 | 98 | 98 | 1.29% | 1.51% |  |
| D | 7600 | 6479 | 437 | 437 | 5.75% | 6.74% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 238 | 1985573 | 12273.25 | 807 | 793 | 161.7 |
| A | 13 | 252 | 76179 | 466.16 | 807 | 793 | 161.7 |
| A | 14 | 254 | 56634 | 345.3 | 807 | 793 | 161.7 |
| B | 7 | 220 | 164447 | 1030.32 | 839 | 819 | 158.8 |
| B | 12 | 111 | 18955 | 114.2 | 839 | 819 | 158.8 |
| B | 11 | 111 | 16682 | 99.88 | 839 | 819 | 158.8 |
| C | 0 | 207 | 598823 | 3233.44 | 795 | 802 | 184.9 |
| C | 14 | 238 | 124395 | 668.25 | 795 | 802 | 184.9 |
| C | 3 | 233 | 91843 | 492.25 | 795 | 802 | 184.9 |
| D | 1 | 52 | 2375573 | 12213.9 | 795 | 771 | 194.4 |
| D | 7 | 96 | 28649 | 143.38 | 795 | 771 | 194.4 |
| D | 12 | 218 | 23879 | 118.85 | 795 | 771 | 194.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

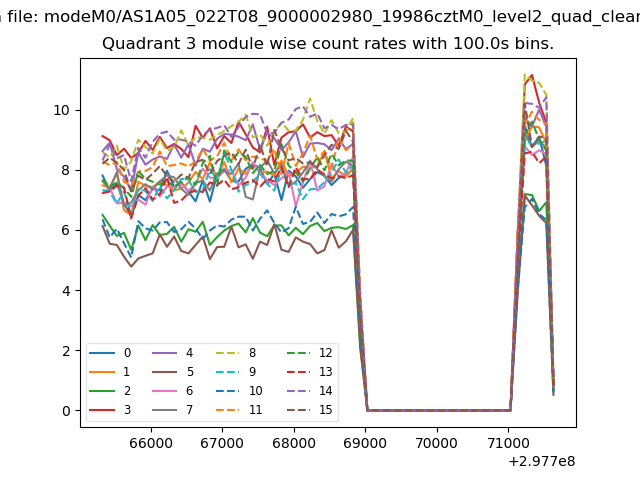

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

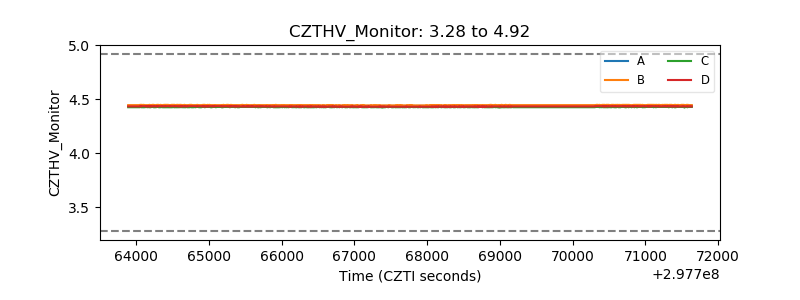

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

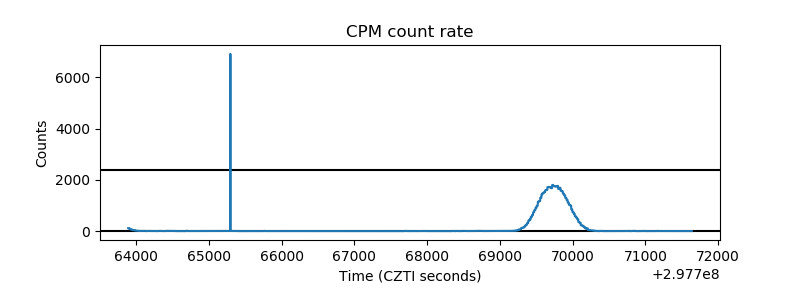

| _CPM_Rate |  |

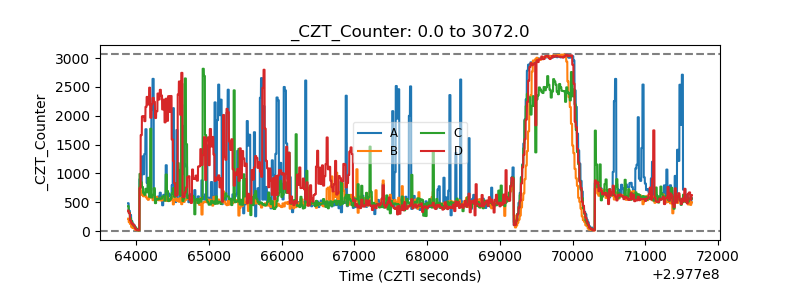

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

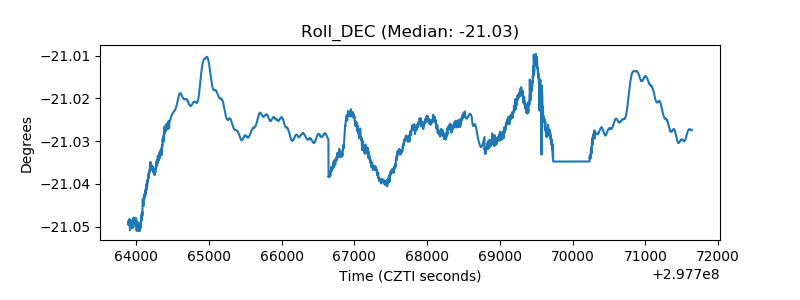

| _Roll_DEC |  |
| _Roll_RA |  |

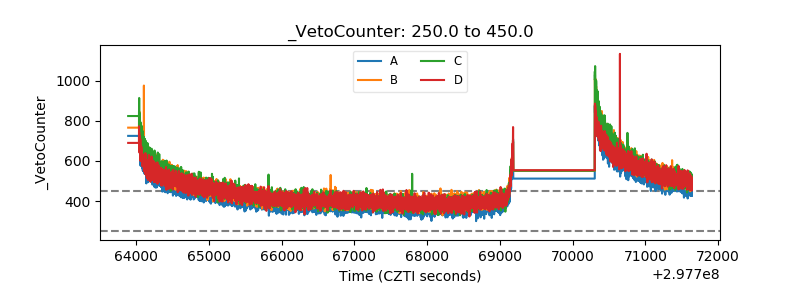

| Veto Counter |  |
