| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_022T08_9000002980_19987cztM0_level2.evt | modeM0/AS1A05_022T08_9000002980_19987cztM0_level2_quad_clean.evt |
| Size (bytes) | 341,354,880 | 63,596,160 |
| Size | 325.5 MB | 60.7 MB |
| Events in quadrant A | 3,469,854 | 404,277 |
| Events in quadrant B | 2,204,355 | 431,602 |
| Events in quadrant C | 2,145,366 | 407,741 |
| Events in quadrant D | 2,252,933 | 406,805 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 78 | 0 |
| B | 0 | 78 | 0 |
| C | 0 | 78 | 0 |
| D | 0 | 78 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 1 | 140647498656648 | 46 |
| B | 1 | -1 | -1 |
| C | 1 | -1 | -1 |
| D | 1 | -1 | -1 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12920 | 1 |
| B | 0 | 8972 | 1 |
| C | 0 | 8812 | 1 |
| D | 0 | 9129 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 3895 | 554 | 14.223363% |
| B | 3895 | 57 | 1.463415% |
| C | 3895 | 76 | 1.951220% |
| D | 3895 | 27 | 0.693196% |

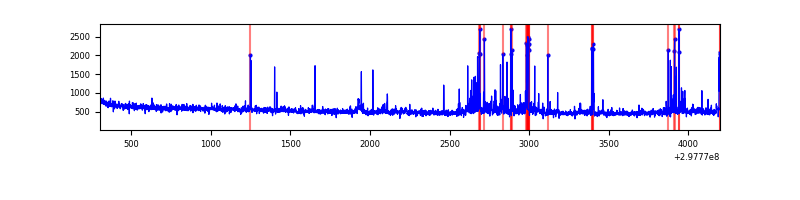

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 3895 | 3895 | 472 | 472 | 12.12% | 12.12% |  |
| B | 3895 | 3895 | 31 | 31 | 0.80% | 0.80% |  |
| C | 3894 | 3894 | 11 | 11 | 0.28% | 0.28% |  |
| D | 3895 | 3895 | 20 | 20 | 0.51% | 0.51% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 238 | 1457237 | 14806.07 | 490 | 480 | 98.4 |
| A | 13 | 252 | 82364 | 832.25 | 490 | 480 | 98.4 |
| A | 14 | 254 | 44768 | 450.13 | 490 | 480 | 98.4 |
| B | 7 | 220 | 118180 | 1222.69 | 506 | 494 | 96.3 |
| B | 4 | 171 | 40061 | 411.08 | 506 | 494 | 96.3 |
| B | 10 | 245 | 39232 | 402.47 | 506 | 494 | 96.3 |
| C | 0 | 207 | 132160 | 1182.53 | 483 | 488 | 111.3 |
| C | 14 | 238 | 77243 | 689.33 | 483 | 488 | 111.3 |
| C | 3 | 233 | 51801 | 460.83 | 483 | 488 | 111.3 |
| D | 1 | 52 | 285640 | 2315.43 | 499 | 483 | 123.2 |
| D | 7 | 238 | 45319 | 364.06 | 499 | 483 | 123.2 |
| D | 2 | 234 | 13933 | 109.21 | 499 | 483 | 123.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file

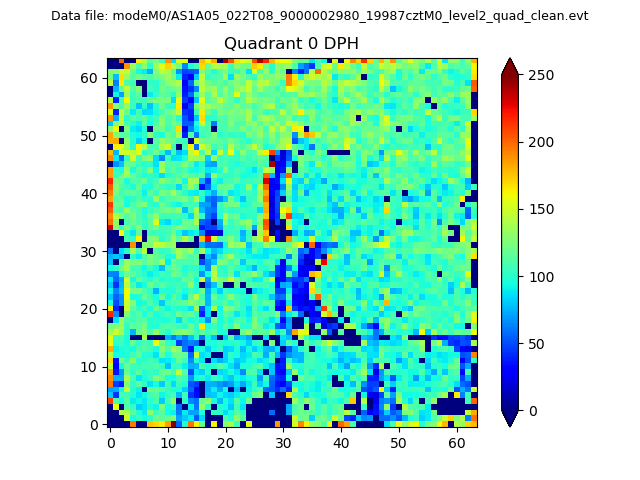

| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

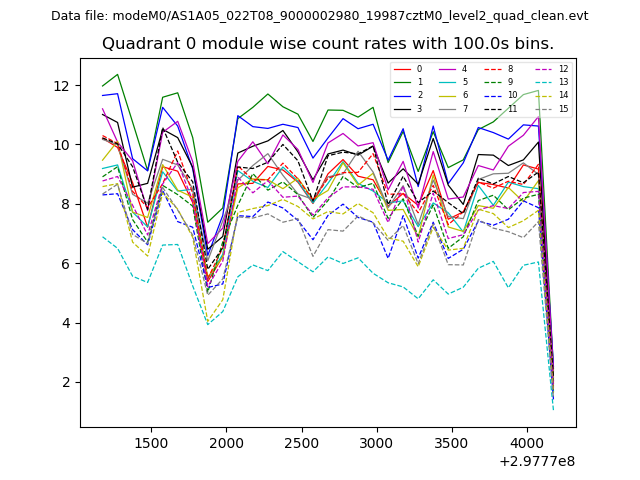

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

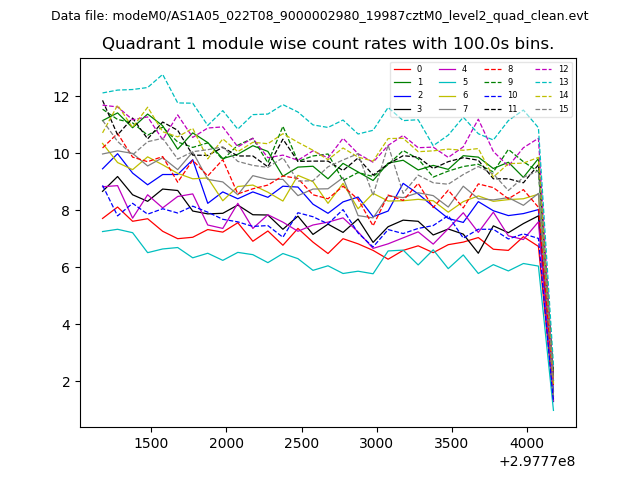

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

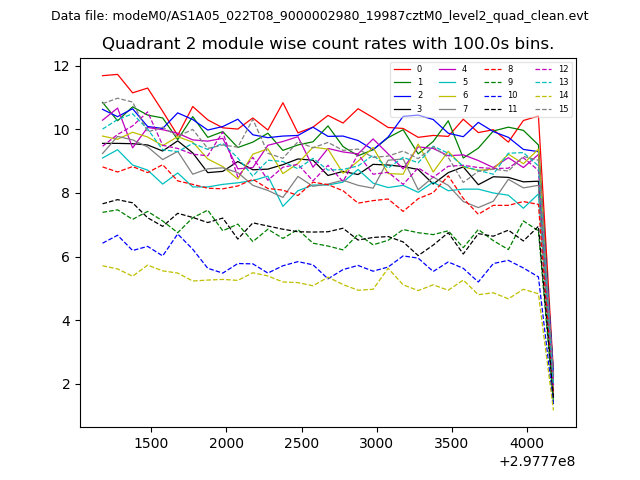

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

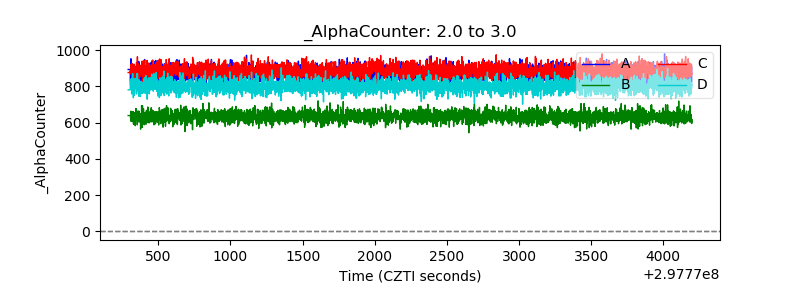

| Alpha Counter |  |

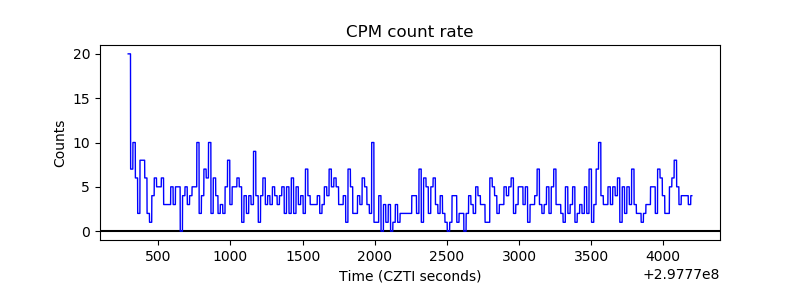

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

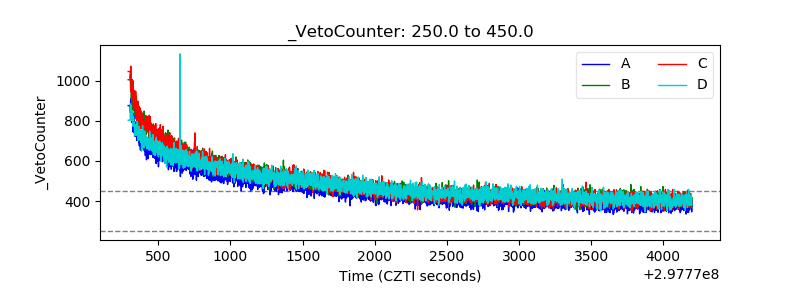

| Veto Counter |  |
