| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C04_001T01_9000002984_20016cztM0_level2.evt | modeM0/AS1C04_001T01_9000002984_20016cztM0_level2_quad_clean.evt |
| Size (bytes) | 515,056,320 | 102,389,760 |
| Size | 491.2 MB | 97.6 MB |
| Events in quadrant A | 3,518,578 | 684,556 |
| Events in quadrant B | 3,578,716 | 679,171 |
| Events in quadrant C | 3,395,515 | 648,614 |
| Events in quadrant D | 4,662,600 | 633,074 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14612 | 2 |
| B | 0 | 14808 | 2 |
| C | 0 | 14047 | 2 |
| D | 0 | 18104 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6533 | 78 | 1.193938% |
| B | 6533 | 92 | 1.408235% |
| C | 6533 | 100 | 1.530690% |
| D | 6533 | 512 | 7.837135% |

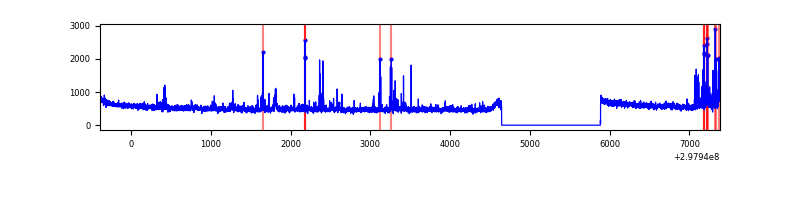

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7773 | 6534 | 12 | 12 | 0.15% | 0.18% |  |
| B | 7773 | 6534 | 16 | 16 | 0.21% | 0.24% |  |
| C | 7773 | 6534 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7773 | 6534 | 349 | 349 | 4.49% | 5.34% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 238 | 163944 | 935.46 | 870 | 853 | 174.3 |
| A | 0 | 226 | 7705 | 39.3 | 870 | 853 | 174.3 |
| A | 5 | 16 | 6717 | 33.63 | 870 | 853 | 174.3 |
| B | 7 | 220 | 115175 | 717.96 | 851 | 831 | 159.3 |
| B | 0 | 190 | 32444 | 198.5 | 851 | 831 | 159.3 |
| B | 4 | 216 | 20486 | 123.41 | 851 | 831 | 159.3 |
| C | 14 | 238 | 130244 | 691.49 | 816 | 824 | 187.2 |
| C | 3 | 233 | 62394 | 328.97 | 816 | 824 | 187.2 |
| C | 0 | 207 | 7080 | 33.43 | 816 | 824 | 187.2 |
| D | 12 | 218 | 708787 | 3617.95 | 813 | 789 | 195.7 |
| D | 7 | 38 | 446339 | 2276.81 | 813 | 789 | 195.7 |
| D | 1 | 52 | 194925 | 992.06 | 813 | 789 | 195.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

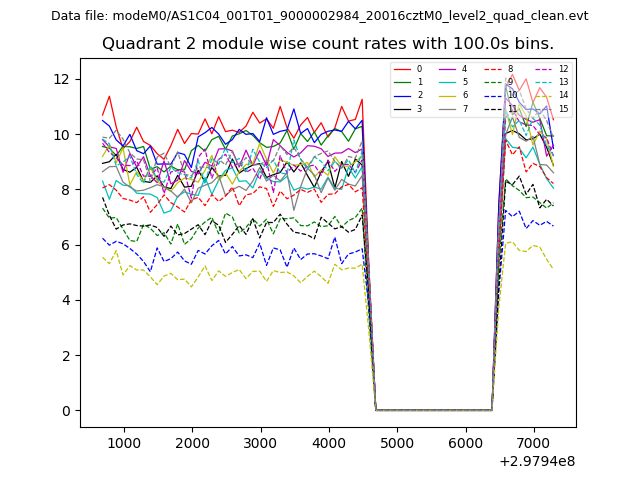

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

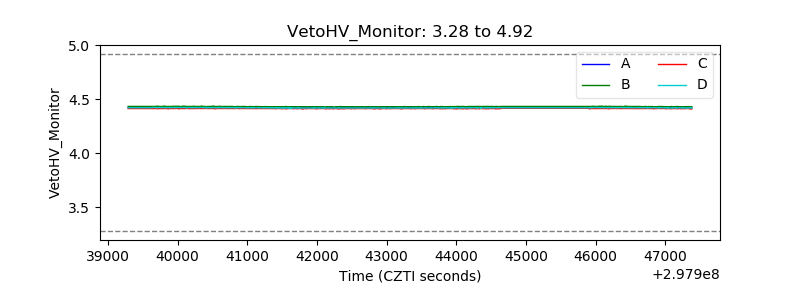

| Veto HV Monitor |  |

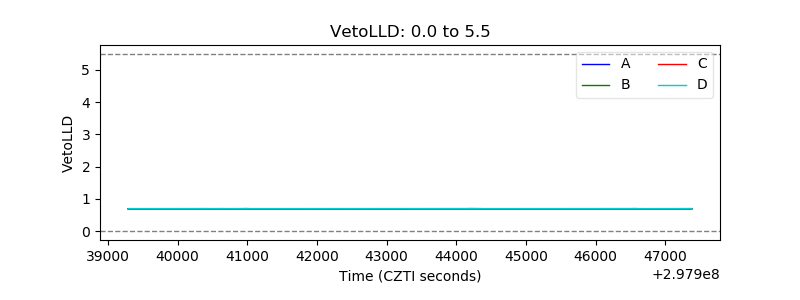

| Veto LLD |  |
| Alpha Counter |  |

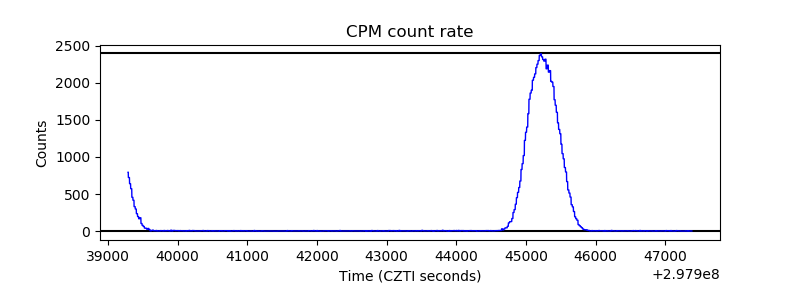

| _CPM_Rate |  |

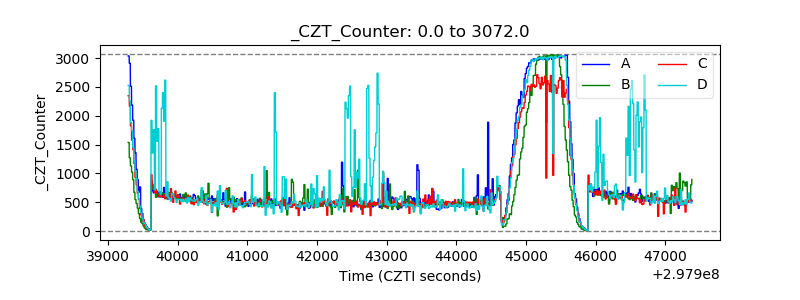

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

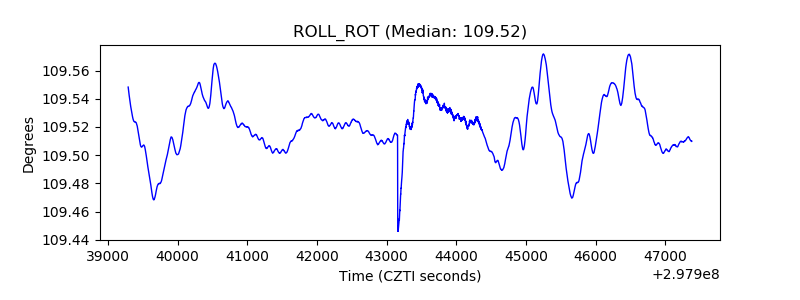

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
