| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C04_001T01_9000002984_20022cztM0_level2.evt | modeM0/AS1C04_001T01_9000002984_20022cztM0_level2_quad_clean.evt |
| Size (bytes) | 624,317,760 | 116,412,480 |
| Size | 595.4 MB | 111.0 MB |
| Events in quadrant A | 4,181,059 | 775,760 |
| Events in quadrant B | 3,858,426 | 777,897 |
| Events in quadrant C | 3,579,004 | 771,389 |
| Events in quadrant D | 6,798,310 | 696,144 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 146 | 0 |
| B | 0 | 146 | 0 |
| C | 0 | 146 | 0 |
| D | 0 | 146 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17244 | 2 |
| B | 0 | 16349 | 3 |
| C | 0 | 15359 | 2 |
| D | 0 | 25315 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7243 | 175 | 2.416126% |
| B | 7243 | 102 | 1.408256% |
| C | 7243 | 123 | 1.698191% |
| D | 7243 | 1158 | 15.987850% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7618 | 7244 | 109 | 109 | 1.43% | 1.50% |  |
| B | 7618 | 7244 | 17 | 17 | 0.22% | 0.23% |  |
| C | 7618 | 7244 | 9 | 9 | 0.12% | 0.12% |  |
| D | 7618 | 7244 | 926 | 926 | 12.16% | 12.78% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 238 | 749701 | 4314.48 | 856 | 838 | 173.6 |
| A | 14 | 254 | 43671 | 246.78 | 856 | 838 | 173.6 |
| A | 5 | 16 | 43611 | 246.43 | 856 | 838 | 173.6 |
| B | 0 | 189 | 147988 | 895.0 | 860 | 836 | 164.4 |
| B | 7 | 220 | 110897 | 669.4 | 860 | 836 | 164.4 |
| B | 0 | 197 | 100630 | 606.96 | 860 | 836 | 164.4 |
| C | 14 | 238 | 130161 | 657.65 | 840 | 844 | 196.6 |
| C | 3 | 233 | 123881 | 625.71 | 840 | 844 | 196.6 |
| C | 0 | 207 | 21396 | 104.52 | 840 | 844 | 196.6 |
| D | 7 | 38 | 2675334 | 13822.0 | 802 | 778 | 193.5 |
| D | 7 | 238 | 317645 | 1637.56 | 802 | 778 | 193.5 |
| D | 2 | 184 | 308310 | 1589.31 | 802 | 778 | 193.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

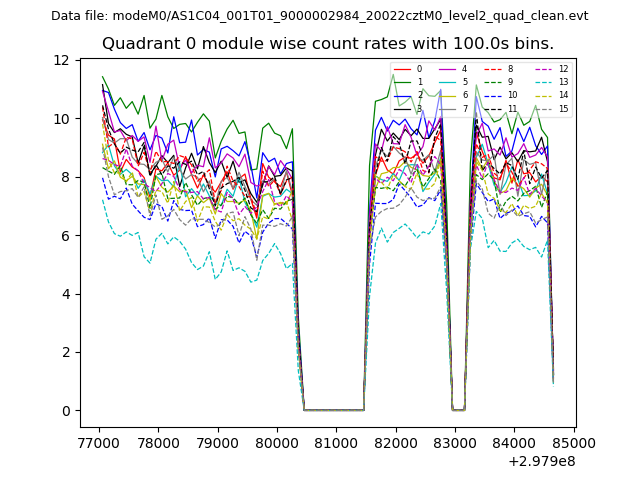

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

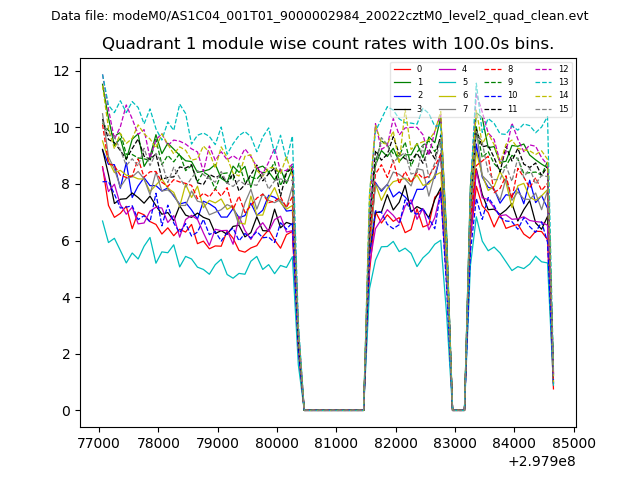

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

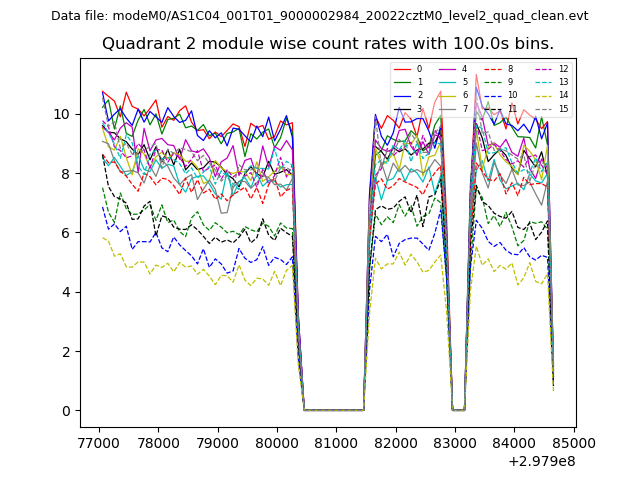

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

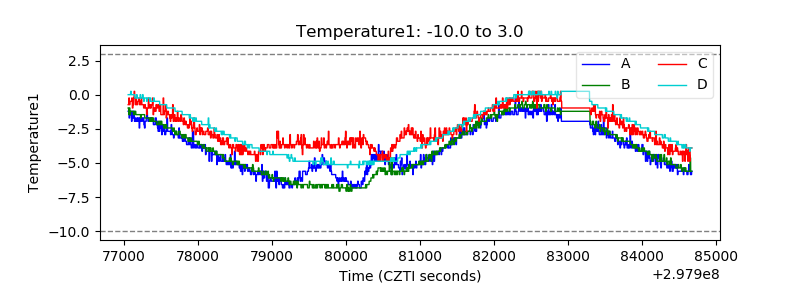

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
