| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_180T01_9000002986_20041cztM0_level2.evt | modeM0/AS1A05_180T01_9000002986_20041cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,251,230,400 | 267,670,080 |
| Size | 1.2 GB | 255.3 MB |
| Events in quadrant A | 9,270,070 | 1,755,186 |
| Events in quadrant B | 8,820,769 | 1,748,271 |
| Events in quadrant C | 8,711,685 | 1,691,997 |
| Events in quadrant D | 9,869,186 | 1,666,673 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 368 | 0 |
| B | 0 | 368 | 0 |
| C | 0 | 368 | 0 |
| D | 0 | 368 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 19 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 39012 | 3 |
| B | 0 | 37475 | 3 |
| C | 0 | 37520 | 3 |
| D | 0 | 41609 | 3 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 18066 | 336 | 1.859847% |
| B | 18067 | 165 | 0.913267% |
| C | 18067 | 241 | 1.333924% |
| D | 18067 | 368 | 2.036863% |

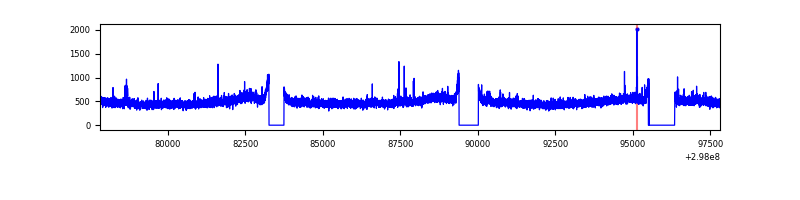

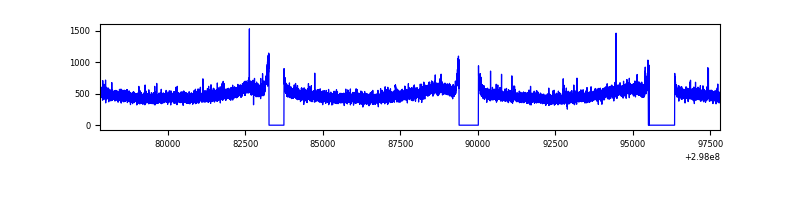

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 20011 | 18070 | 140 | 140 | 0.70% | 0.77% |  |
| B | 20012 | 18071 | 1 | 1 | 0.00% | 0.01% |  |
| C | 20012 | 18071 | 0 | 0 | 0.00% | 0.00% |  |
| D | 20012 | 18071 | 202 | 202 | 1.01% | 1.12% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 238 | 518412 | 1152.99 | 2216 | 2176 | 447.7 |
| A | 14 | 254 | 188761 | 416.73 | 2216 | 2176 | 447.7 |
| A | 11 | 29 | 22031 | 44.35 | 2216 | 2176 | 447.7 |
| B | 0 | 198 | 76261 | 176.31 | 2208 | 2160 | 420.3 |
| B | 12 | 111 | 50979 | 116.16 | 2208 | 2160 | 420.3 |
| B | 11 | 111 | 44273 | 100.2 | 2208 | 2160 | 420.3 |
| C | 14 | 238 | 336986 | 667.96 | 2132 | 2155 | 501.3 |
| C | 4 | 254 | 38282 | 72.07 | 2132 | 2155 | 501.3 |
| C | 3 | 233 | 17956 | 31.52 | 2132 | 2155 | 501.3 |
| D | 1 | 52 | 1696518 | 3235.9 | 2153 | 2099 | 523.6 |
| D | 2 | 234 | 81619 | 151.86 | 2153 | 2099 | 523.6 |
| D | 8 | 195 | 29471 | 52.27 | 2153 | 2099 | 523.6 |

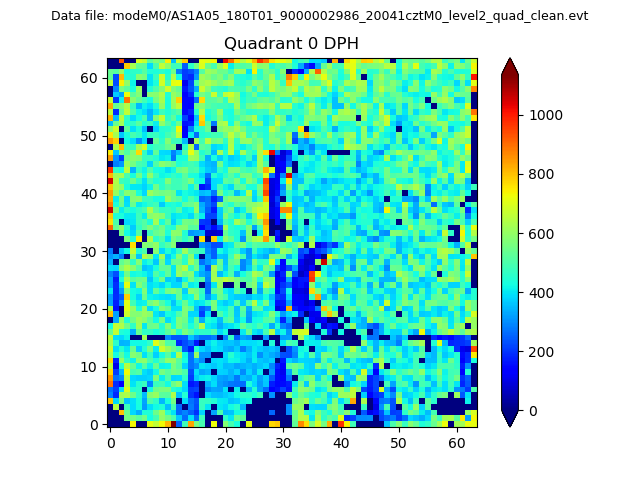

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

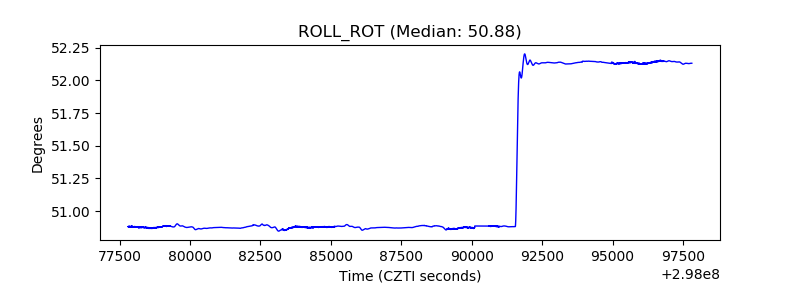

| _ROLL_ROT |  |

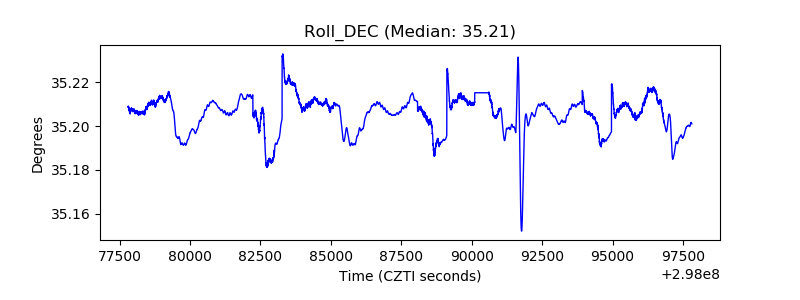

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
