| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_117T01_9000002988_20061cztM0_level2.evt | modeM0/AS1T03_117T01_9000002988_20061cztM0_level2_quad_clean.evt |
| Size (bytes) | 497,237,760 | 67,138,560 |
| Size | 474.2 MB | 64.0 MB |
| Events in quadrant A | 3,655,170 | 411,410 |
| Events in quadrant B | 3,538,414 | 412,620 |
| Events in quadrant C | 3,502,807 | 388,939 |
| Events in quadrant D | 3,944,955 | 389,856 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24 | 0 |
| B | 0 | 25 | 0 |
| C | 0 | 25 | 0 |
| D | 0 | 25 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14824 | 2 |
| B | 0 | 14399 | 2 |
| C | 0 | 14117 | 2 |
| D | 0 | 15583 | 3 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6163 | 114 | 1.849748% |
| B | 6163 | 113 | 1.833523% |
| C | 6163 | 113 | 1.833523% |
| D | 6162 | 122 | 1.979877% |

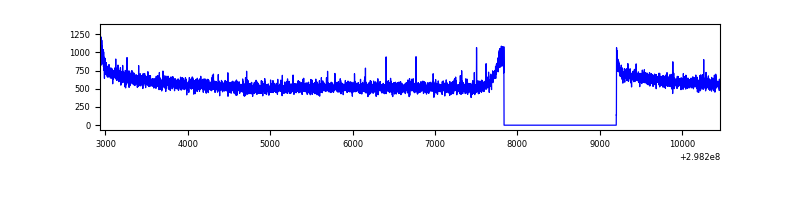

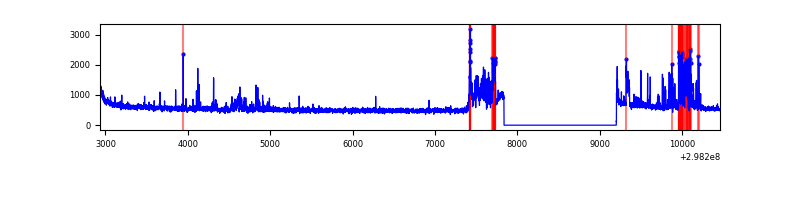

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7528 | 6164 | 12 | 12 | 0.16% | 0.19% |  |
| B | 7528 | 6164 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7528 | 6164 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7527 | 6163 | 57 | 57 | 0.76% | 0.92% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 254 | 87496 | 485.73 | 911 | 899 | 178.3 |
| A | 14 | 238 | 34224 | 186.92 | 911 | 899 | 178.3 |
| A | 15 | 191 | 28412 | 154.32 | 911 | 899 | 178.3 |
| B | 0 | 198 | 25810 | 149.72 | 896 | 879 | 166.5 |
| B | 12 | 111 | 19260 | 110.39 | 896 | 879 | 166.5 |
| B | 11 | 111 | 17323 | 98.75 | 896 | 879 | 166.5 |
| C | 14 | 238 | 138336 | 697.87 | 858 | 868 | 197.0 |
| C | 4 | 175 | 11168 | 52.29 | 858 | 868 | 197.0 |
| C | 4 | 254 | 6839 | 30.31 | 858 | 868 | 197.0 |
| D | 1 | 52 | 555981 | 2649.89 | 878 | 856 | 209.5 |
| D | 1 | 20 | 41379 | 193.44 | 878 | 856 | 209.5 |
| D | 12 | 218 | 29804 | 138.18 | 878 | 856 | 209.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

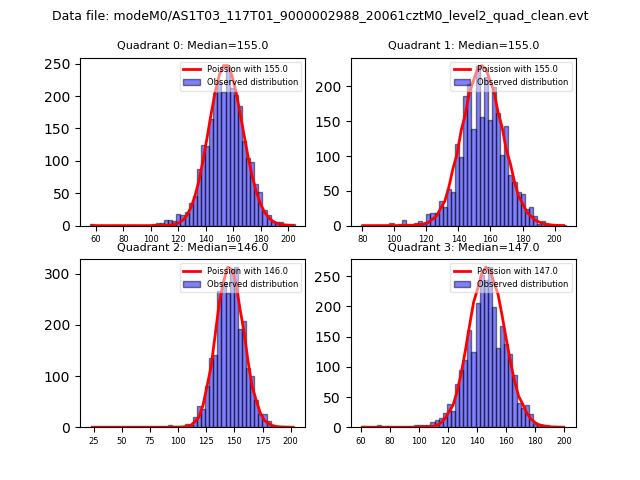

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

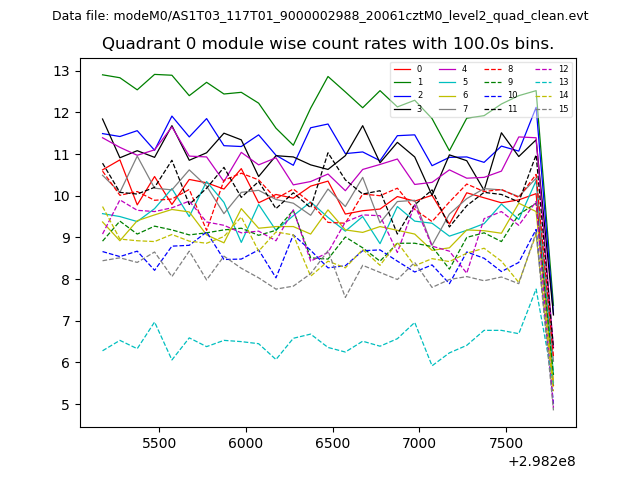

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

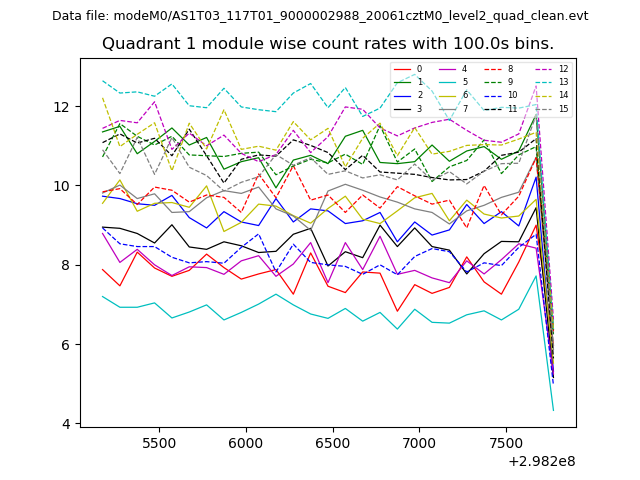

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

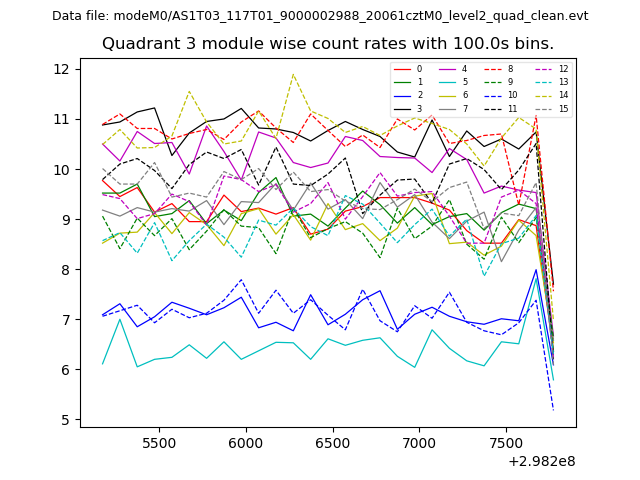

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

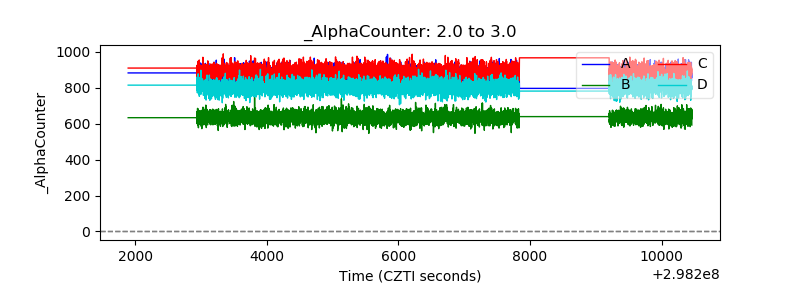

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

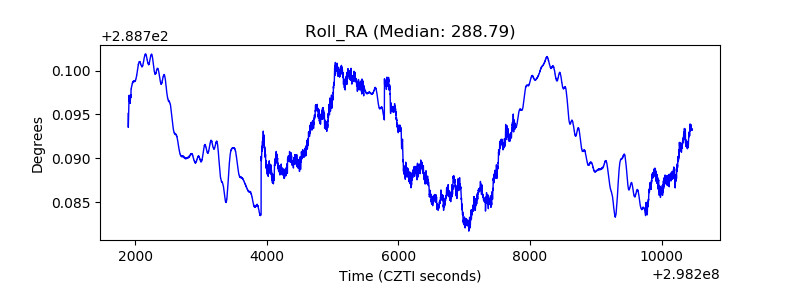

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
