| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_120T01_9000002990_20064cztM0_level2.evt | modeM0/AS1T03_120T01_9000002990_20064cztM0_level2_quad_clean.evt |
| Size (bytes) | 512,254,080 | 126,195,840 |
| Size | 488.5 MB | 120.3 MB |
| Events in quadrant A | 3,793,990 | 864,007 |
| Events in quadrant B | 3,618,071 | 869,718 |
| Events in quadrant C | 3,150,422 | 833,428 |
| Events in quadrant D | 4,519,111 | 810,644 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15162 | 1 |
| B | 0 | 14744 | 1 |
| C | 0 | 13326 | 1 |
| D | 0 | 17522 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6366 | 260 | 4.084197% |
| B | 6367 | 120 | 1.884718% |
| C | 6367 | 84 | 1.319303% |
| D | 6367 | 288 | 4.523323% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7266 | 6367 | 176 | 176 | 2.42% | 2.76% |  |
| B | 7267 | 6368 | 17 | 17 | 0.23% | 0.27% |  |
| C | 7267 | 6368 | 2 | 2 | 0.03% | 0.03% |  |
| D | 7267 | 6368 | 266 | 266 | 3.66% | 4.18% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 5 | 16 | 450659 | 2772.39 | 803 | 790 | 162.3 |
| A | 14 | 238 | 208623 | 1280.8 | 803 | 790 | 162.3 |
| A | 10 | 253 | 31361 | 188.4 | 803 | 790 | 162.3 |
| B | 10 | 245 | 171874 | 1133.06 | 806 | 791 | 151.0 |
| B | 7 | 220 | 129542 | 852.7 | 806 | 791 | 151.0 |
| B | 4 | 80 | 50729 | 330.73 | 806 | 791 | 151.0 |
| C | 14 | 238 | 123579 | 695.74 | 766 | 775 | 176.5 |
| C | 4 | 254 | 23175 | 126.91 | 766 | 775 | 176.5 |
| C | 3 | 233 | 10620 | 55.78 | 766 | 775 | 176.5 |
| D | 1 | 52 | 598968 | 3191.02 | 771 | 750 | 187.5 |
| D | 12 | 218 | 465788 | 2480.61 | 771 | 750 | 187.5 |
| D | 1 | 20 | 191130 | 1015.52 | 771 | 750 | 187.5 |

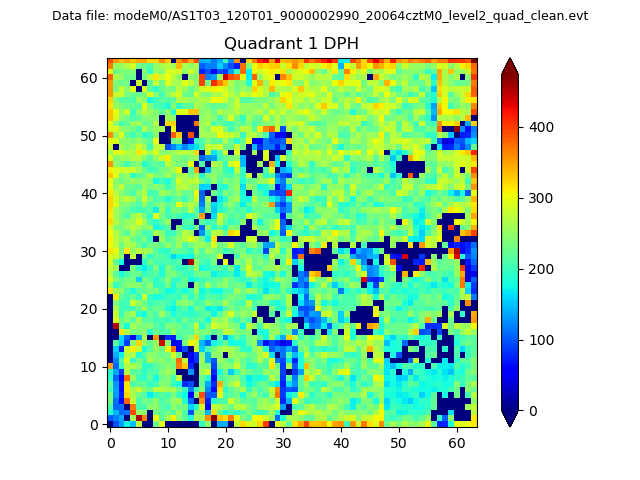

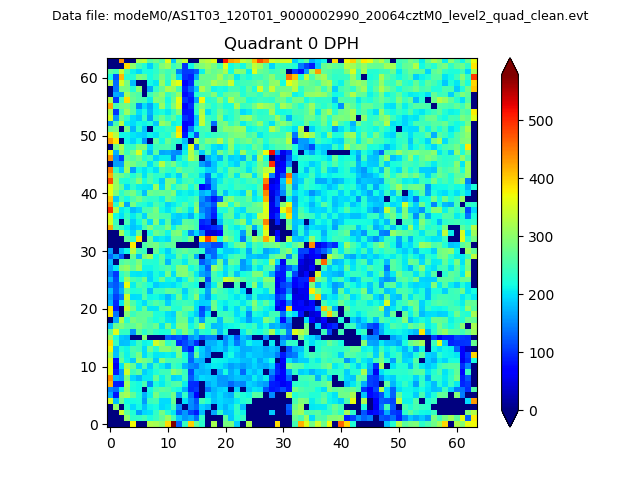

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

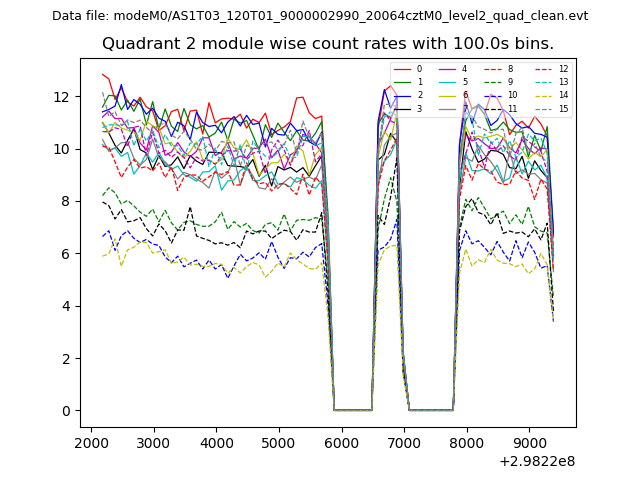

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

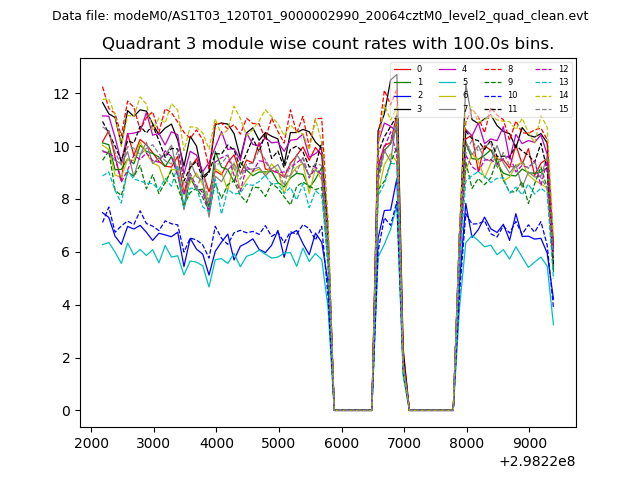

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

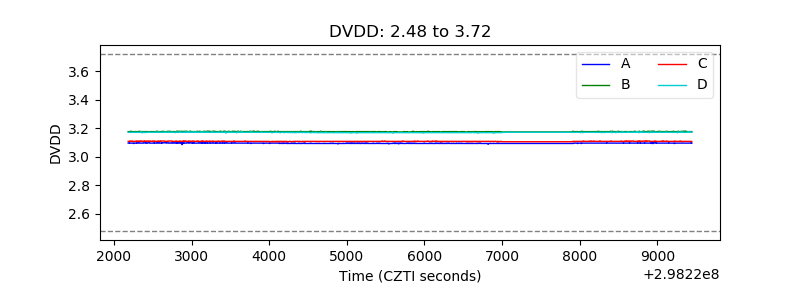

| D_VDD |  |

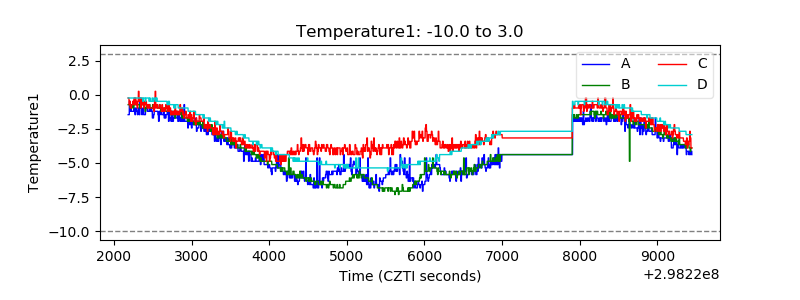

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

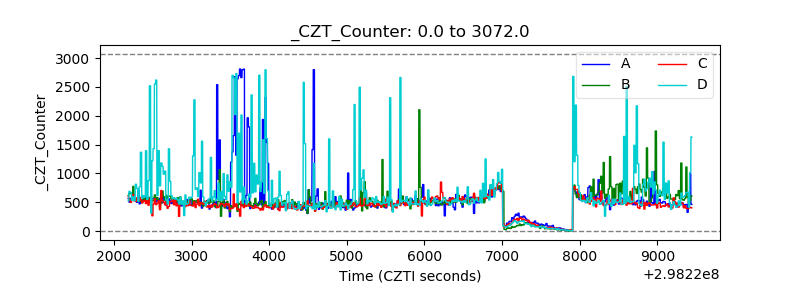

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

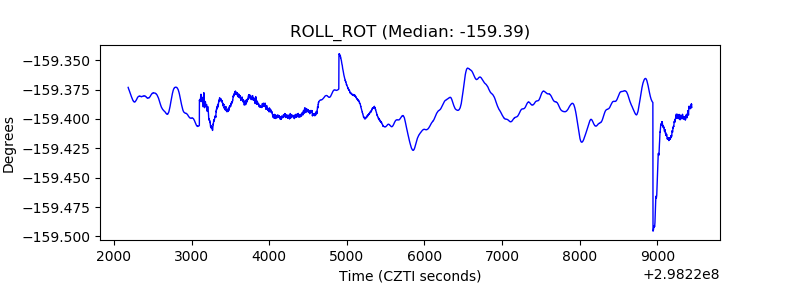

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
