| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_180T01_9000002992_20077cztM0_level2.evt | modeM0/AS1A05_180T01_9000002992_20077cztM0_level2_quad_clean.evt |
| Size (bytes) | 554,339,520 | 83,868,480 |
| Size | 528.7 MB | 80.0 MB |
| Events in quadrant A | 3,873,809 | 533,100 |
| Events in quadrant B | 3,859,750 | 535,603 |
| Events in quadrant C | 3,597,486 | 512,225 |
| Events in quadrant D | 5,021,905 | 510,231 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 21 | 0 |
| C | 0 | 21 | 0 |
| D | 0 | 21 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15427 | 2 |
| B | 0 | 15480 | 2 |
| C | 0 | 14319 | 2 |
| D | 0 | 19360 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6428 | 241 | 3.749222% |
| B | 6428 | 255 | 3.967019% |
| C | 6428 | 194 | 3.018046% |
| D | 6428 | 257 | 3.998133% |

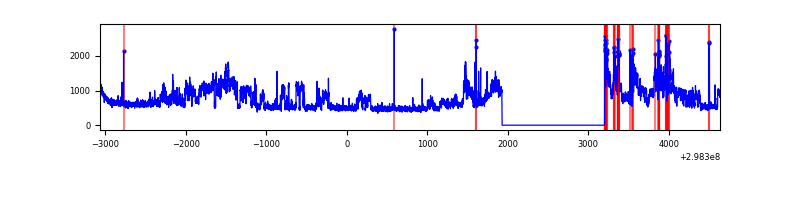

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7703 | 6429 | 34 | 34 | 0.44% | 0.53% |  |
| B | 7703 | 6429 | 24 | 24 | 0.31% | 0.37% |  |
| C | 7703 | 6429 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7703 | 6429 | 60 | 60 | 0.78% | 0.93% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 238 | 194586 | 1056.73 | 930 | 916 | 183.3 |
| A | 4 | 2 | 68414 | 368.29 | 930 | 916 | 183.3 |
| A | 11 | 29 | 14533 | 74.3 | 930 | 916 | 183.3 |
| B | 4 | 80 | 74936 | 431.46 | 916 | 898 | 171.6 |
| B | 10 | 245 | 67424 | 387.68 | 916 | 898 | 171.6 |
| B | 0 | 189 | 32763 | 185.69 | 916 | 898 | 171.6 |
| C | 14 | 238 | 140589 | 686.9 | 885 | 894 | 203.4 |
| C | 13 | 61 | 6208 | 26.13 | 885 | 894 | 203.4 |
| C | 3 | 233 | 5198 | 21.16 | 885 | 894 | 203.4 |
| D | 1 | 52 | 1109124 | 5128.07 | 904 | 883 | 216.1 |
| D | 12 | 218 | 348775 | 1609.77 | 904 | 883 | 216.1 |
| D | 7 | 223 | 103115 | 473.05 | 904 | 883 | 216.1 |

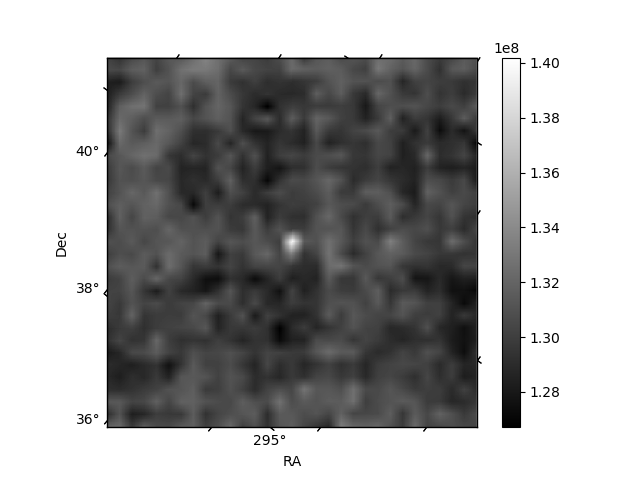

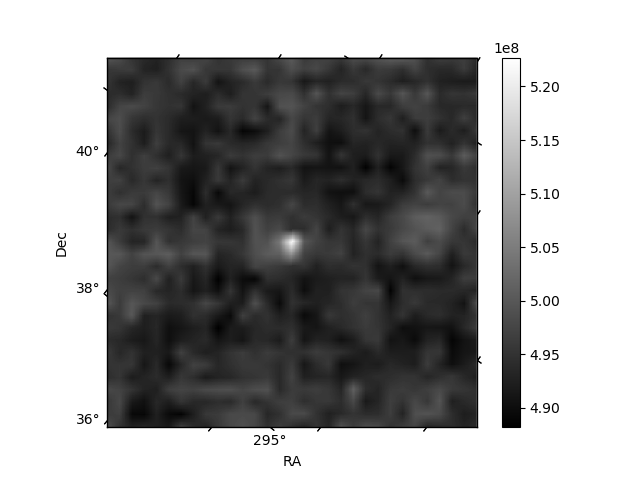

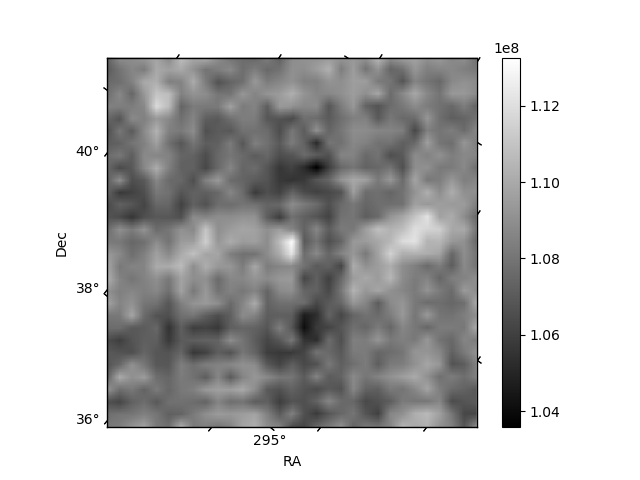

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

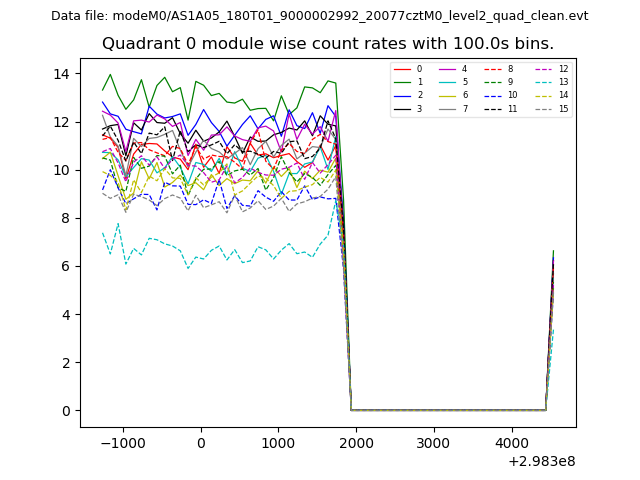

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

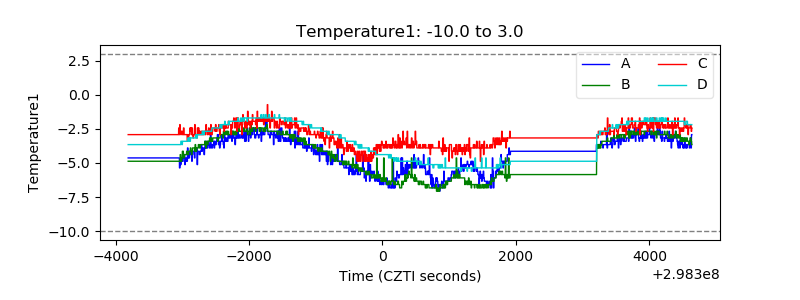

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

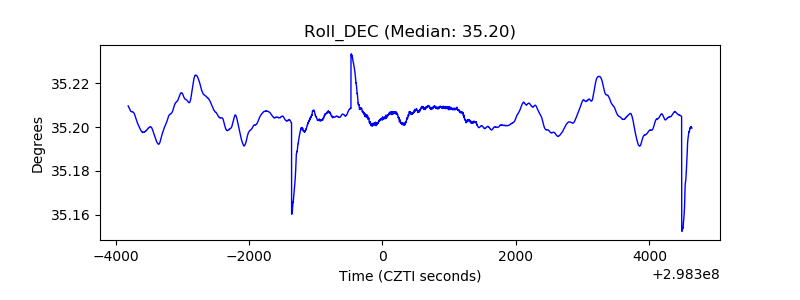

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
