| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_180T01_9000002992_20124cztM0_level2.evt | modeM0/AS1A05_180T01_9000002992_20124cztM0_level2_quad_clean.evt |
| Size (bytes) | 710,444,160 | 109,774,080 |
| Size | 677.5 MB | 104.7 MB |
| Events in quadrant A | 4,956,210 | 697,214 |
| Events in quadrant B | 5,630,150 | 711,884 |
| Events in quadrant C | 4,585,369 | 691,334 |
| Events in quadrant D | 5,812,337 | 677,238 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19653 | 2 |
| B | 0 | 22011 | 2 |
| C | 0 | 18482 | 2 |
| D | 0 | 22662 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 162 | 0 |
| B | 0 | 162 | 0 |
| C | 0 | 162 | 0 |
| D | 0 | 162 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7858 | 525 | 6.681089% |
| B | 7858 | 602 | 7.660982% |
| C | 7858 | 288 | 3.665055% |
| D | 7859 | 419 | 5.331467% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8623 | 7860 | 251 | 251 | 2.91% | 3.19% |  |
| B | 8623 | 7860 | 319 | 319 | 3.70% | 4.06% |  |
| C | 8623 | 7860 | 31 | 31 | 0.36% | 0.39% |  |
| D | 8624 | 7861 | 216 | 216 | 2.50% | 2.75% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 238 | 1154889 | 5833.7 | 982 | 964 | 197.8 |
| A | 14 | 237 | 10688 | 49.16 | 982 | 964 | 197.8 |
| A | 13 | 254 | 8569 | 38.45 | 982 | 964 | 197.8 |
| B | 10 | 245 | 1618372 | 8603.21 | 975 | 951 | 188.0 |
| B | 0 | 198 | 42090 | 218.82 | 975 | 951 | 188.0 |
| B | 0 | 197 | 40387 | 209.76 | 975 | 951 | 188.0 |
| C | 3 | 233 | 680152 | 3018.33 | 960 | 967 | 225.0 |
| C | 14 | 238 | 151229 | 667.77 | 960 | 967 | 225.0 |
| C | 0 | 207 | 12146 | 49.68 | 960 | 967 | 225.0 |
| D | 1 | 52 | 1682907 | 7175.83 | 967 | 939 | 234.4 |
| D | 14 | 34 | 163575 | 693.86 | 967 | 939 | 234.4 |
| D | 12 | 218 | 144351 | 611.84 | 967 | 939 | 234.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

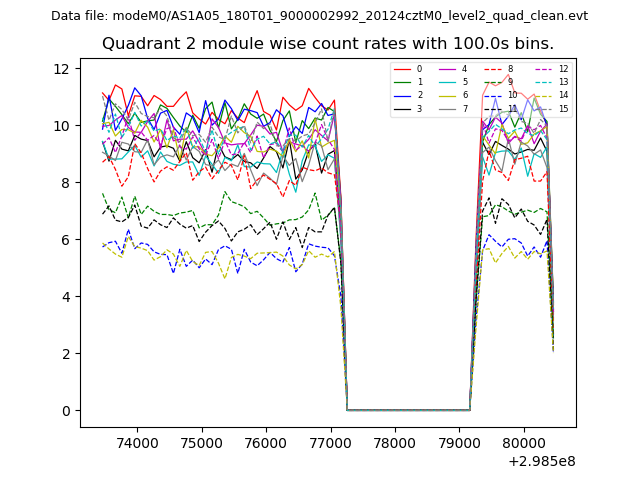

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

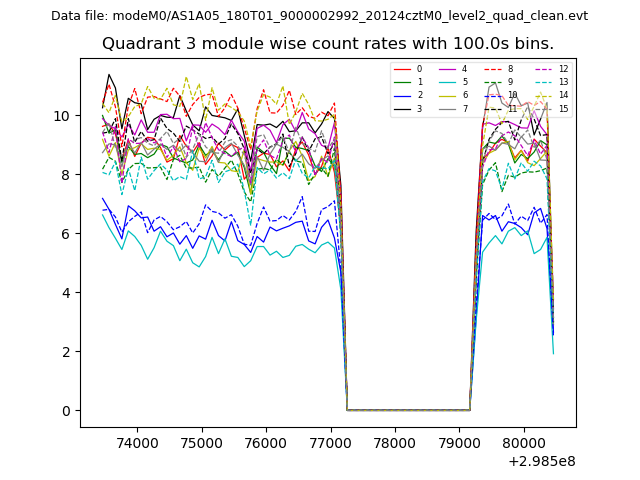

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

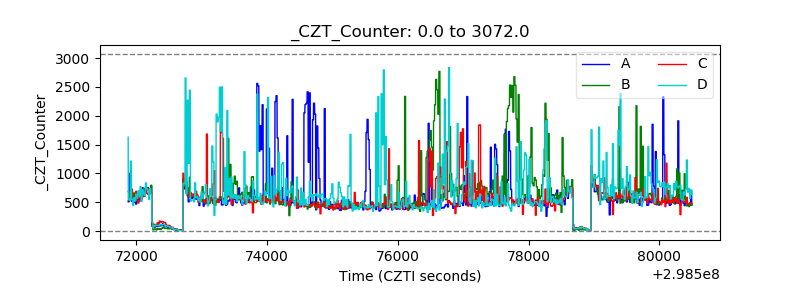

| CZT Counter |  |
