| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C04_001T01_9000002994_20183cztM0_level2.evt | modeM0/AS1C04_001T01_9000002994_20183cztM0_level2_quad_clean.evt |
| Size (bytes) | 547,557,120 | 138,899,520 |
| Size | 522.2 MB | 132.5 MB |
| Events in quadrant A | 3,531,145 | 946,222 |
| Events in quadrant B | 3,931,829 | 938,215 |
| Events in quadrant C | 4,255,713 | 909,142 |
| Events in quadrant D | 4,358,994 | 895,398 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 150 | 0 |
| B | 0 | 150 | 0 |
| C | 0 | 150 | 0 |
| D | 0 | 150 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 5 | 0 |
| C | 0 | 5 | 0 |
| D | 0 | 5 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15511 | 2 |
| B | 0 | 16668 | 2 |
| C | 0 | 17625 | 2 |
| D | 0 | 18136 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7445 | 81 | 1.087979% |
| B | 7445 | 163 | 2.189389% |
| C | 7445 | 160 | 2.149093% |
| D | 7445 | 215 | 2.887844% |

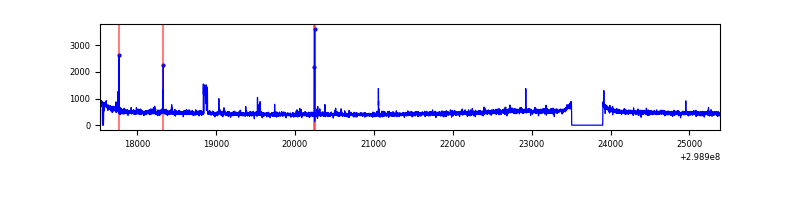

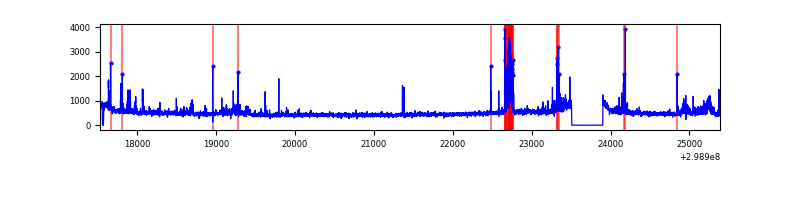

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7855 | 7447 | 4 | 4 | 0.05% | 0.05% |  |
| B | 7855 | 7447 | 46 | 46 | 0.59% | 0.62% |  |
| C | 7855 | 7447 | 2 | 2 | 0.03% | 0.03% |  |
| D | 7855 | 7447 | 117 | 117 | 1.49% | 1.57% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 111 | 45546 | 247.76 | 890 | 870 | 180.3 |
| A | 4 | 2 | 28310 | 152.18 | 890 | 870 | 180.3 |
| A | 14 | 238 | 22114 | 117.81 | 890 | 870 | 180.3 |
| B | 0 | 197 | 156390 | 928.44 | 880 | 856 | 167.5 |
| B | 10 | 245 | 127543 | 756.24 | 880 | 856 | 167.5 |
| B | 0 | 190 | 58910 | 346.54 | 880 | 856 | 167.5 |
| C | 3 | 233 | 799134 | 4011.76 | 852 | 856 | 199.0 |
| C | 14 | 238 | 133065 | 664.42 | 852 | 856 | 199.0 |
| C | 13 | 61 | 6002 | 25.86 | 852 | 856 | 199.0 |
| D | 7 | 238 | 216551 | 1024.12 | 868 | 840 | 210.6 |
| D | 5 | 222 | 206144 | 974.72 | 868 | 840 | 210.6 |
| D | 15 | 0 | 176226 | 832.67 | 868 | 840 | 210.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

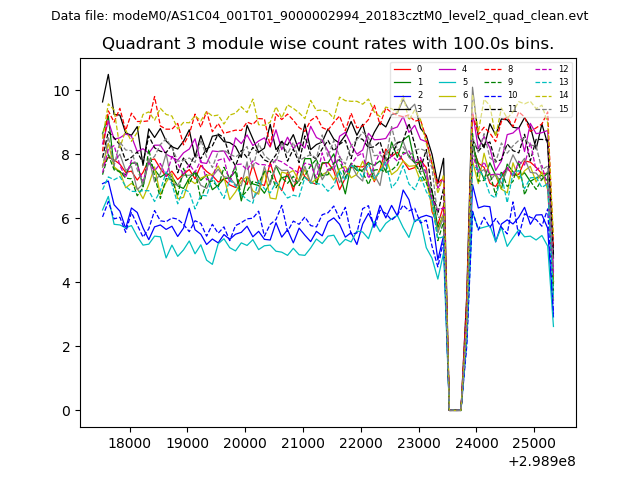

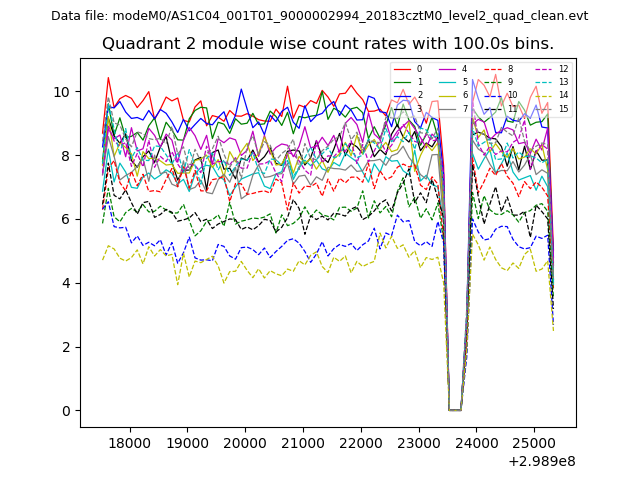

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

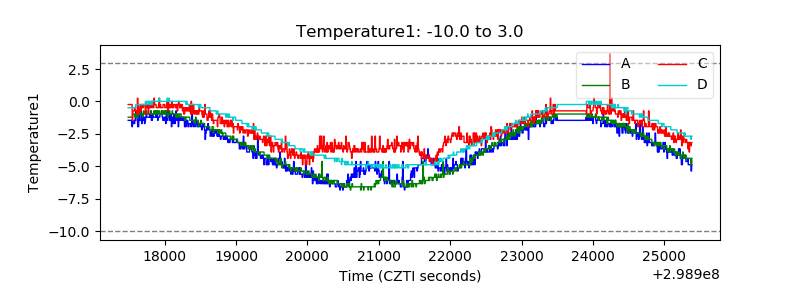

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

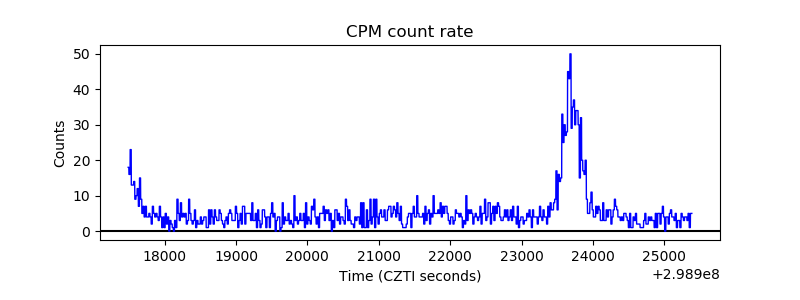

| _CPM_Rate |  |

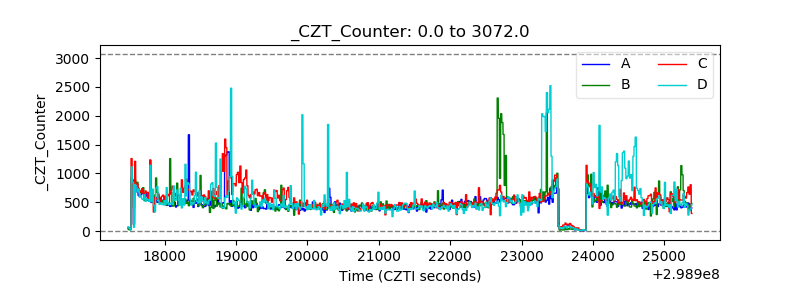

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
