| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C04_001T01_9000002994_20187cztM0_level2.evt | modeM0/AS1C04_001T01_9000002994_20187cztM0_level2_quad_clean.evt |
| Size (bytes) | 462,222,720 | 128,733,120 |
| Size | 440.8 MB | 122.8 MB |
| Events in quadrant A | 3,149,242 | 872,572 |
| Events in quadrant B | 3,280,371 | 874,183 |
| Events in quadrant C | 3,369,988 | 849,479 |
| Events in quadrant D | 3,737,897 | 830,232 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 19 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13937 | 2 |
| B | 0 | 14268 | 2 |
| C | 0 | 14303 | 2 |
| D | 0 | 16067 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6780 | 25 | 0.368732% |
| B | 6781 | 46 | 0.678366% |
| C | 6781 | 65 | 0.958561% |
| D | 6781 | 119 | 1.754903% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8650 | 6782 | 6 | 6 | 0.07% | 0.09% |  |
| B | 8651 | 6783 | 4 | 4 | 0.05% | 0.06% |  |
| C | 8651 | 6783 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8651 | 6783 | 91 | 91 | 1.05% | 1.34% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 238 | 31376 | 190.1 | 800 | 781 | 160.9 |
| A | 4 | 2 | 21869 | 131.03 | 800 | 781 | 160.9 |
| A | 0 | 253 | 16199 | 95.8 | 800 | 781 | 160.9 |
| B | 0 | 197 | 53356 | 345.87 | 801 | 780 | 152.0 |
| B | 12 | 111 | 18073 | 113.76 | 801 | 780 | 152.0 |
| B | 11 | 111 | 15577 | 97.34 | 801 | 780 | 152.0 |
| C | 3 | 233 | 223441 | 1232.39 | 771 | 775 | 180.7 |
| C | 14 | 238 | 119898 | 659.31 | 771 | 775 | 180.7 |
| C | 8 | 128 | 10071 | 51.45 | 771 | 775 | 180.7 |
| D | 7 | 238 | 304888 | 1618.91 | 774 | 751 | 187.9 |
| D | 15 | 0 | 196360 | 1041.22 | 774 | 751 | 187.9 |
| D | 12 | 17 | 119907 | 634.26 | 774 | 751 | 187.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

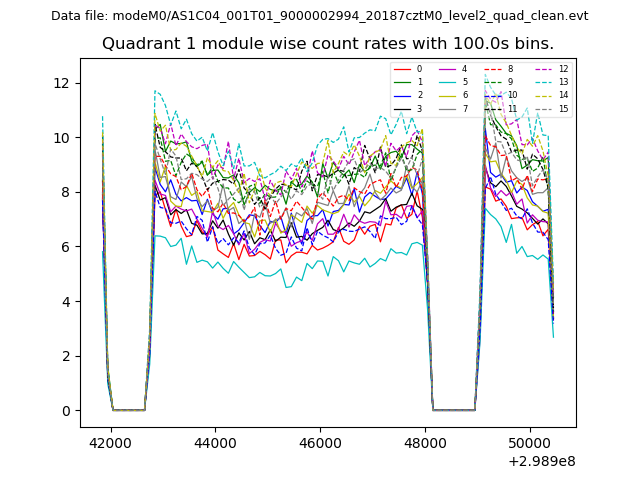

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

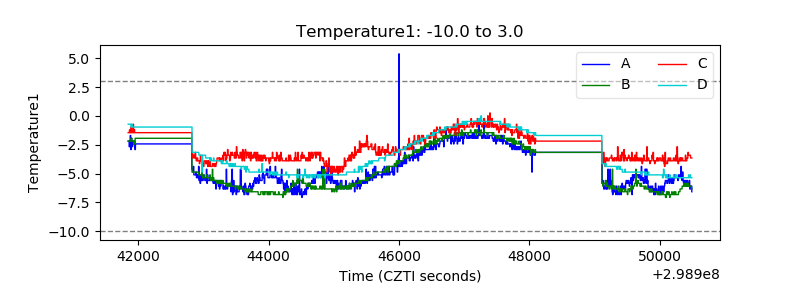

| Temperature 1 |  |

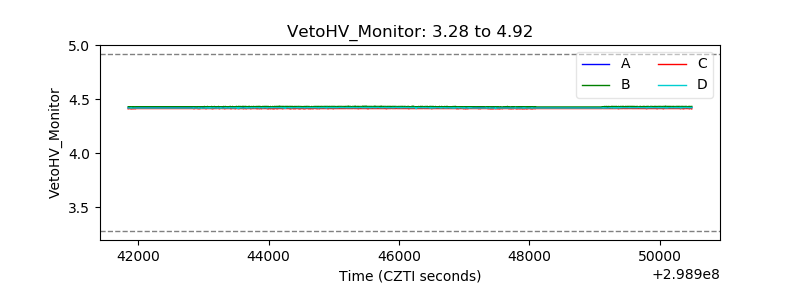

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

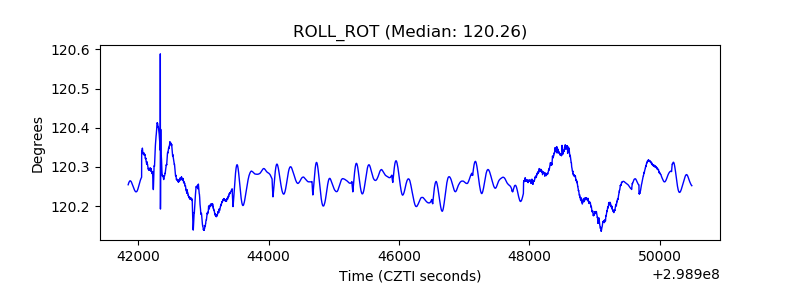

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
