| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C04_001T01_9000002994_20192cztM0_level2.evt | modeM0/AS1C04_001T01_9000002994_20192cztM0_level2_quad_clean.evt |
| Size (bytes) | 436,896,000 | 135,374,400 |
| Size | 416.7 MB | 129.1 MB |
| Events in quadrant A | 3,162,045 | 947,703 |
| Events in quadrant B | 3,296,992 | 948,443 |
| Events in quadrant C | 3,209,037 | 891,752 |
| Events in quadrant D | 3,146,723 | 884,644 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 15 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13039 | 2 |
| B | 0 | 13421 | 2 |
| C | 0 | 13081 | 2 |
| D | 0 | 13138 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6132 | 46 | 0.750163% |
| B | 6132 | 73 | 1.190476% |
| C | 6132 | 62 | 1.011089% |
| D | 6132 | 54 | 0.880626% |

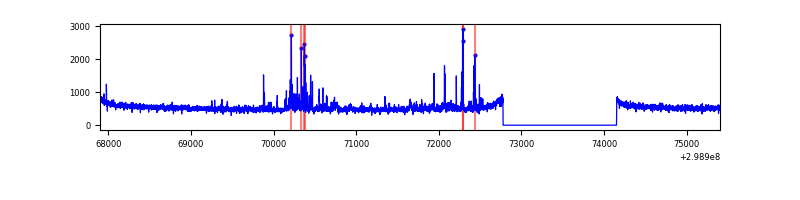

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7507 | 6133 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7507 | 6133 | 7 | 7 | 0.09% | 0.11% |  |
| C | 7507 | 6133 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7507 | 6133 | 21 | 21 | 0.28% | 0.34% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 2 | 13832 | 80.01 | 817 | 802 | 162.9 |
| A | 0 | 226 | 7233 | 39.49 | 817 | 802 | 162.9 |
| A | 12 | 194 | 5975 | 31.76 | 817 | 802 | 162.9 |
| B | 0 | 197 | 66629 | 449.76 | 802 | 785 | 146.4 |
| B | 7 | 220 | 62208 | 419.56 | 802 | 785 | 146.4 |
| B | 12 | 111 | 16611 | 108.1 | 802 | 785 | 146.4 |
| C | 14 | 238 | 122552 | 703.66 | 760 | 766 | 173.1 |
| C | 3 | 233 | 121538 | 697.8 | 760 | 766 | 173.1 |
| C | 13 | 61 | 5265 | 25.99 | 760 | 766 | 173.1 |
| D | 15 | 0 | 92268 | 483.47 | 783 | 761 | 189.3 |
| D | 2 | 234 | 22979 | 117.39 | 783 | 761 | 189.3 |
| D | 13 | 138 | 15117 | 75.85 | 783 | 761 | 189.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

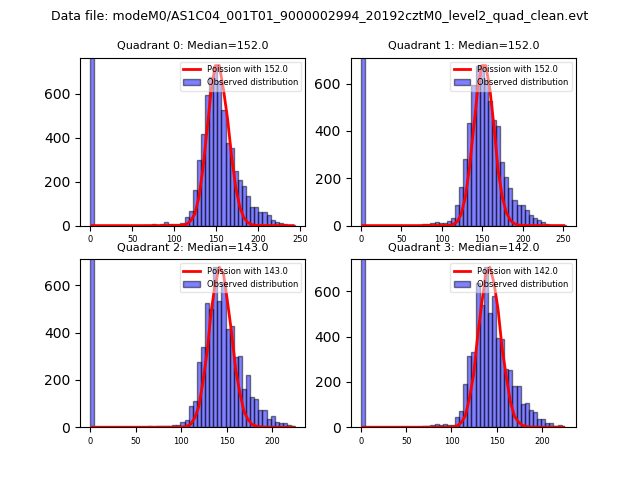

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

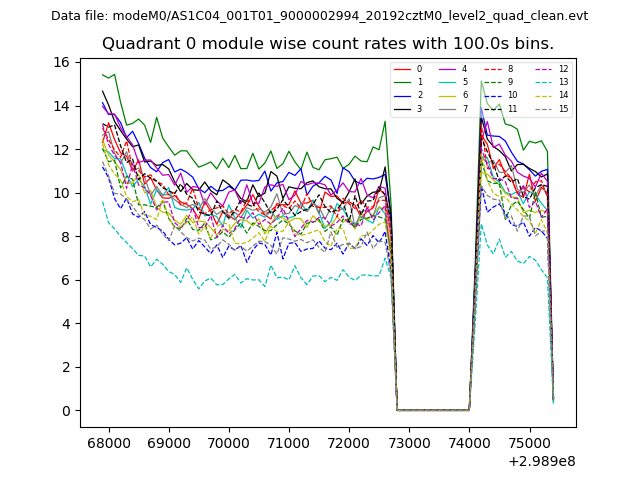

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

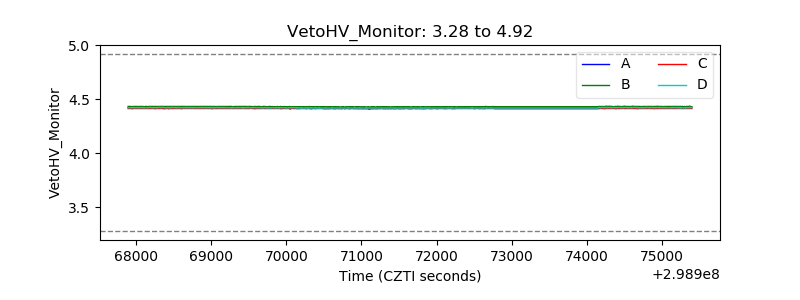

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

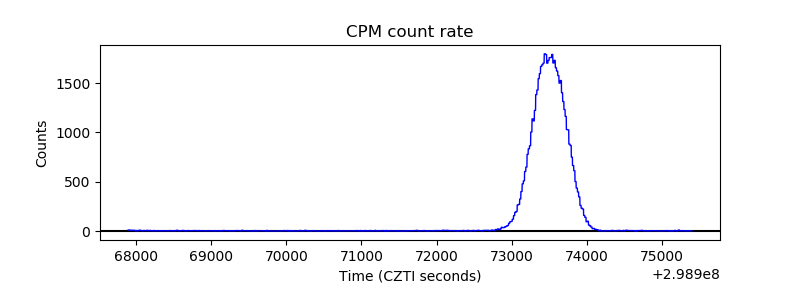

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

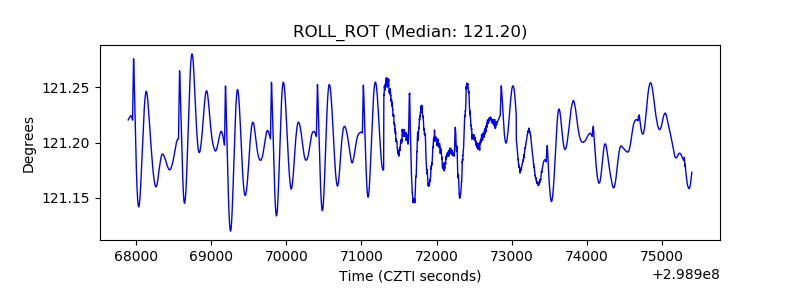

| _ROLL_ROT |  |
| _Roll_DEC |  |

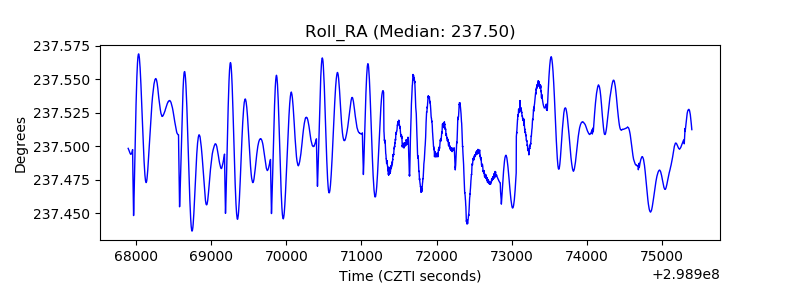

| _Roll_RA |  |
| Veto Counter |  |
