| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A06_005T02_9000002996_20197cztM0_level2.evt | modeM0/AS1A06_005T02_9000002996_20197cztM0_level2_quad_clean.evt |
| Size (bytes) | 304,997,760 | 42,995,520 |
| Size | 290.9 MB | 41.0 MB |
| Events in quadrant A | 2,231,937 | 260,076 |
| Events in quadrant B | 2,296,241 | 259,368 |
| Events in quadrant C | 2,131,280 | 243,747 |
| Events in quadrant D | 2,288,029 | 239,532 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9257 | 1 |
| B | 0 | 9427 | 1 |
| C | 0 | 8918 | 1 |
| D | 0 | 9633 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 86 | 0 |
| B | 0 | 86 | 0 |
| C | 0 | 86 | 0 |
| D | 0 | 86 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4245 | 86 | 2.025913% |
| B | 4245 | 96 | 2.261484% |
| C | 4245 | 80 | 1.884570% |
| D | 4245 | 120 | 2.826855% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 4555 | 4246 | 25 | 25 | 0.55% | 0.59% |  |
| B | 4555 | 4246 | 13 | 13 | 0.29% | 0.31% |  |
| C | 4555 | 4246 | 0 | 0 | 0.00% | 0.00% |  |
| D | 4555 | 4246 | 86 | 86 | 1.89% | 2.03% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 238 | 73145 | 658.62 | 540 | 528 | 110.3 |
| A | 4 | 2 | 71100 | 640.07 | 540 | 528 | 110.3 |
| A | 0 | 226 | 4771 | 38.48 | 540 | 528 | 110.3 |
| B | 7 | 220 | 127273 | 1204.9 | 537 | 524 | 105.2 |
| B | 0 | 197 | 13182 | 120.33 | 537 | 524 | 105.2 |
| B | 12 | 111 | 12562 | 114.44 | 537 | 524 | 105.2 |
| C | 14 | 238 | 79794 | 655.59 | 513 | 516 | 120.9 |
| C | 3 | 233 | 44452 | 363.33 | 513 | 516 | 120.9 |
| C | 1 | 16 | 5026 | 37.3 | 513 | 516 | 120.9 |
| D | 7 | 38 | 235670 | 1832.9 | 521 | 506 | 128.3 |
| D | 2 | 184 | 26927 | 205.93 | 521 | 506 | 128.3 |
| D | 2 | 16 | 26701 | 204.17 | 521 | 506 | 128.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

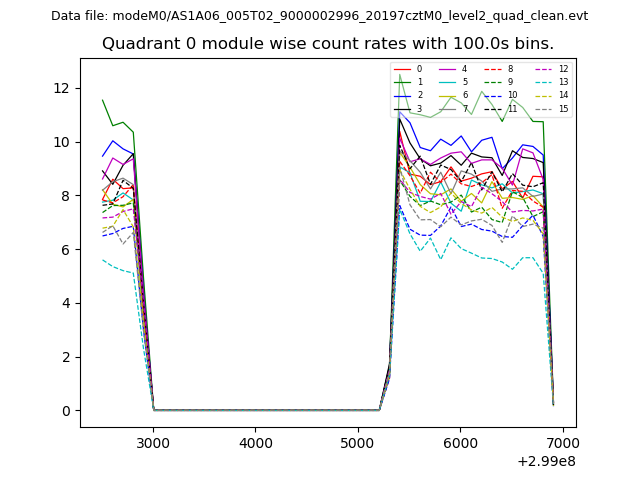

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

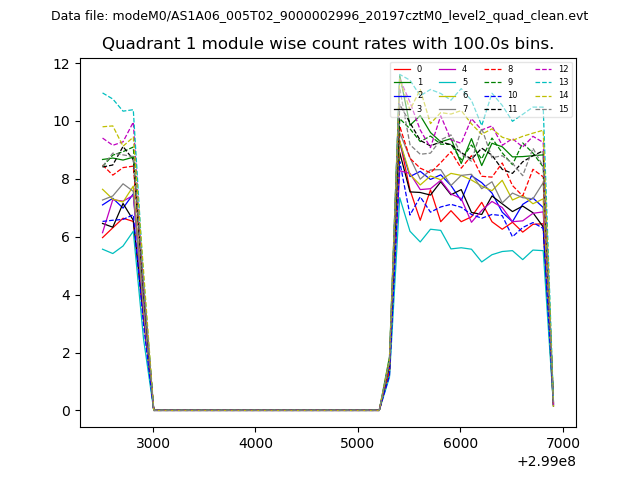

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

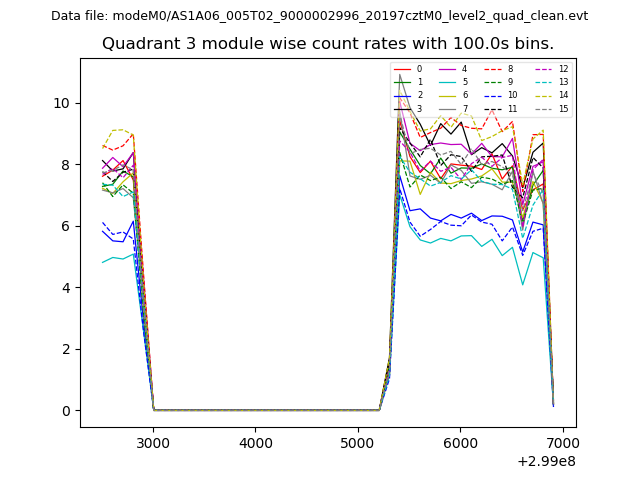

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

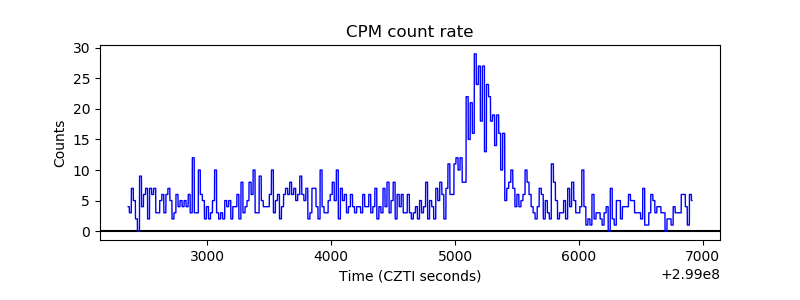

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

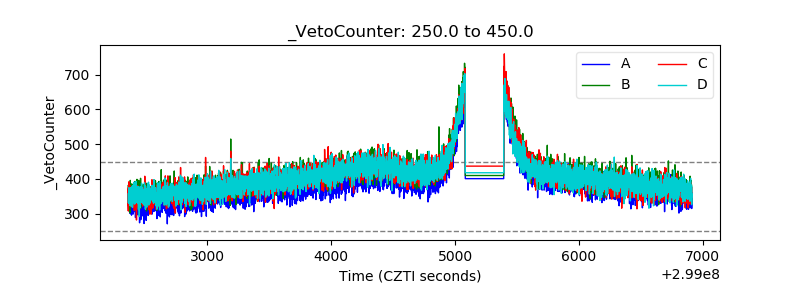

| Veto Counter |  |
