| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A06_005T02_9000002996_20203cztM0_level2.evt | modeM0/AS1A06_005T02_9000002996_20203cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,996,479,360 | 364,121,280 |
| Size | 1.9 GB | 347.3 MB |
| Events in quadrant A | 14,148,880 | 2,348,458 |
| Events in quadrant B | 14,659,789 | 2,348,931 |
| Events in quadrant C | 13,812,818 | 2,202,452 |
| Events in quadrant D | 15,898,515 | 2,150,380 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 60744 | 6 |
| B | 0 | 62052 | 5 |
| C | 0 | 59300 | 5 |
| D | 0 | 67615 | 5 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 584 | 0 |
| B | 0 | 584 | 0 |
| C | 0 | 584 | 0 |
| D | 0 | 584 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 40 | 0 |
| B | 0 | 40 | 0 |
| C | 0 | 40 | 0 |
| D | 0 | 40 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 28785 | 307 | 1.066528% |
| B | 28786 | 281 | 0.976169% |
| C | 28786 | 222 | 0.771208% |
| D | 28786 | 474 | 1.646634% |

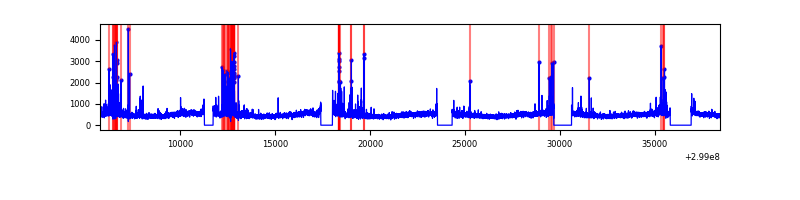

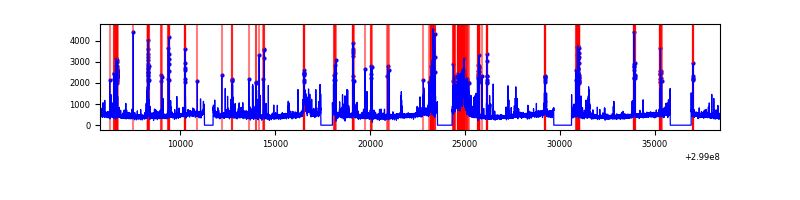

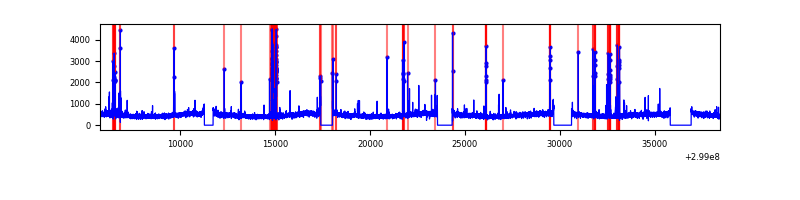

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 32680 | 28790 | 142 | 142 | 0.43% | 0.49% |  |
| B | 32681 | 28791 | 69 | 69 | 0.21% | 0.24% |  |
| C | 32681 | 28791 | 0 | 0 | 0.00% | 0.00% |  |
| D | 32681 | 28791 | 453 | 453 | 1.39% | 1.57% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 238 | 530918 | 759.51 | 3461 | 3394 | 694.6 |
| A | 4 | 2 | 160029 | 225.52 | 3461 | 3394 | 694.6 |
| A | 10 | 253 | 79337 | 109.34 | 3461 | 3394 | 694.6 |
| B | 7 | 220 | 566360 | 859.72 | 3455 | 3364 | 654.9 |
| B | 0 | 197 | 130296 | 193.83 | 3455 | 3364 | 654.9 |
| B | 0 | 198 | 97446 | 143.67 | 3455 | 3364 | 654.9 |
| C | 14 | 238 | 512436 | 659.71 | 3294 | 3311 | 771.7 |
| C | 3 | 233 | 456313 | 586.99 | 3294 | 3311 | 771.7 |
| C | 13 | 61 | 23200 | 25.77 | 3294 | 3311 | 771.7 |
| D | 1 | 52 | 1644853 | 2041.62 | 3320 | 3221 | 804.1 |
| D | 7 | 38 | 574040 | 709.9 | 3320 | 3221 | 804.1 |
| D | 7 | 238 | 298022 | 366.63 | 3320 | 3221 | 804.1 |

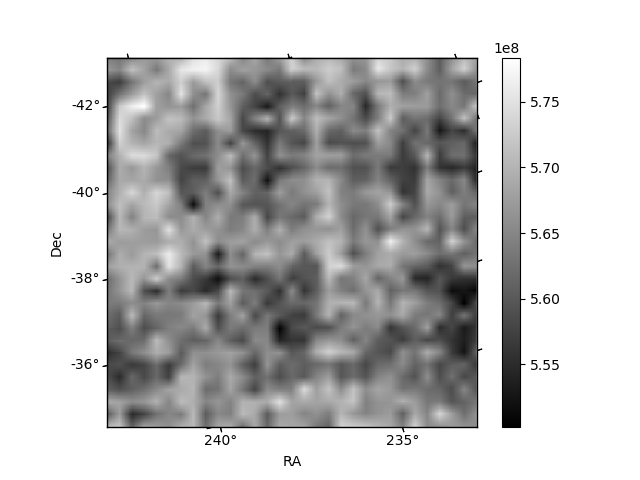

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

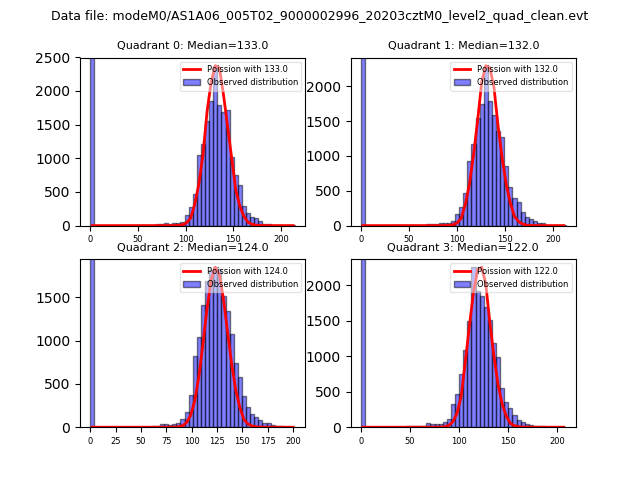

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

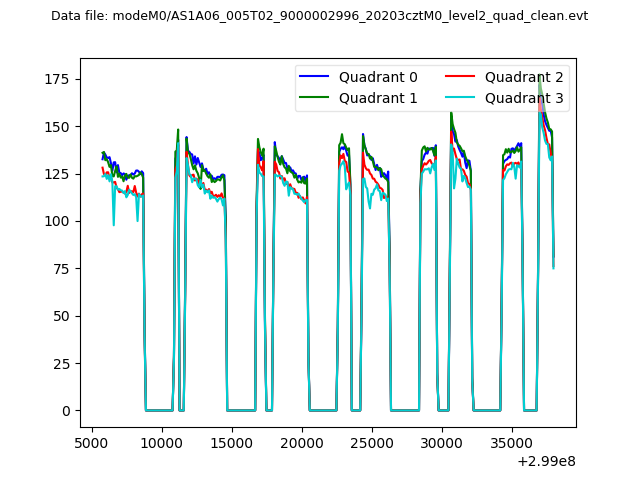

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

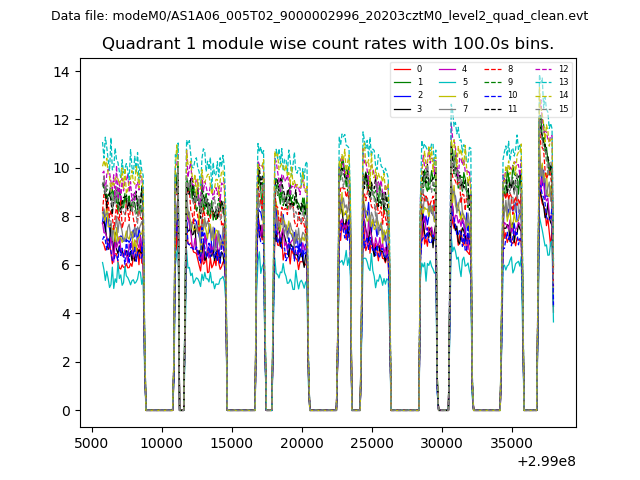

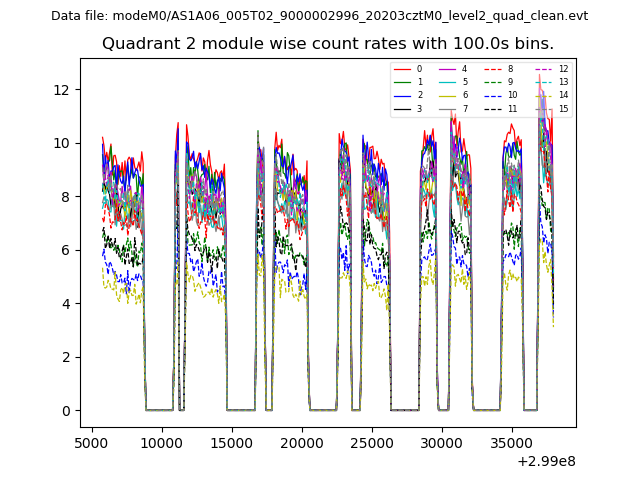

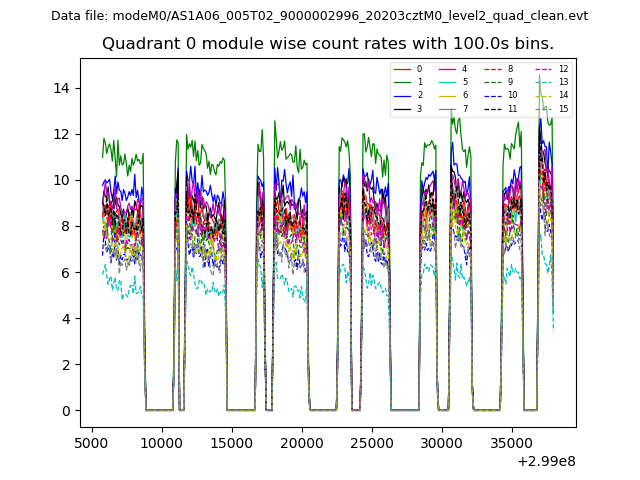

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

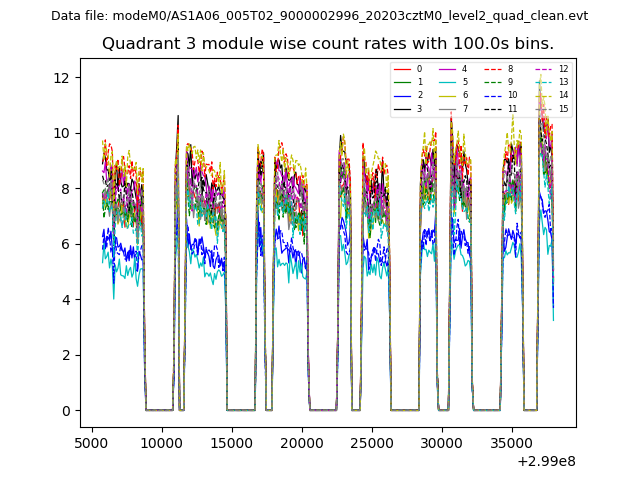

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

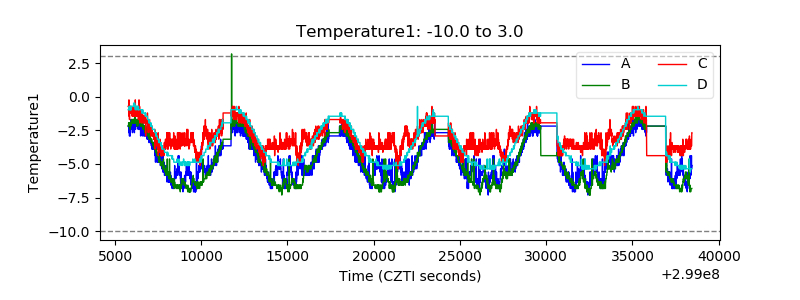

| Temperature 1 |  |

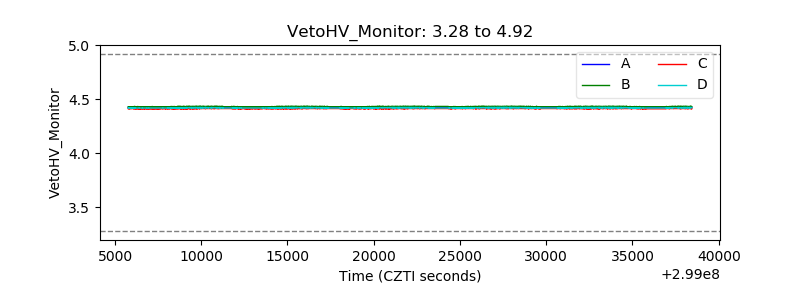

| Veto HV Monitor |  |
| Veto LLD |  |

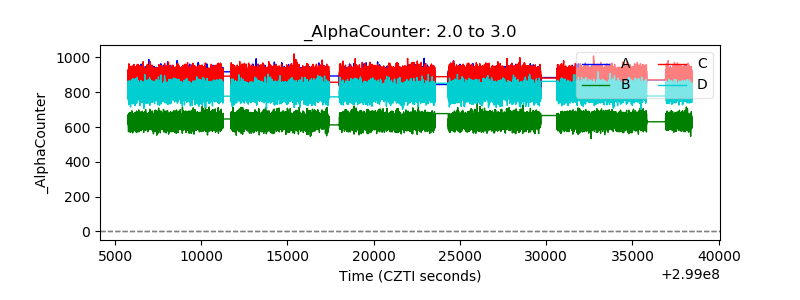

| Alpha Counter |  |

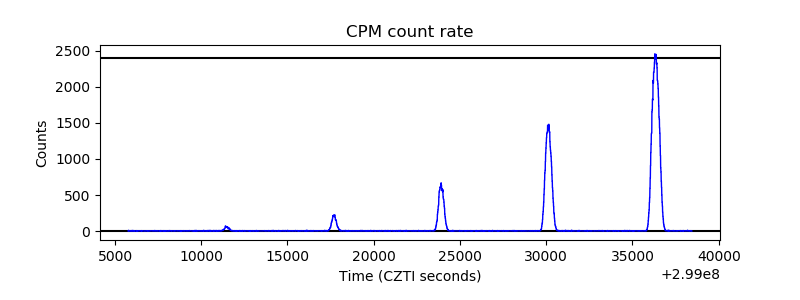

| _CPM_Rate |  |

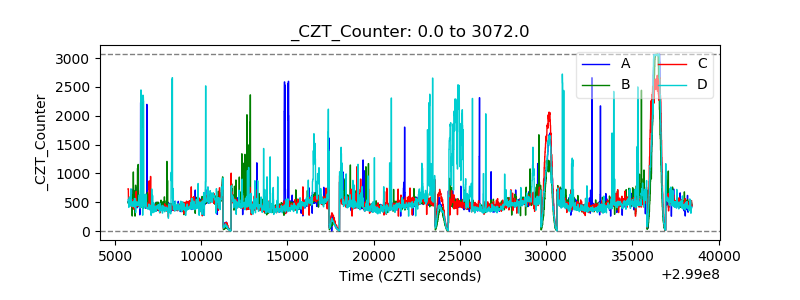

| CZT Counter |  |

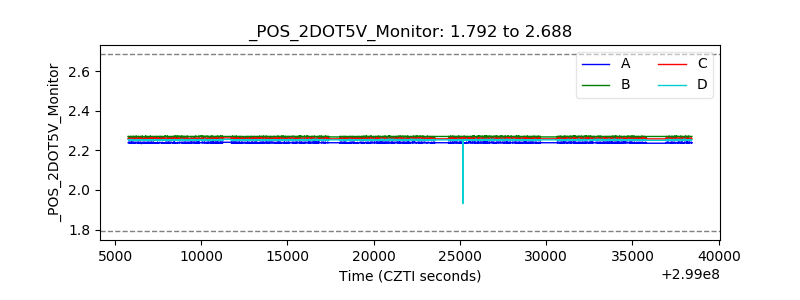

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

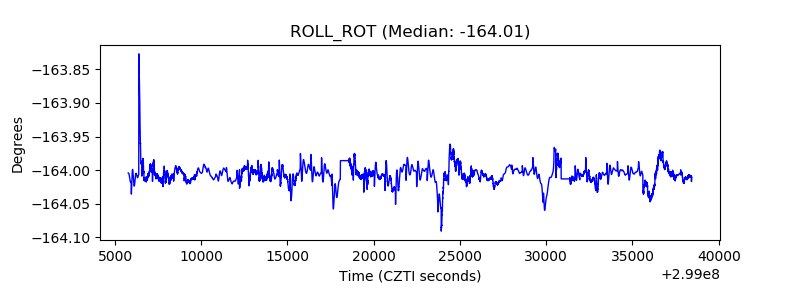

| _ROLL_ROT |  |

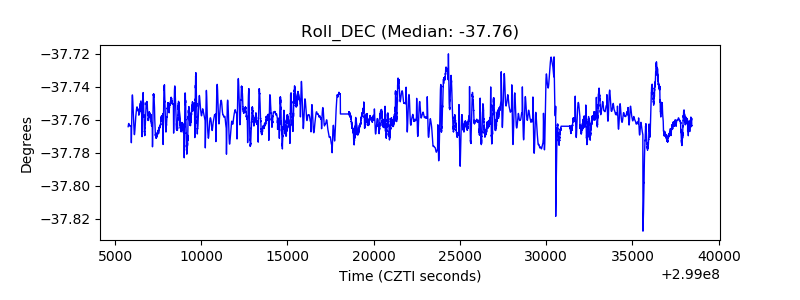

| _Roll_DEC |  |

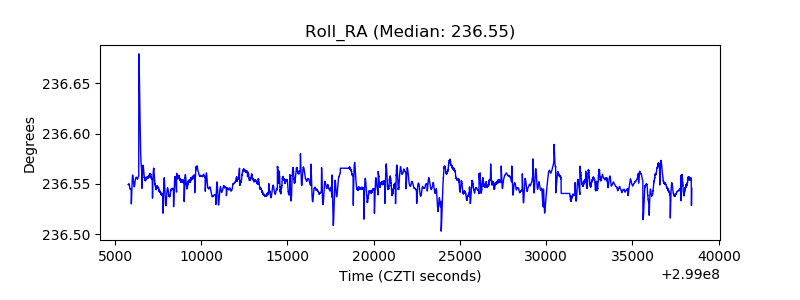

| _Roll_RA |  |

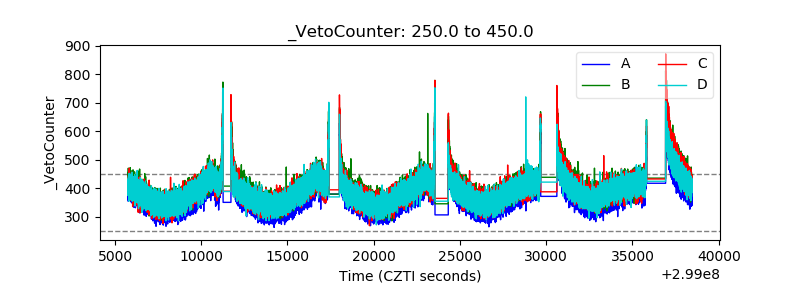

| Veto Counter |  |
