| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_117T01_9000002998_20215cztM0_level2.evt | modeM0/AS1A05_117T01_9000002998_20215cztM0_level2_quad_clean.evt |
| Size (bytes) | 985,982,400 | 174,476,160 |
| Size | 940.3 MB | 166.4 MB |
| Events in quadrant A | 6,502,331 | 1,118,530 |
| Events in quadrant B | 7,066,519 | 1,119,189 |
| Events in quadrant C | 6,616,569 | 1,074,896 |
| Events in quadrant D | 8,763,242 | 1,040,379 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 27943 | 3 |
| B | 0 | 29525 | 3 |
| C | 0 | 27824 | 3 |
| D | 0 | 35253 | 3 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 274 | 0 |
| B | 0 | 274 | 0 |
| C | 0 | 274 | 0 |
| D | 0 | 274 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22 | 0 |
| B | 0 | 22 | 0 |
| C | 0 | 22 | 0 |
| D | 0 | 22 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 13485 | 76 | 0.563589% |
| B | 13486 | 198 | 1.468189% |
| C | 13486 | 144 | 1.067774% |
| D | 13486 | 701 | 5.197983% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 15645 | 13488 | 16 | 16 | 0.10% | 0.12% |  |
| B | 15646 | 13489 | 39 | 39 | 0.25% | 0.29% |  |
| C | 15646 | 13489 | 0 | 0 | 0.00% | 0.00% |  |
| D | 15646 | 13489 | 495 | 495 | 3.16% | 3.67% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 238 | 71080 | 206.01 | 1656 | 1616 | 337.2 |
| A | 4 | 2 | 32696 | 92.17 | 1656 | 1616 | 337.2 |
| A | 14 | 111 | 24067 | 66.58 | 1656 | 1616 | 337.2 |
| B | 7 | 220 | 159942 | 504.41 | 1640 | 1598 | 313.9 |
| B | 0 | 214 | 129921 | 408.78 | 1640 | 1598 | 313.9 |
| B | 15 | 222 | 125503 | 394.71 | 1640 | 1598 | 313.9 |
| C | 14 | 238 | 246551 | 653.36 | 1592 | 1602 | 374.9 |
| C | 3 | 233 | 139306 | 367.3 | 1592 | 1602 | 374.9 |
| C | 1 | 16 | 25421 | 63.53 | 1592 | 1602 | 374.9 |
| D | 1 | 52 | 1915251 | 4948.02 | 1590 | 1550 | 386.8 |
| D | 12 | 17 | 237913 | 611.13 | 1590 | 1550 | 386.8 |
| D | 5 | 222 | 223321 | 573.41 | 1590 | 1550 | 386.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

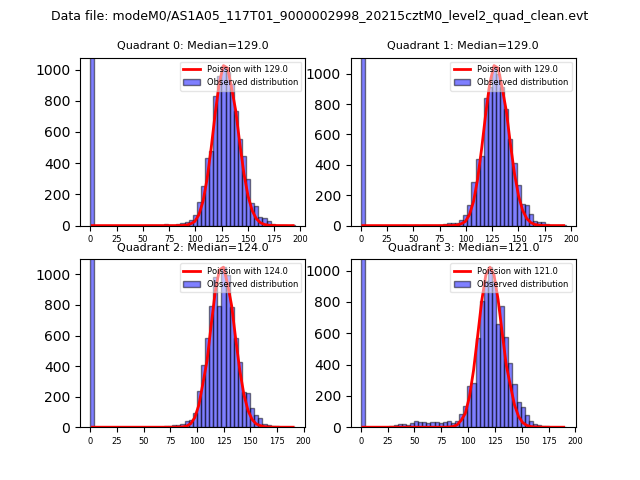

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

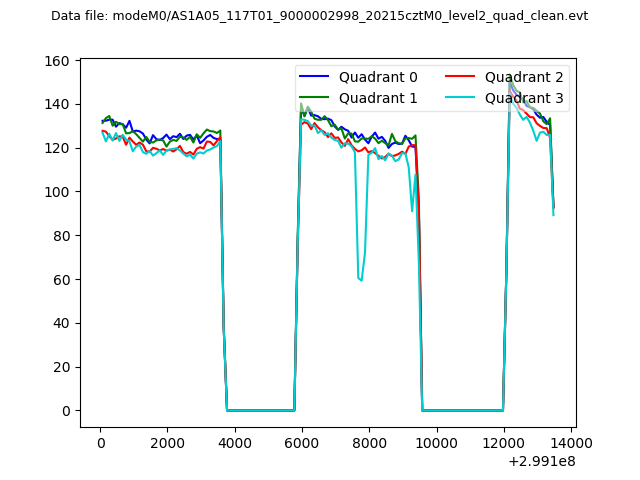

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

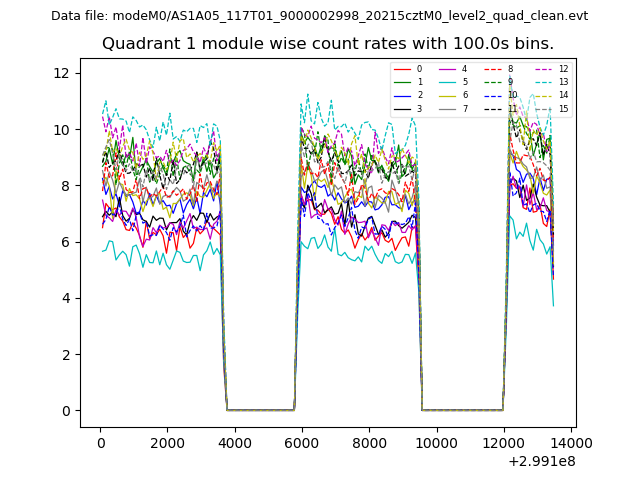

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

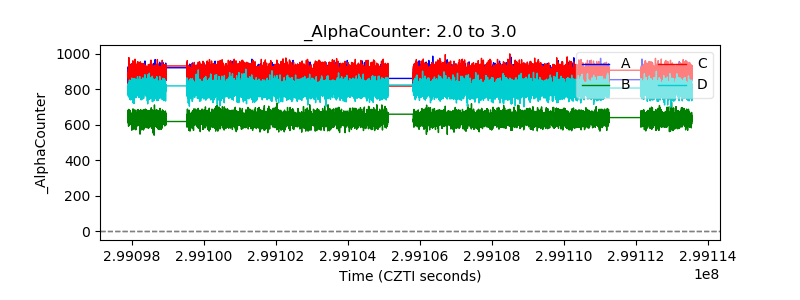

| Alpha Counter |  |

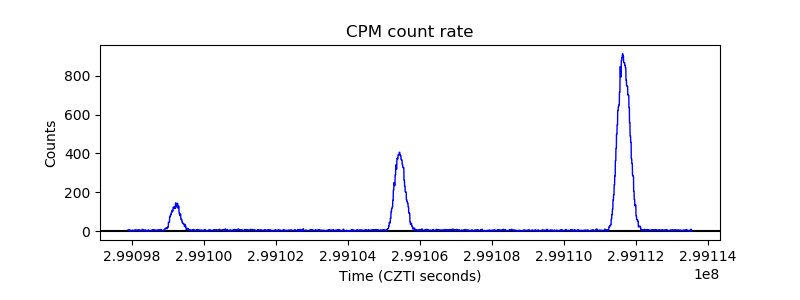

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
