| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_117T01_9000002998_20221cztM0_level2.evt | modeM0/AS1A05_117T01_9000002998_20221cztM0_level2_quad_clean.evt |
| Size (bytes) | 442,275,840 | 89,078,400 |
| Size | 421.8 MB | 85.0 MB |
| Events in quadrant A | 3,118,896 | 591,880 |
| Events in quadrant B | 3,339,379 | 590,673 |
| Events in quadrant C | 3,207,509 | 556,100 |
| Events in quadrant D | 3,332,875 | 551,894 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12474 | 1 |
| B | 0 | 13202 | 1 |
| C | 0 | 12797 | 1 |
| D | 0 | 13335 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 118 | 0 |
| B | 0 | 118 | 0 |
| C | 0 | 118 | 0 |
| D | 0 | 118 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5826 | 83 | 1.424648% |
| B | 5827 | 135 | 2.316801% |
| C | 5827 | 114 | 1.956410% |
| D | 5827 | 110 | 1.887764% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7121 | 5827 | 2 | 2 | 0.03% | 0.03% |  |
| B | 7122 | 5828 | 14 | 14 | 0.20% | 0.24% |  |
| C | 7122 | 5828 | 5 | 5 | 0.07% | 0.09% |  |
| D | 7122 | 5828 | 25 | 25 | 0.35% | 0.43% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 2 | 9143 | 51.88 | 805 | 791 | 161.0 |
| A | 9 | 143 | 8298 | 46.64 | 805 | 791 | 161.0 |
| A | 0 | 226 | 7038 | 38.81 | 805 | 791 | 161.0 |
| B | 10 | 245 | 105764 | 711.89 | 785 | 767 | 147.5 |
| B | 7 | 220 | 103236 | 694.75 | 785 | 767 | 147.5 |
| B | 0 | 198 | 22995 | 150.71 | 785 | 767 | 147.5 |
| C | 14 | 238 | 119733 | 677.77 | 761 | 768 | 175.5 |
| C | 3 | 233 | 115551 | 653.94 | 761 | 768 | 175.5 |
| C | 1 | 16 | 6306 | 31.55 | 761 | 768 | 175.5 |
| D | 11 | 176 | 141453 | 746.06 | 786 | 767 | 188.6 |
| D | 1 | 52 | 96913 | 509.86 | 786 | 767 | 188.6 |
| D | 13 | 104 | 42415 | 220.86 | 786 | 767 | 188.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

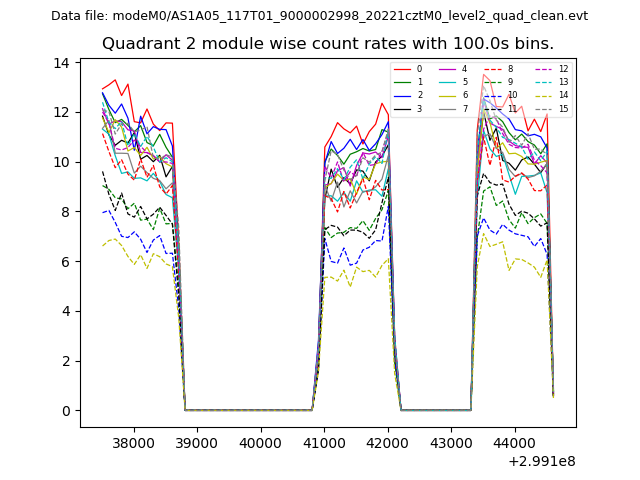

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

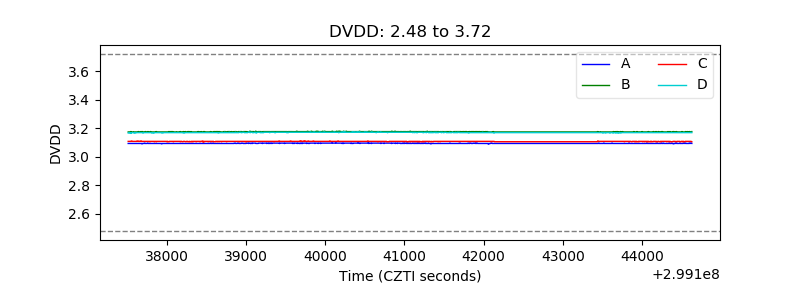

| D_VDD |  |

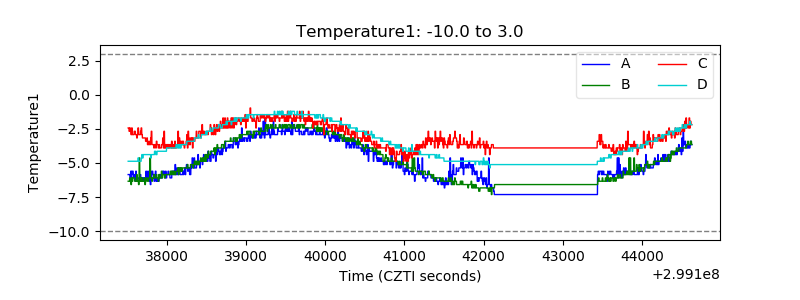

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

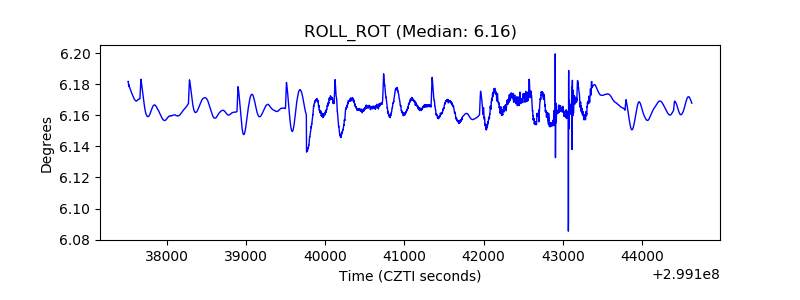

| _ROLL_ROT |  |

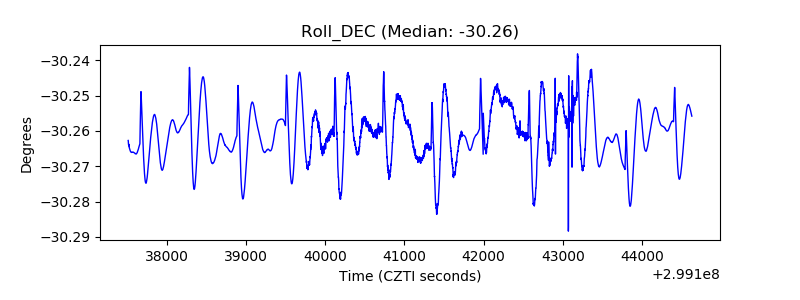

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
