| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_123T01_9000003000_20234cztM0_level2.evt | modeM0/AS1T03_123T01_9000003000_20234cztM0_level2_quad_clean.evt |
| Size (bytes) | 456,408,000 | 99,679,680 |
| Size | 435.3 MB | 95.1 MB |
| Events in quadrant A | 3,332,368 | 661,032 |
| Events in quadrant B | 3,388,484 | 671,992 |
| Events in quadrant C | 3,310,109 | 621,815 |
| Events in quadrant D | 3,358,828 | 619,842 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24 | 0 |
| B | 0 | 24 | 0 |
| C | 0 | 24 | 0 |
| D | 0 | 24 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13613 | 2 |
| B | 0 | 13791 | 2 |
| C | 0 | 13644 | 2 |
| D | 0 | 13930 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6363 | 80 | 1.257269% |
| B | 6364 | 115 | 1.807040% |
| C | 6364 | 124 | 1.948460% |
| D | 6364 | 87 | 1.367065% |

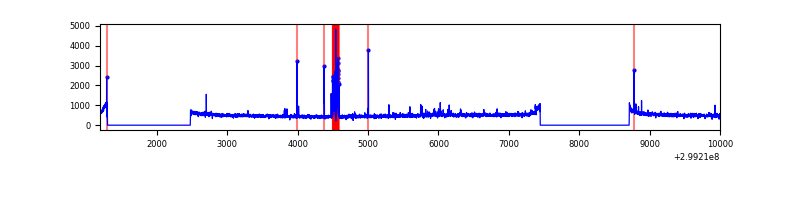

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8808 | 6365 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8809 | 6366 | 3 | 3 | 0.03% | 0.05% |  |
| C | 8809 | 6366 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8809 | 6366 | 39 | 39 | 0.44% | 0.61% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 7453 | 38.03 | 864 | 851 | 173.6 |
| A | 3 | 137 | 6683 | 33.59 | 864 | 851 | 173.6 |
| A | 12 | 194 | 5884 | 28.99 | 864 | 851 | 173.6 |
| B | 10 | 245 | 23920 | 143.7 | 856 | 838 | 160.6 |
| B | 12 | 111 | 19413 | 115.64 | 856 | 838 | 160.6 |
| B | 11 | 111 | 17010 | 100.68 | 856 | 838 | 160.6 |
| C | 14 | 238 | 129701 | 683.16 | 811 | 820 | 188.7 |
| C | 9 | 54 | 11253 | 55.3 | 811 | 820 | 188.7 |
| C | 3 | 233 | 7914 | 37.6 | 811 | 820 | 188.7 |
| D | 1 | 52 | 189905 | 947.08 | 830 | 810 | 199.7 |
| D | 2 | 234 | 29059 | 141.48 | 830 | 810 | 199.7 |
| D | 11 | 176 | 10909 | 50.58 | 830 | 810 | 199.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

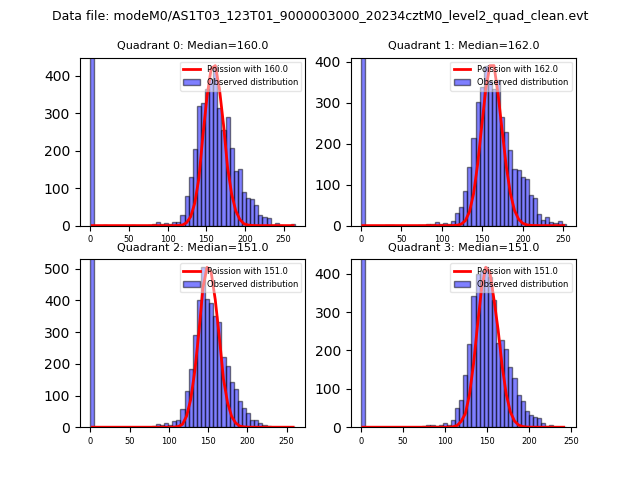

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

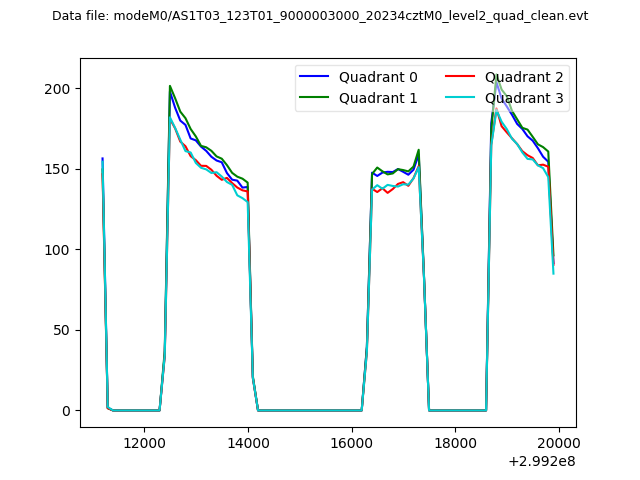

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

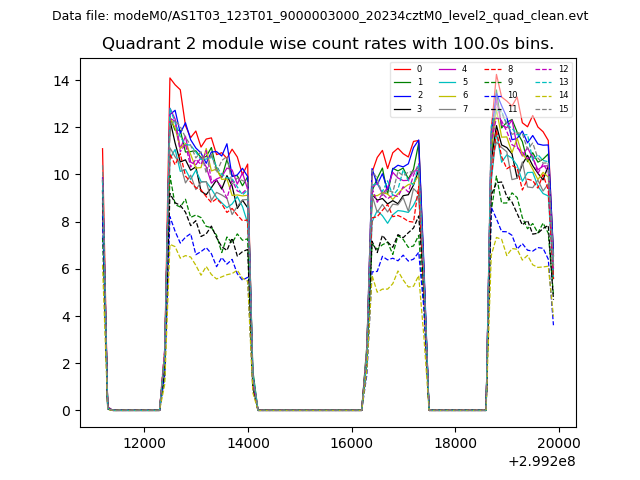

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

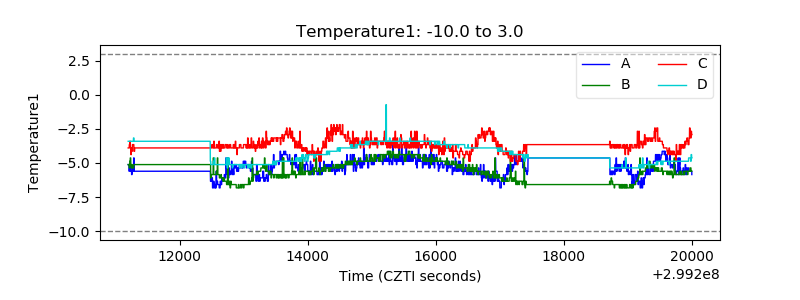

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

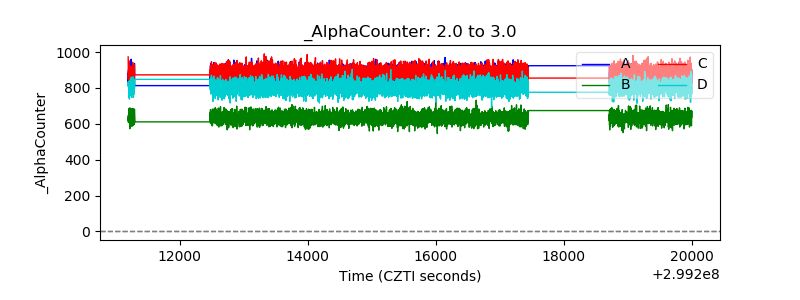

| Alpha Counter |  |
| _CPM_Rate |  |

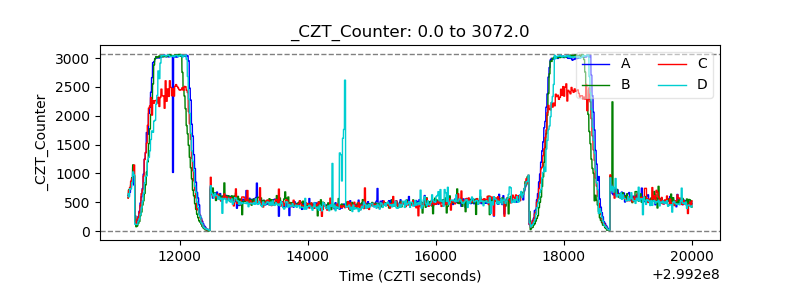

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

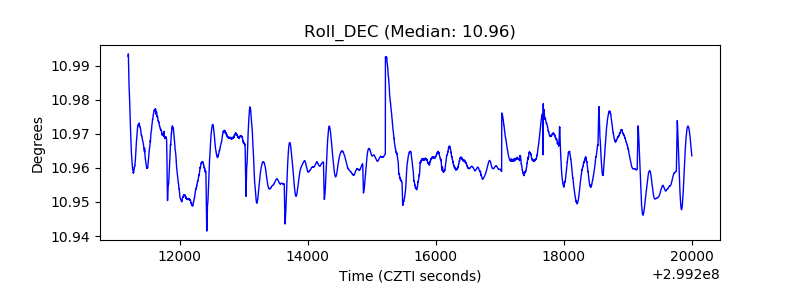

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
