| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_123T01_9000003000_20236cztM0_level2.evt | modeM0/AS1T03_123T01_9000003000_20236cztM0_level2_quad_clean.evt |
| Size (bytes) | 462,922,560 | 81,086,400 |
| Size | 441.5 MB | 77.3 MB |
| Events in quadrant A | 3,432,365 | 515,693 |
| Events in quadrant B | 3,411,076 | 526,028 |
| Events in quadrant C | 3,324,507 | 488,459 |
| Events in quadrant D | 3,425,257 | 487,231 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 15 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13731 | 2 |
| B | 0 | 13669 | 2 |
| C | 0 | 13416 | 2 |
| D | 0 | 13875 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6281 | 158 | 2.515523% |
| B | 6281 | 155 | 2.467760% |
| C | 6281 | 155 | 2.467760% |
| D | 6281 | 131 | 2.085655% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7516 | 6282 | 6 | 6 | 0.08% | 0.10% |  |
| B | 7516 | 6282 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7516 | 6282 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7516 | 6282 | 27 | 27 | 0.36% | 0.43% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 2 | 75079 | 430.77 | 872 | 856 | 172.3 |
| A | 0 | 226 | 7734 | 39.92 | 872 | 856 | 172.3 |
| A | 3 | 137 | 6848 | 34.78 | 872 | 856 | 172.3 |
| B | 10 | 245 | 23021 | 136.41 | 861 | 844 | 162.6 |
| B | 12 | 111 | 19402 | 114.15 | 861 | 844 | 162.6 |
| B | 11 | 111 | 17297 | 101.21 | 861 | 844 | 162.6 |
| C | 14 | 238 | 130478 | 688.56 | 814 | 824 | 188.3 |
| C | 3 | 233 | 16500 | 83.25 | 814 | 824 | 188.3 |
| C | 13 | 61 | 5680 | 25.79 | 814 | 824 | 188.3 |
| D | 11 | 176 | 173411 | 863.58 | 835 | 812 | 199.9 |
| D | 1 | 52 | 43582 | 214.0 | 835 | 812 | 199.9 |
| D | 2 | 234 | 26747 | 129.76 | 835 | 812 | 199.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

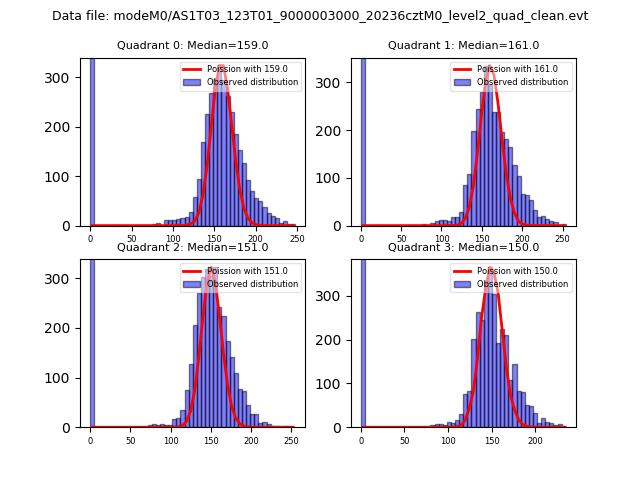

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
