| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_123T01_9000003000_20249cztM0_level2.evt | modeM0/AS1T03_123T01_9000003000_20249cztM0_level2_quad_clean.evt |
| Size (bytes) | 546,612,480 | 95,783,040 |
| Size | 521.3 MB | 91.3 MB |
| Events in quadrant A | 3,349,519 | 638,130 |
| Events in quadrant B | 3,345,908 | 651,304 |
| Events in quadrant C | 3,302,241 | 597,506 |
| Events in quadrant D | 6,127,605 | 572,100 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13585 | 2 |
| B | 0 | 13597 | 2 |
| C | 0 | 13497 | 2 |
| D | 0 | 22326 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6323 | 70 | 1.107069% |
| B | 6323 | 90 | 1.423375% |
| C | 6323 | 91 | 1.439190% |
| D | 6322 | 796 | 12.590952% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7583 | 6324 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7583 | 6324 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7583 | 6324 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7582 | 6323 | 902 | 902 | 11.90% | 14.27% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 253 | 22205 | 124.4 | 864 | 849 | 171.7 |
| A | 0 | 226 | 7520 | 38.86 | 864 | 849 | 171.7 |
| A | 3 | 137 | 6831 | 34.85 | 864 | 849 | 171.7 |
| B | 12 | 111 | 19142 | 113.79 | 853 | 835 | 160.9 |
| B | 11 | 111 | 17108 | 101.15 | 853 | 835 | 160.9 |
| B | 14 | 111 | 16208 | 95.55 | 853 | 835 | 160.9 |
| C | 14 | 238 | 128403 | 683.14 | 806 | 814 | 186.8 |
| C | 1 | 16 | 11135 | 55.26 | 806 | 814 | 186.8 |
| C | 5 | 4 | 9895 | 48.62 | 806 | 814 | 186.8 |
| D | 1 | 52 | 2720296 | 14187.59 | 802 | 781 | 191.7 |
| D | 11 | 176 | 347787 | 1810.31 | 802 | 781 | 191.7 |
| D | 2 | 234 | 24312 | 122.76 | 802 | 781 | 191.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

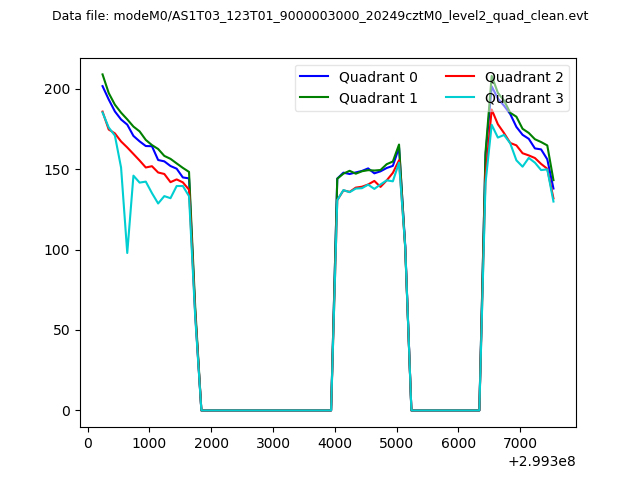

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

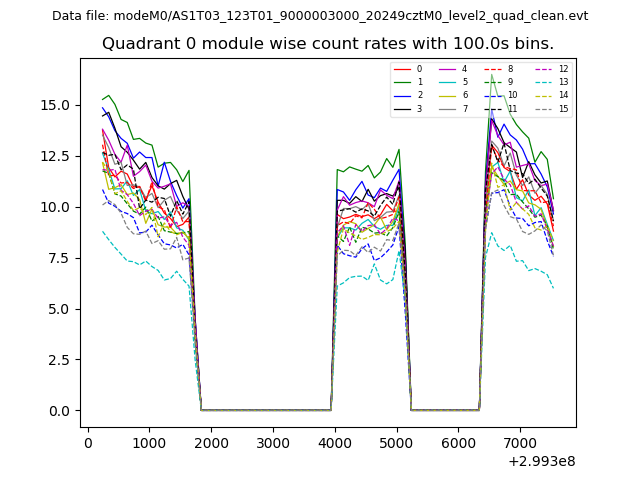

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

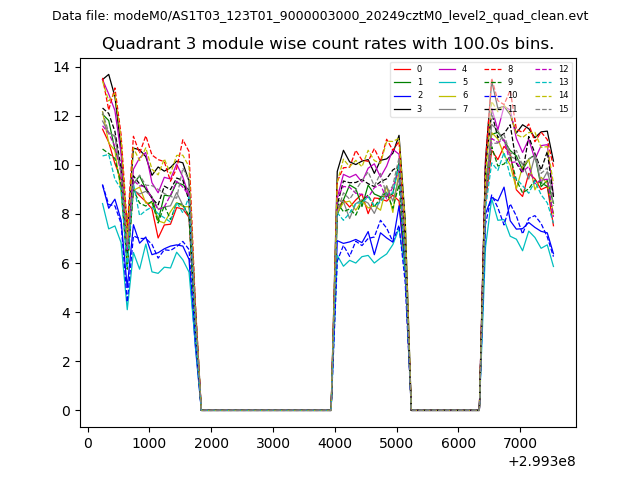

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

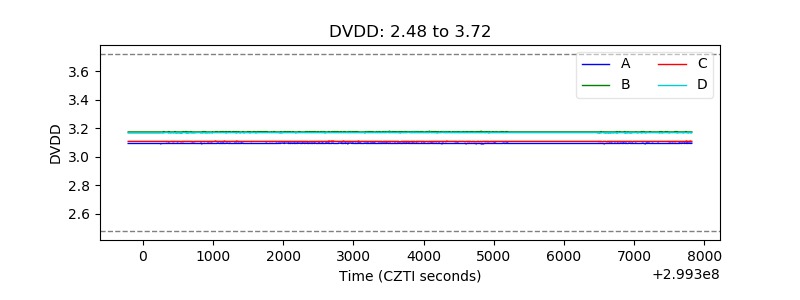

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

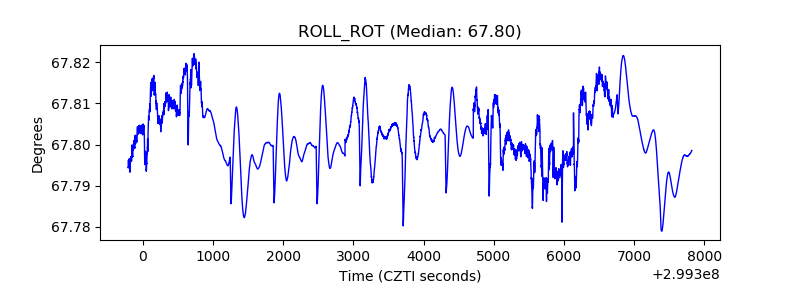

| _ROLL_ROT |  |
| _Roll_DEC |  |

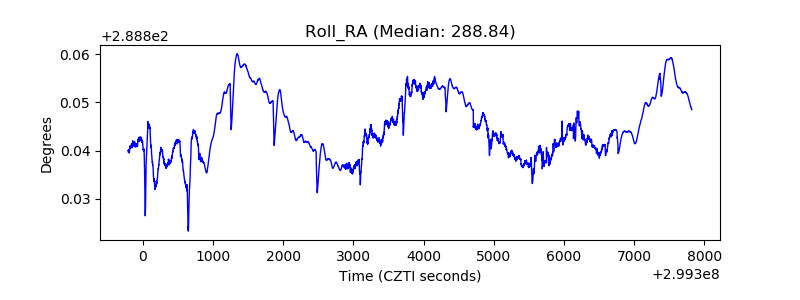

| _Roll_RA |  |

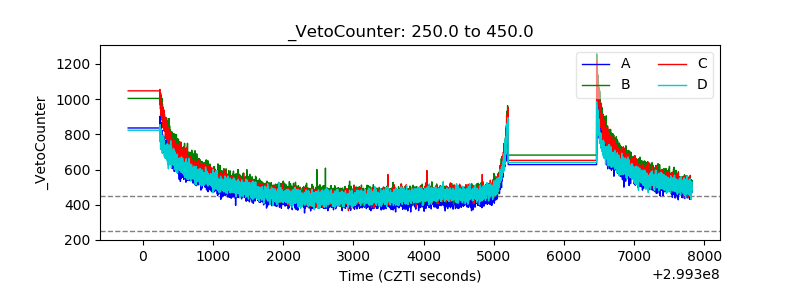

| Veto Counter |  |
