| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_117T01_9000003002_20251cztM0_level2.evt | modeM0/AS1A05_117T01_9000003002_20251cztM0_level2_quad_clean.evt |
| Size (bytes) | 515,220,480 | 83,021,760 |
| Size | 491.4 MB | 79.2 MB |
| Events in quadrant A | 3,640,085 | 533,134 |
| Events in quadrant B | 3,621,974 | 539,009 |
| Events in quadrant C | 3,360,153 | 505,259 |
| Events in quadrant D | 4,554,260 | 497,365 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14445 | 1 |
| B | 0 | 14337 | 1 |
| C | 0 | 13567 | 1 |
| D | 0 | 17445 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6294 | 161 | 2.557992% |
| B | 6294 | 162 | 2.573880% |
| C | 6295 | 106 | 1.683876% |
| D | 6295 | 356 | 5.655282% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7504 | 6296 | 46 | 46 | 0.61% | 0.73% |  |
| B | 7504 | 6296 | 37 | 37 | 0.49% | 0.59% |  |
| C | 7505 | 6297 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7504 | 6296 | 231 | 231 | 3.08% | 3.67% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 238 | 345305 | 2062.62 | 833 | 817 | 167.0 |
| A | 4 | 2 | 75794 | 448.92 | 833 | 817 | 167.0 |
| A | 10 | 253 | 10307 | 56.82 | 833 | 817 | 167.0 |
| B | 7 | 220 | 216970 | 1406.84 | 819 | 800 | 153.7 |
| B | 0 | 85 | 71708 | 461.47 | 819 | 800 | 153.7 |
| B | 0 | 230 | 26105 | 164.69 | 819 | 800 | 153.7 |
| C | 14 | 238 | 125404 | 678.68 | 790 | 795 | 183.6 |
| C | 3 | 9 | 124605 | 674.33 | 790 | 795 | 183.6 |
| C | 3 | 233 | 28026 | 148.31 | 790 | 795 | 183.6 |
| D | 1 | 52 | 1247140 | 6384.01 | 802 | 780 | 195.2 |
| D | 2 | 16 | 134887 | 686.91 | 802 | 780 | 195.2 |
| D | 7 | 238 | 50346 | 253.88 | 802 | 780 | 195.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

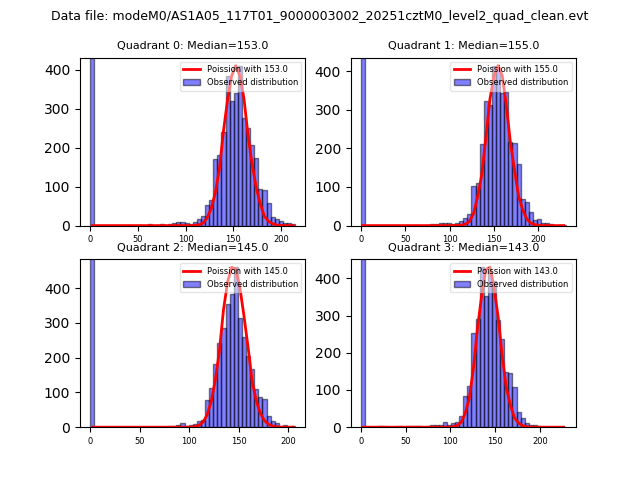

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

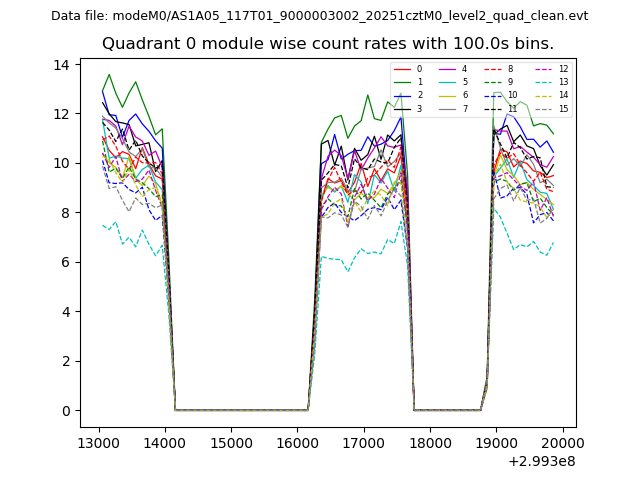

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

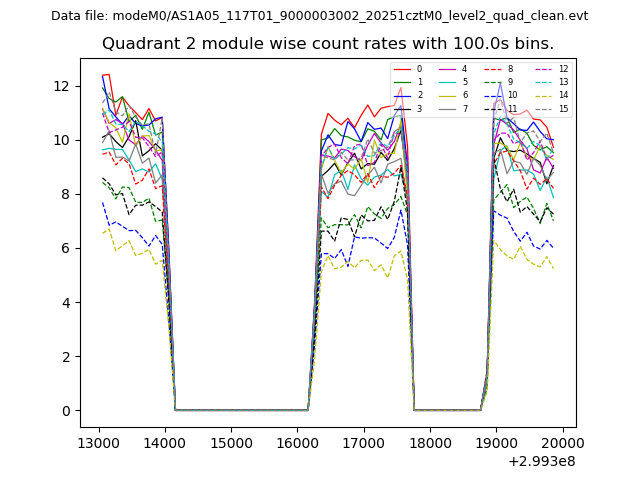

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

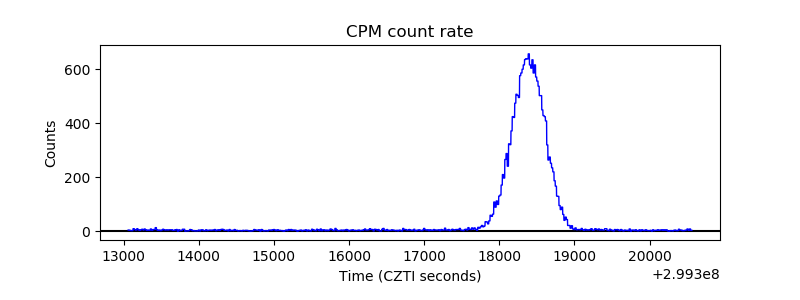

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

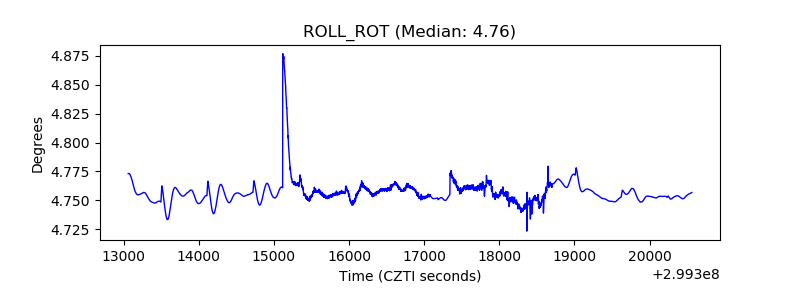

| _ROLL_ROT |  |
| _Roll_DEC |  |

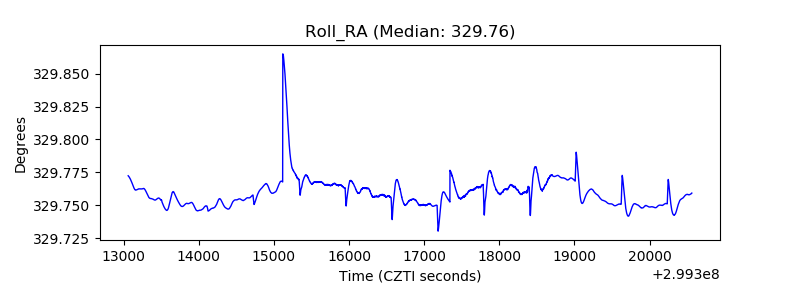

| _Roll_RA |  |
| Veto Counter |  |
