| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_117T01_9000003002_20261cztM0_level2.evt | modeM0/AS1A05_117T01_9000003002_20261cztM0_level2_quad_clean.evt |
| Size (bytes) | 541,543,680 | 98,976,960 |
| Size | 516.5 MB | 94.4 MB |
| Events in quadrant A | 3,427,319 | 647,462 |
| Events in quadrant B | 4,190,535 | 643,737 |
| Events in quadrant C | 3,347,259 | 632,897 |
| Events in quadrant D | 4,987,899 | 612,874 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21 | 0 |
| B | 0 | 21 | 0 |
| C | 0 | 21 | 0 |
| D | 0 | 21 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14395 | 3 |
| B | 0 | 16796 | 2 |
| C | 0 | 14022 | 2 |
| D | 0 | 19265 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6604 | 88 | 1.332526% |
| B | 6604 | 232 | 3.513022% |
| C | 6604 | 71 | 1.075106% |
| D | 6605 | 196 | 2.967449% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8684 | 6606 | 39 | 39 | 0.45% | 0.59% |  |
| B | 8684 | 6606 | 120 | 120 | 1.38% | 1.82% |  |
| C | 8684 | 6606 | 1 | 1 | 0.01% | 0.02% |  |
| D | 8685 | 6607 | 126 | 126 | 1.45% | 1.91% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 238 | 226810 | 1357.56 | 826 | 810 | 166.5 |
| A | 14 | 237 | 7411 | 39.65 | 826 | 810 | 166.5 |
| A | 9 | 143 | 7357 | 39.33 | 826 | 810 | 166.5 |
| B | 0 | 85 | 651234 | 4180.16 | 819 | 796 | 155.6 |
| B | 7 | 220 | 186059 | 1190.62 | 819 | 796 | 155.6 |
| B | 0 | 183 | 28058 | 175.2 | 819 | 796 | 155.6 |
| C | 14 | 238 | 126020 | 655.75 | 808 | 815 | 190.9 |
| C | 3 | 233 | 54603 | 281.71 | 808 | 815 | 190.9 |
| C | 0 | 207 | 10465 | 50.54 | 808 | 815 | 190.9 |
| D | 1 | 52 | 1154138 | 5871.69 | 809 | 786 | 196.4 |
| D | 2 | 16 | 578240 | 2939.81 | 809 | 786 | 196.4 |
| D | 12 | 6 | 101501 | 512.74 | 809 | 786 | 196.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

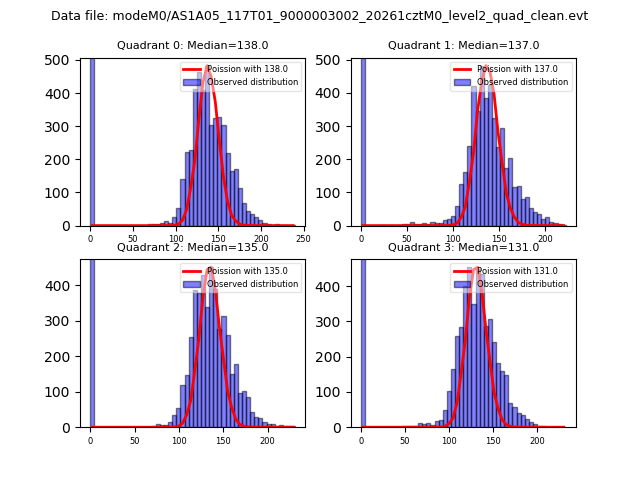

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

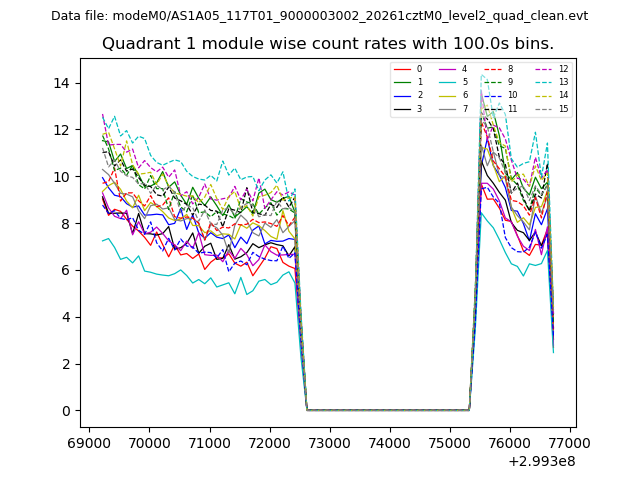

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

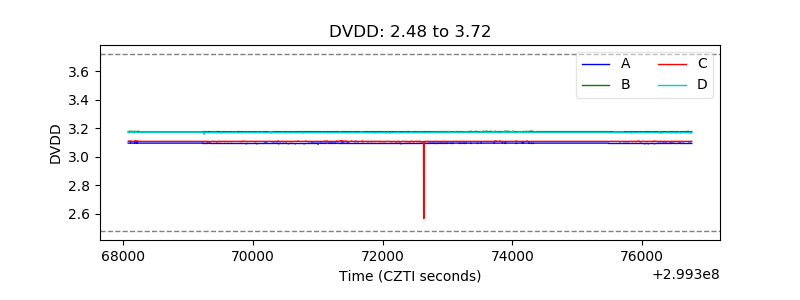

| D_VDD |  |
| Temperature 1 |  |

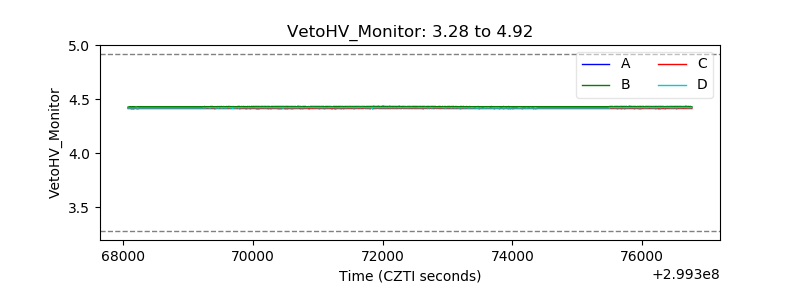

| Veto HV Monitor |  |
| Veto LLD |  |

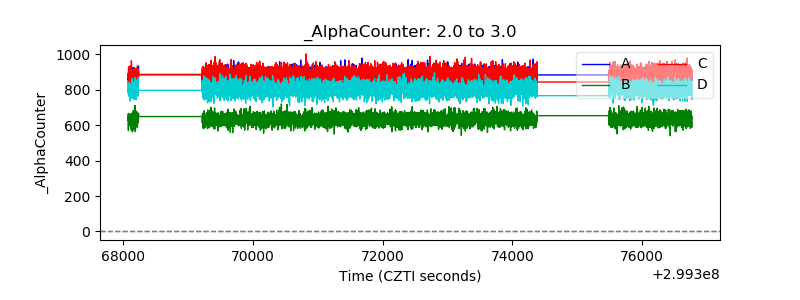

| Alpha Counter |  |
| _CPM_Rate |  |

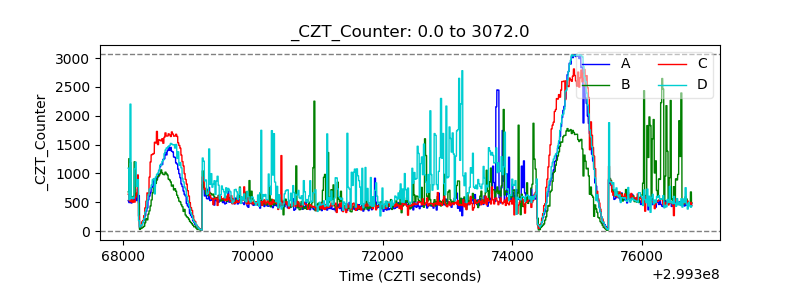

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
