| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_174T01_9000003008_20280cztM0_level2.evt | modeM0/AS1A05_174T01_9000003008_20280cztM0_level2_quad_clean.evt |
| Size (bytes) | 225,112,320 | 53,202,240 |
| Size | 214.7 MB | 50.7 MB |
| Events in quadrant A | 1,830,439 | 352,360 |
| Events in quadrant B | 1,542,299 | 363,618 |
| Events in quadrant C | 1,527,463 | 349,193 |
| Events in quadrant D | 1,720,902 | 341,258 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7162 | 1 |
| B | 0 | 6291 | 1 |
| C | 0 | 6180 | 1 |
| D | 0 | 6957 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 60 | 0 |
| B | 0 | 60 | 0 |
| C | 0 | 60 | 0 |
| D | 0 | 60 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 2860 | 155 | 5.419580% |
| B | 2860 | 79 | 2.762238% |
| C | 2860 | 76 | 2.657343% |
| D | 2860 | 95 | 3.321678% |

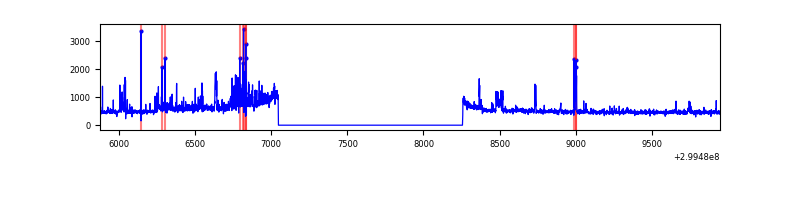

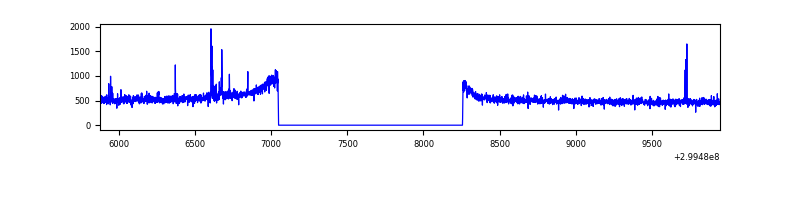

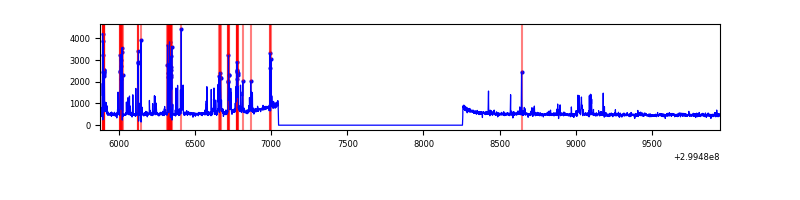

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 4070 | 2861 | 65 | 65 | 1.60% | 2.27% |  |
| B | 4070 | 2861 | 0 | 0 | 0.00% | 0.00% |  |
| C | 4070 | 2861 | 0 | 0 | 0.00% | 0.00% |  |
| D | 4070 | 2861 | 11 | 11 | 0.27% | 0.38% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 238 | 313518 | 4021.83 | 381 | 373 | 77.9 |
| A | 4 | 2 | 37664 | 478.94 | 381 | 373 | 77.9 |
| A | 14 | 254 | 8655 | 106.37 | 381 | 373 | 77.9 |
| B | 15 | 222 | 18066 | 232.54 | 385 | 376 | 76.1 |
| B | 12 | 111 | 8960 | 112.84 | 385 | 376 | 76.1 |
| B | 11 | 111 | 7916 | 99.11 | 385 | 376 | 76.1 |
| C | 14 | 238 | 58505 | 650.06 | 375 | 376 | 89.4 |
| C | 3 | 233 | 3838 | 38.72 | 375 | 376 | 89.4 |
| C | 13 | 61 | 2472 | 23.44 | 375 | 376 | 89.4 |
| D | 1 | 52 | 144420 | 1546.5 | 380 | 370 | 93.1 |
| D | 7 | 238 | 123351 | 1320.31 | 380 | 370 | 93.1 |
| D | 2 | 234 | 17230 | 181.0 | 380 | 370 | 93.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

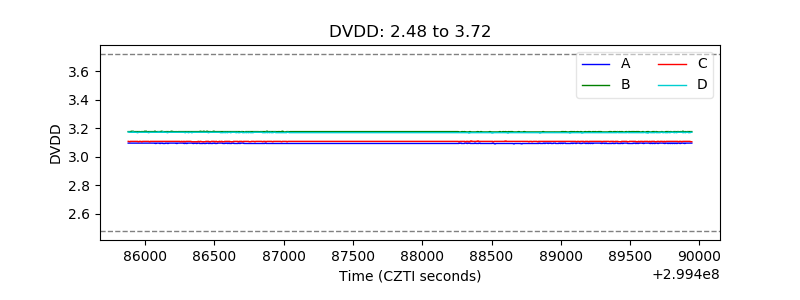

| D_VDD |  |

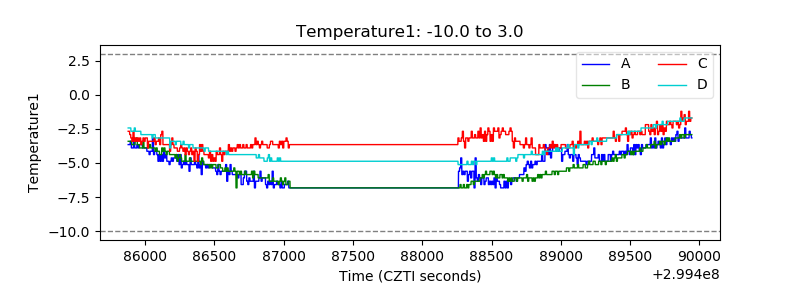

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

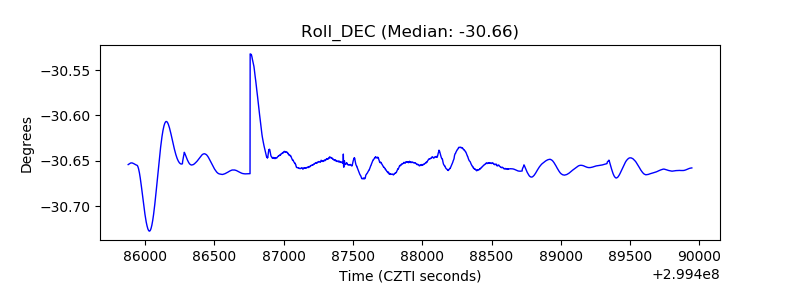

| _Roll_DEC |  |

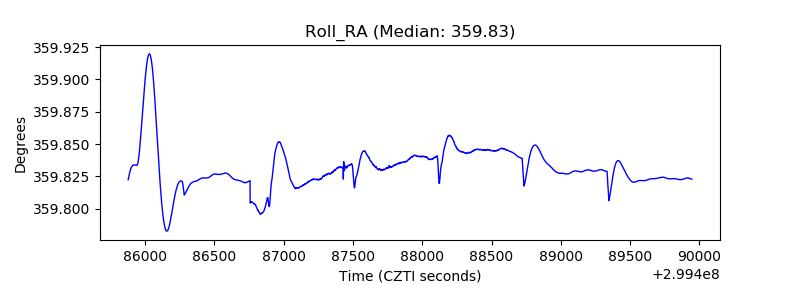

| _Roll_RA |  |

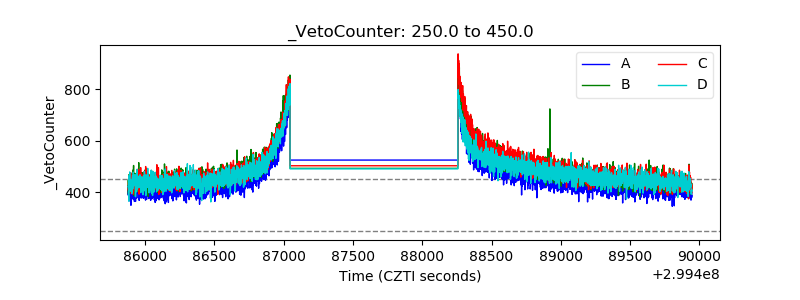

| Veto Counter |  |
