| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_174T01_9000003008_20281cztM0_level2.evt | modeM0/AS1A05_174T01_9000003008_20281cztM0_level2_quad_clean.evt |
| Size (bytes) | 509,699,520 | 79,200,000 |
| Size | 486.1 MB | 75.5 MB |
| Events in quadrant A | 3,451,964 | 502,807 |
| Events in quadrant B | 3,434,054 | 515,857 |
| Events in quadrant C | 3,025,637 | 495,775 |
| Events in quadrant D | 5,105,791 | 452,758 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14010 | 1 |
| B | 0 | 13946 | 1 |
| C | 0 | 12678 | 1 |
| D | 0 | 19211 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6169 | 164 | 2.658454% |
| B | 6169 | 145 | 2.350462% |
| C | 6170 | 76 | 1.231767% |
| D | 6170 | 776 | 12.576985% |

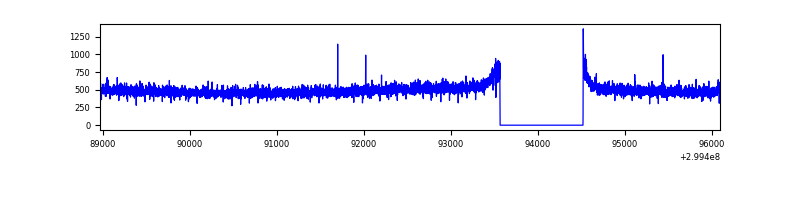

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7124 | 6170 | 58 | 58 | 0.81% | 0.94% |  |
| B | 7124 | 6170 | 69 | 69 | 0.97% | 1.12% |  |
| C | 7125 | 6171 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7125 | 6171 | 652 | 652 | 9.15% | 10.57% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 238 | 362193 | 2342.52 | 761 | 744 | 154.3 |
| A | 4 | 2 | 80054 | 514.0 | 761 | 744 | 154.3 |
| A | 8 | 205 | 48655 | 310.51 | 761 | 744 | 154.3 |
| B | 4 | 142 | 329729 | 2282.63 | 755 | 735 | 144.1 |
| B | 0 | 197 | 76566 | 526.13 | 755 | 735 | 144.1 |
| B | 7 | 220 | 30634 | 207.44 | 755 | 735 | 144.1 |
| C | 14 | 238 | 117265 | 676.61 | 736 | 740 | 172.2 |
| C | 3 | 233 | 18980 | 105.91 | 736 | 740 | 172.2 |
| C | 0 | 207 | 8529 | 45.23 | 736 | 740 | 172.2 |
| D | 1 | 52 | 2155922 | 12208.29 | 726 | 708 | 176.5 |
| D | 7 | 238 | 86760 | 487.44 | 726 | 708 | 176.5 |
| D | 13 | 249 | 78977 | 443.36 | 726 | 708 | 176.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

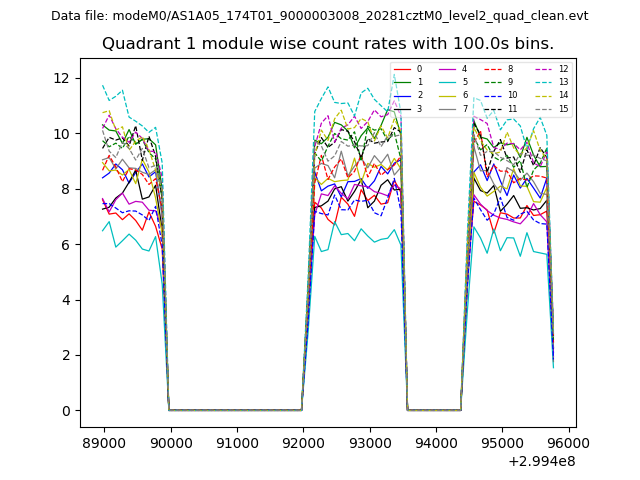

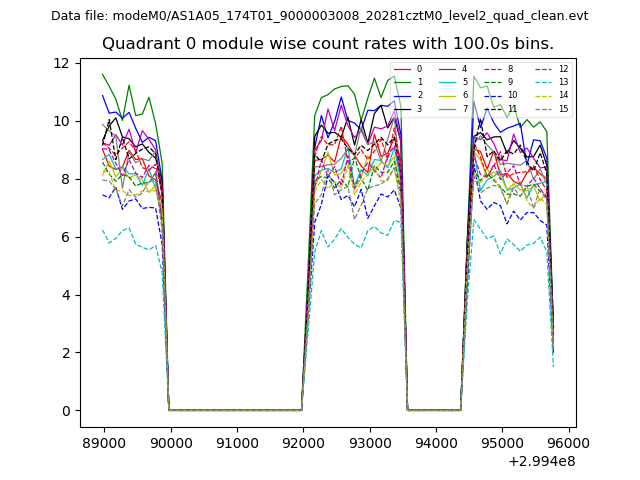

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

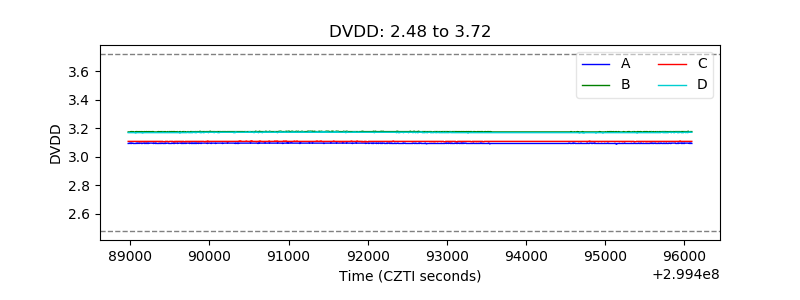

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

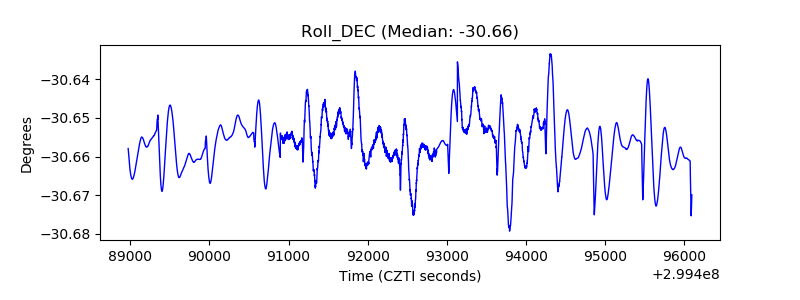

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

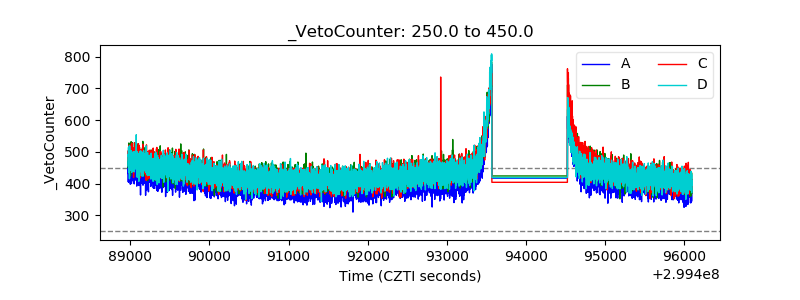

| Veto Counter |  |
