| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_174T01_9000003008_20283cztM0_level2.evt | modeM0/AS1A05_174T01_9000003008_20283cztM0_level2_quad_clean.evt |
| Size (bytes) | 654,707,520 | 88,706,880 |
| Size | 624.4 MB | 84.6 MB |
| Events in quadrant A | 3,751,715 | 548,318 |
| Events in quadrant B | 4,443,199 | 557,905 |
| Events in quadrant C | 3,901,831 | 539,301 |
| Events in quadrant D | 7,215,910 | 511,090 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15891 | 1 |
| B | 0 | 18007 | 1 |
| C | 0 | 16112 | 3 |
| D | 0 | 26667 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 154 | 0 |
| B | 0 | 154 | 0 |
| C | 0 | 154 | 0 |
| D | 0 | 154 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7607 | 179 | 2.353096% |
| B | 7608 | 217 | 2.852261% |
| C | 7607 | 151 | 1.985014% |
| D | 7607 | 1026 | 13.487577% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7882 | 7608 | 7 | 7 | 0.09% | 0.09% |  |
| B | 7883 | 7609 | 21 | 21 | 0.27% | 0.28% |  |
| C | 7882 | 7608 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7882 | 7608 | 756 | 756 | 9.59% | 9.94% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 205 | 73831 | 382.5 | 936 | 915 | 190.6 |
| A | 14 | 238 | 33310 | 169.94 | 936 | 915 | 190.6 |
| A | 4 | 2 | 24991 | 126.3 | 936 | 915 | 190.6 |
| B | 0 | 197 | 225958 | 1261.46 | 926 | 901 | 178.4 |
| B | 4 | 142 | 208009 | 1160.85 | 926 | 901 | 178.4 |
| B | 7 | 220 | 189074 | 1054.72 | 926 | 901 | 178.4 |
| C | 3 | 233 | 252602 | 1193.37 | 897 | 905 | 210.9 |
| C | 14 | 238 | 137413 | 647.22 | 897 | 905 | 210.9 |
| C | 0 | 207 | 6374 | 25.93 | 897 | 905 | 210.9 |
| D | 1 | 52 | 3818434 | 18049.63 | 865 | 840 | 211.5 |
| D | 2 | 234 | 49413 | 229.65 | 865 | 840 | 211.5 |
| D | 7 | 238 | 40775 | 188.81 | 865 | 840 | 211.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

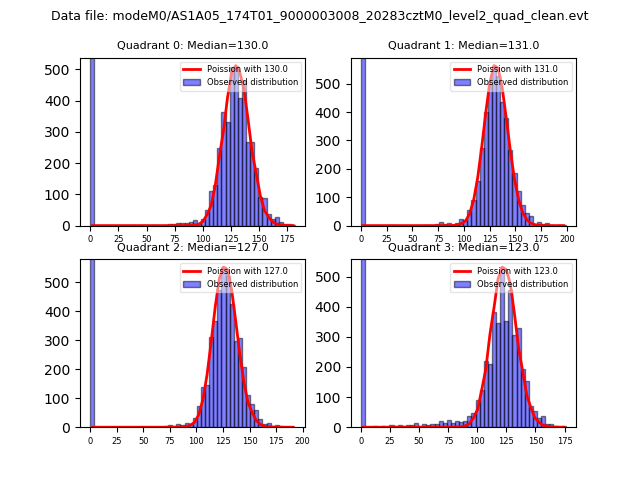

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
