| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_174T01_9000003008_20291cztM0_level2.evt | modeM0/AS1A05_174T01_9000003008_20291cztM0_level2_quad_clean.evt |
| Size (bytes) | 449,519,040 | 105,494,400 |
| Size | 428.7 MB | 100.6 MB |
| Events in quadrant A | 3,252,956 | 688,012 |
| Events in quadrant B | 3,324,907 | 714,874 |
| Events in quadrant C | 3,163,671 | 690,711 |
| Events in quadrant D | 3,453,116 | 670,676 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13452 | 2 |
| B | 0 | 13884 | 3 |
| C | 0 | 13243 | 2 |
| D | 0 | 14131 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6170 | 16 | 0.259319% |
| B | 6169 | 59 | 0.956395% |
| C | 6169 | 52 | 0.842924% |
| D | 6169 | 48 | 0.778084% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7425 | 6171 | 6 | 6 | 0.08% | 0.10% |  |
| B | 7424 | 6170 | 13 | 13 | 0.18% | 0.21% |  |
| C | 7424 | 6170 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7424 | 6170 | 41 | 41 | 0.55% | 0.66% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 205 | 89292 | 558.9 | 787 | 771 | 158.4 |
| A | 9 | 143 | 56947 | 354.68 | 787 | 771 | 158.4 |
| A | 14 | 238 | 52484 | 326.5 | 787 | 771 | 158.4 |
| B | 7 | 220 | 134347 | 901.98 | 793 | 773 | 148.1 |
| B | 0 | 198 | 26248 | 172.02 | 793 | 773 | 148.1 |
| B | 0 | 230 | 23626 | 154.32 | 793 | 773 | 148.1 |
| C | 14 | 238 | 121973 | 670.24 | 777 | 783 | 180.8 |
| C | 0 | 207 | 6910 | 33.89 | 777 | 783 | 180.8 |
| C | 13 | 61 | 5436 | 25.73 | 777 | 783 | 180.8 |
| D | 1 | 52 | 444808 | 2353.2 | 781 | 760 | 188.7 |
| D | 2 | 234 | 30200 | 156.01 | 781 | 760 | 188.7 |
| D | 7 | 223 | 20108 | 102.53 | 781 | 760 | 188.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

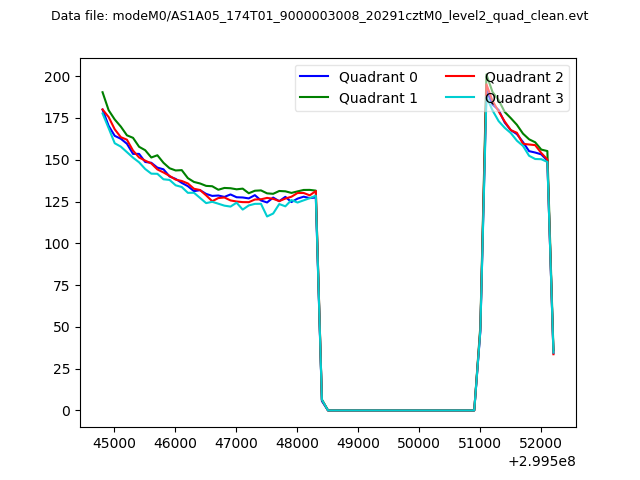

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

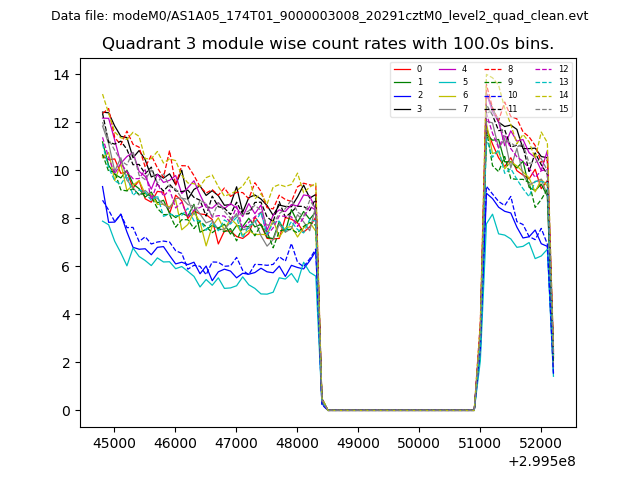

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

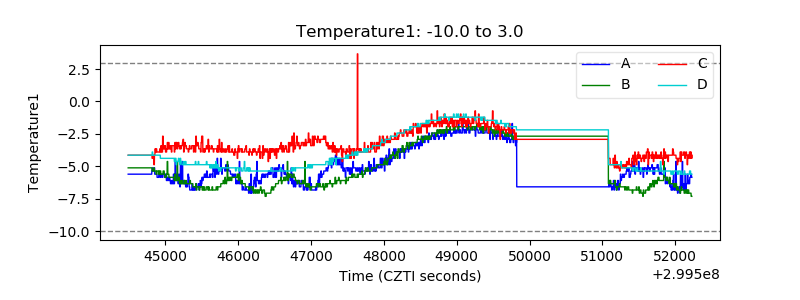

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

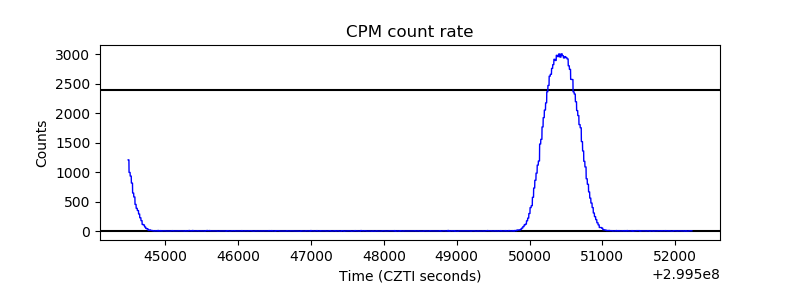

| _CPM_Rate |  |

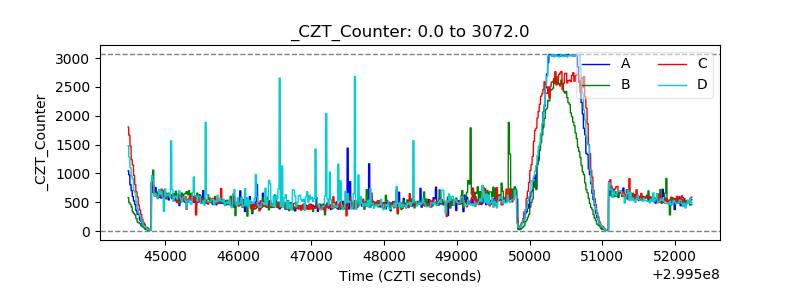

| CZT Counter |  |
| +2.5 Volts monitor |  |

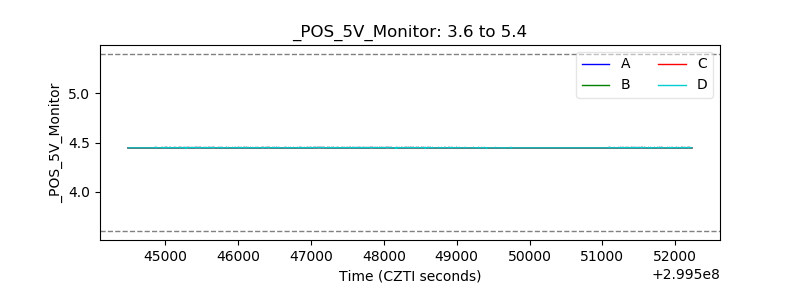

| +5 Volts monitor |  |

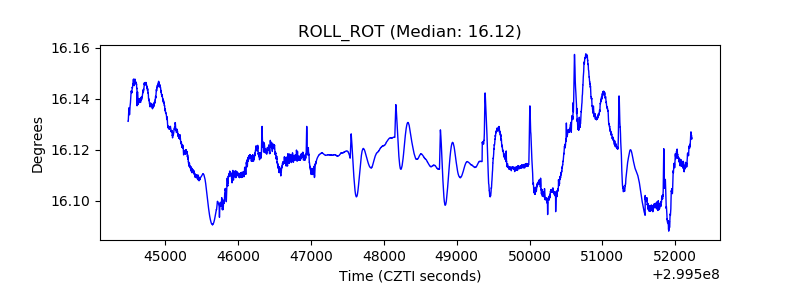

| _ROLL_ROT |  |
| _Roll_DEC |  |

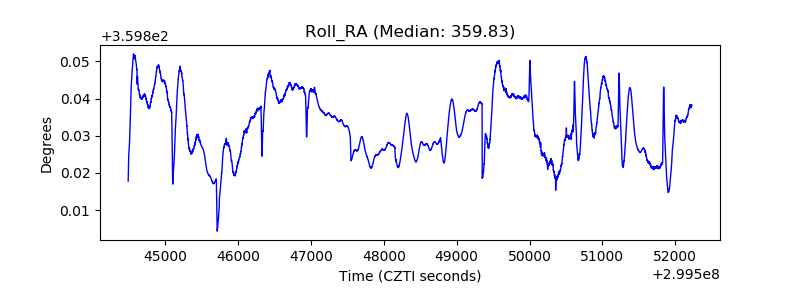

| _Roll_RA |  |
| Veto Counter |  |
