| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_174T01_9000003008_20295cztM0_level2.evt | modeM0/AS1A05_174T01_9000003008_20295cztM0_level2_quad_clean.evt |
| Size (bytes) | 489,611,520 | 100,820,160 |
| Size | 466.9 MB | 96.1 MB |
| Events in quadrant A | 3,422,102 | 652,410 |
| Events in quadrant B | 3,569,865 | 661,859 |
| Events in quadrant C | 3,526,713 | 638,553 |
| Events in quadrant D | 3,847,581 | 626,853 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14270 | 2 |
| B | 0 | 14803 | 2 |
| C | 0 | 14538 | 2 |
| D | 0 | 15828 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6805 | 91 | 1.337252% |
| B | 6805 | 132 | 1.939750% |
| C | 6805 | 124 | 1.822190% |
| D | 6805 | 149 | 2.189566% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7900 | 6807 | 7 | 7 | 0.09% | 0.10% |  |
| B | 7900 | 6807 | 23 | 23 | 0.29% | 0.34% |  |
| C | 7900 | 6807 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7900 | 6807 | 72 | 72 | 0.91% | 1.06% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 96 | 27264 | 151.42 | 868 | 853 | 174.4 |
| A | 8 | 205 | 17376 | 94.73 | 868 | 853 | 174.4 |
| A | 14 | 238 | 15325 | 82.97 | 868 | 853 | 174.4 |
| B | 0 | 230 | 77059 | 468.93 | 854 | 833 | 162.6 |
| B | 7 | 220 | 65139 | 395.6 | 854 | 833 | 162.6 |
| B | 3 | 64 | 60814 | 369.0 | 854 | 833 | 162.6 |
| C | 14 | 238 | 129399 | 660.44 | 834 | 839 | 194.7 |
| C | 3 | 247 | 95582 | 486.72 | 834 | 839 | 194.7 |
| C | 0 | 207 | 21304 | 105.13 | 834 | 839 | 194.7 |
| D | 1 | 52 | 565160 | 2740.86 | 854 | 831 | 205.9 |
| D | 5 | 222 | 36696 | 174.19 | 854 | 831 | 205.9 |
| D | 2 | 234 | 25088 | 117.81 | 854 | 831 | 205.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

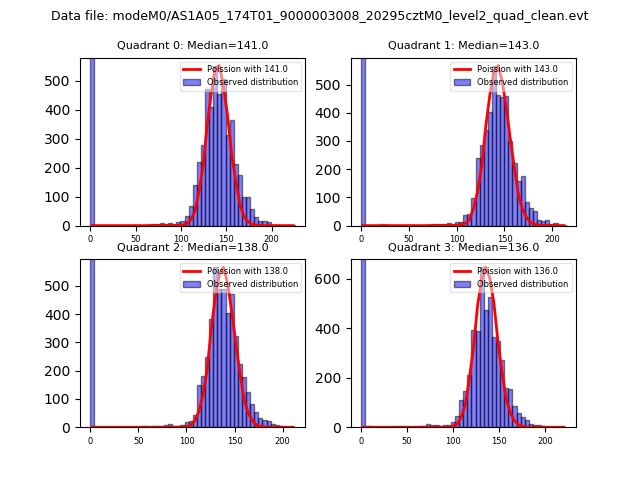

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

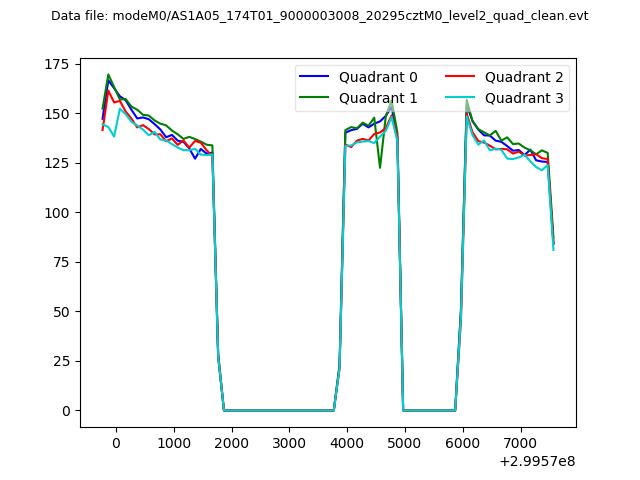

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

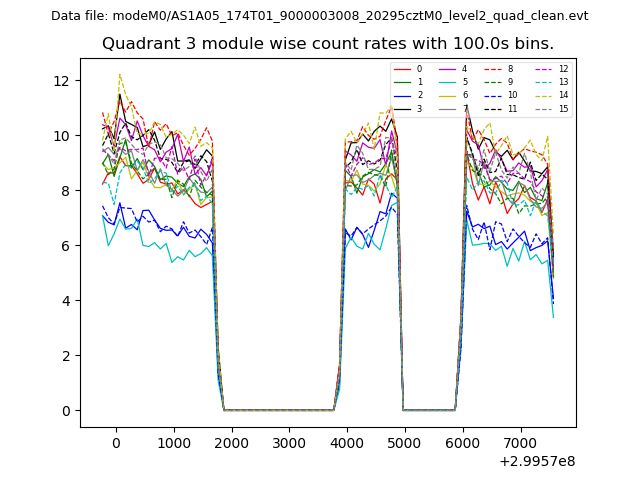

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

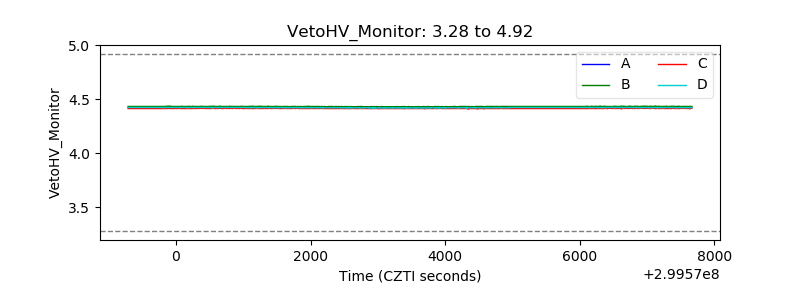

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

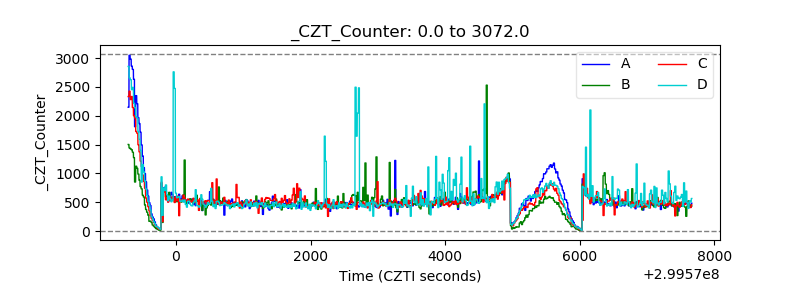

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

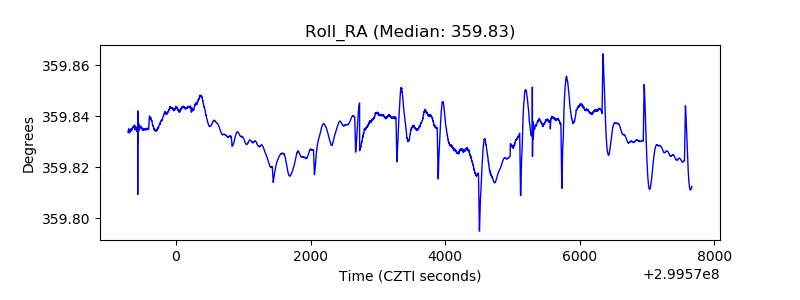

| _Roll_RA |  |

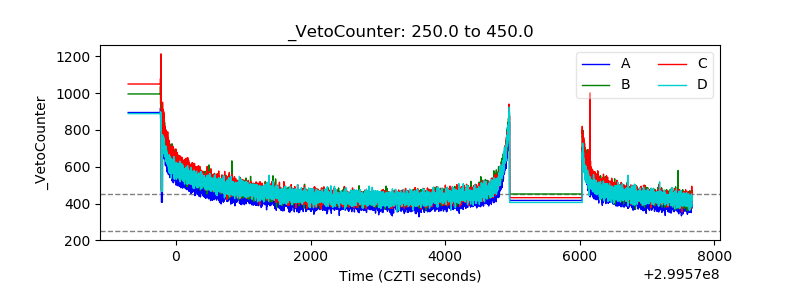

| Veto Counter |  |
