| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_174T01_9000003008_20309cztM0_level2.evt | modeM0/AS1A05_174T01_9000003008_20309cztM0_level2_quad_clean.evt |
| Size (bytes) | 285,364,800 | 51,696,000 |
| Size | 272.1 MB | 49.3 MB |
| Events in quadrant A | 2,165,855 | 323,767 |
| Events in quadrant B | 2,162,620 | 331,173 |
| Events in quadrant C | 1,919,284 | 318,300 |
| Events in quadrant D | 2,125,328 | 313,871 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 1 | 140280041794440 | 46 |
| B | 1 | -1 | -1 |
| C | 1 | -1 | -1 |
| D | 1 | -1 | -1 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10700 | 1893 |
| B | 0 | 10619 | 1812 |
| C | 0 | 10379 | 2347 |
| D | 0 | 10804 | 1980 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 95 | 19 |
| B | 0 | 96 | 18 |
| C | 0 | 98 | 20 |
| D | 0 | 95 | 17 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 3940 | 50 | 1.269036% |
| B | 3961 | 73 | 1.842969% |
| C | 3936 | 23 | 0.584350% |
| D | 3939 | 28 | 0.710840% |

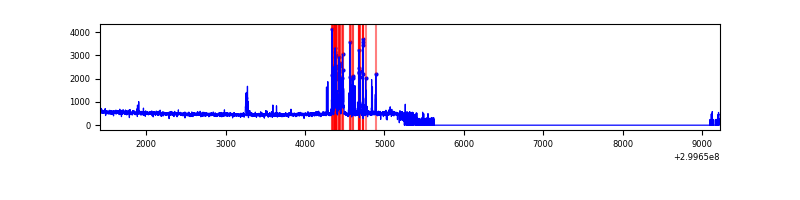

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7809 | 4036 | 28 | 28 | 0.36% | 0.69% |  |
| B | 7802 | 4060 | 42 | 42 | 0.54% | 1.03% |  |
| C | 7797 | 4024 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7809 | 4032 | 23 | 23 | 0.29% | 0.57% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 238 | 176634 | 1807.83 | 484 | 475 | 97.4 |
| A | 9 | 143 | 103010 | 1052.26 | 484 | 475 | 97.4 |
| A | 8 | 205 | 19035 | 190.47 | 484 | 475 | 97.4 |
| B | 7 | 220 | 145300 | 1588.47 | 480 | 469 | 91.2 |
| B | 4 | 142 | 83988 | 916.01 | 480 | 469 | 91.2 |
| B | 0 | 230 | 22234 | 238.71 | 480 | 469 | 91.2 |
| C | 14 | 238 | 75677 | 679.86 | 471 | 476 | 110.6 |
| C | 13 | 61 | 3225 | 24.85 | 471 | 476 | 110.6 |
| C | 3 | 9 | 2670 | 19.83 | 471 | 476 | 110.6 |
| D | 1 | 52 | 216722 | 1848.23 | 480 | 468 | 117.0 |
| D | 7 | 96 | 36550 | 308.38 | 480 | 468 | 117.0 |
| D | 2 | 120 | 19418 | 161.96 | 480 | 468 | 117.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

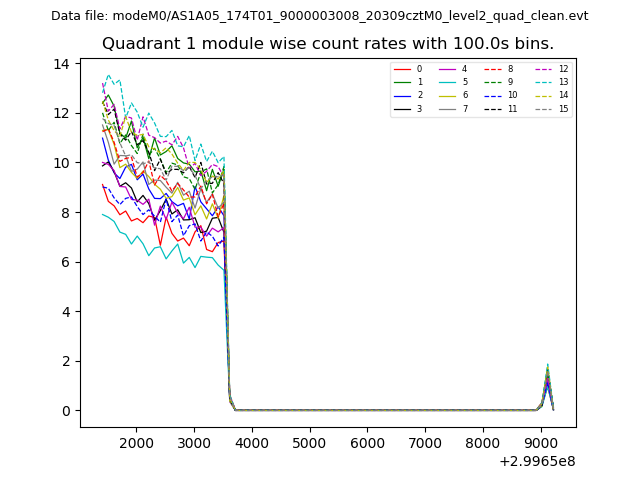

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

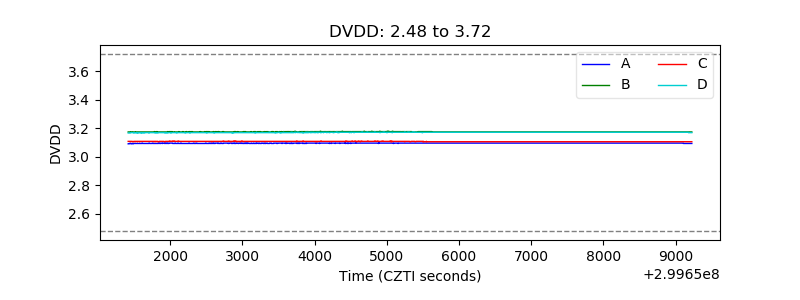

| D_VDD |  |

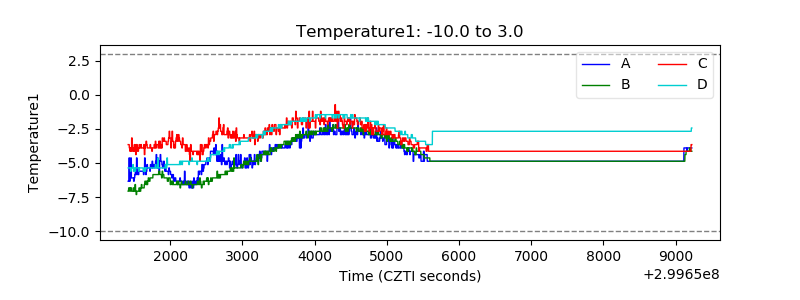

| Temperature 1 |  |

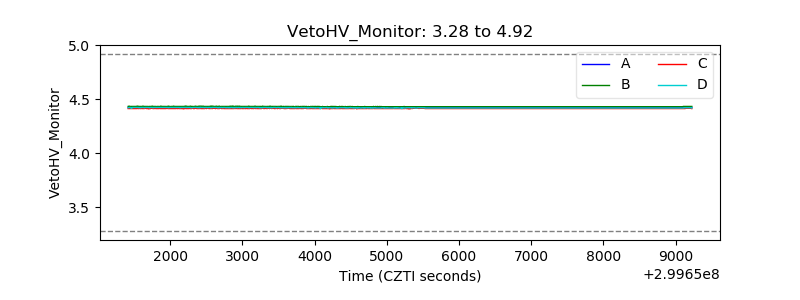

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

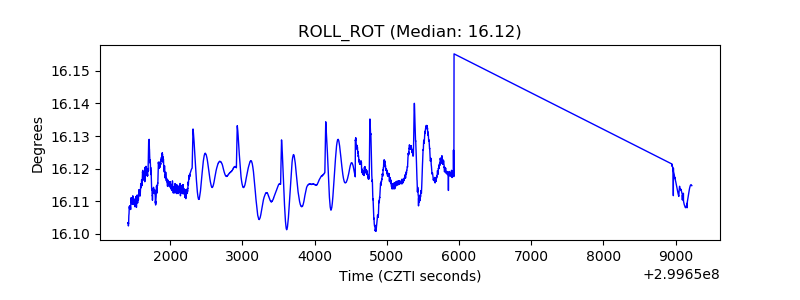

| _ROLL_ROT |  |

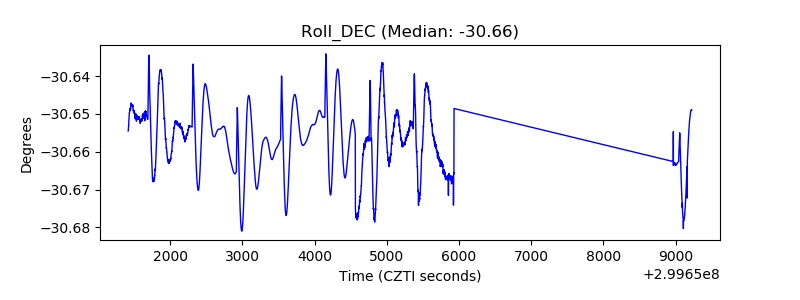

| _Roll_DEC |  |

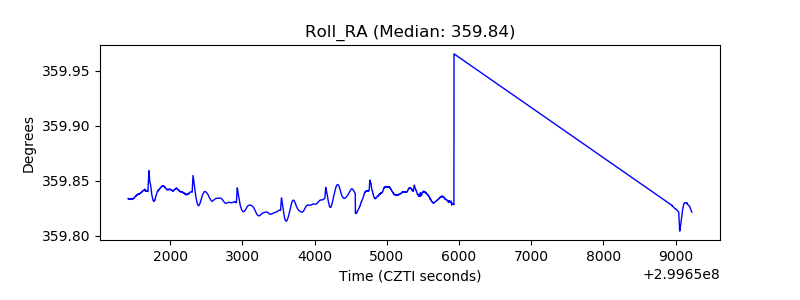

| _Roll_RA |  |
| Veto Counter |  |
