| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_174T01_9000003008_20313cztM0_level2.evt | modeM0/AS1A05_174T01_9000003008_20313cztM0_level2_quad_clean.evt |
| Size (bytes) | 747,083,520 | 85,536,000 |
| Size | 712.5 MB | 81.6 MB |
| Events in quadrant A | 3,919,315 | 532,616 |
| Events in quadrant B | 4,127,765 | 544,087 |
| Events in quadrant C | 7,405,410 | 507,081 |
| Events in quadrant D | 6,657,066 | 474,430 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6 | 0 |
| B | 0 | 6 | 0 |
| C | 0 | 6 | 0 |
| D | 0 | 6 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16529 | 2 |
| B | 0 | 17099 | 2 |
| C | 0 | 27321 | 2 |
| D | 0 | 25083 | 3 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 156 | 0 |
| B | 0 | 156 | 0 |
| C | 0 | 156 | 0 |
| D | 0 | 156 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7646 | 248 | 3.243526% |
| B | 7646 | 293 | 3.832069% |
| C | 7646 | 741 | 9.691342% |
| D | 7646 | 862 | 11.273869% |

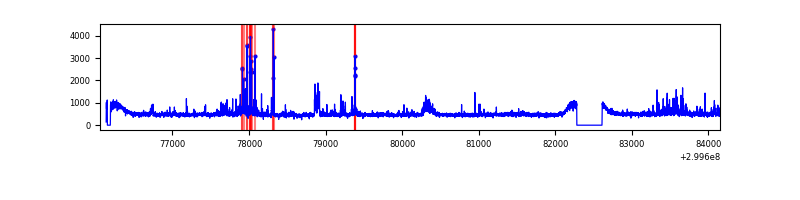

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8016 | 7647 | 13 | 13 | 0.16% | 0.17% |  |
| B | 8016 | 7648 | 19 | 19 | 0.24% | 0.25% |  |
| C | 8016 | 7648 | 224 | 224 | 2.79% | 2.93% |  |
| D | 8096 | 7648 | 410 | 410 | 5.06% | 5.36% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 238 | 121642 | 624.55 | 945 | 922 | 193.3 |
| A | 12 | 96 | 56664 | 288.39 | 945 | 922 | 193.3 |
| A | 4 | 2 | 40694 | 205.76 | 945 | 922 | 193.3 |
| B | 7 | 220 | 120236 | 652.53 | 937 | 913 | 182.9 |
| B | 0 | 197 | 81757 | 442.1 | 937 | 913 | 182.9 |
| B | 0 | 230 | 68410 | 369.11 | 937 | 913 | 182.9 |
| C | 3 | 9 | 3760961 | 17945.93 | 890 | 897 | 209.5 |
| C | 14 | 238 | 137262 | 650.84 | 890 | 897 | 209.5 |
| C | 3 | 233 | 40305 | 188.09 | 890 | 897 | 209.5 |
| D | 5 | 222 | 3116838 | 14285.1 | 888 | 861 | 218.1 |
| D | 1 | 52 | 114982 | 523.18 | 888 | 861 | 218.1 |
| D | 2 | 234 | 30183 | 134.43 | 888 | 861 | 218.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

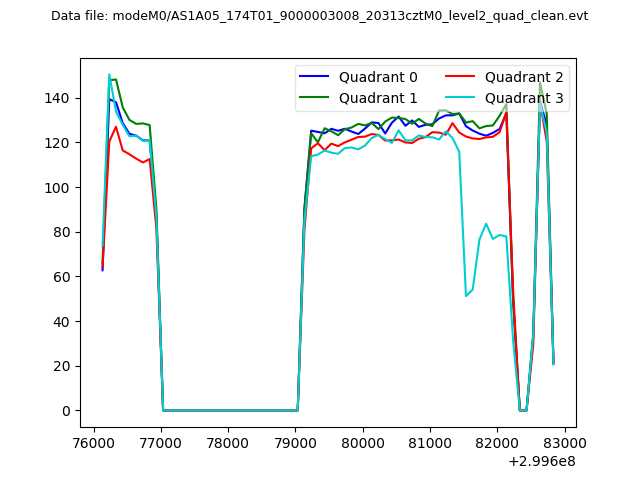

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

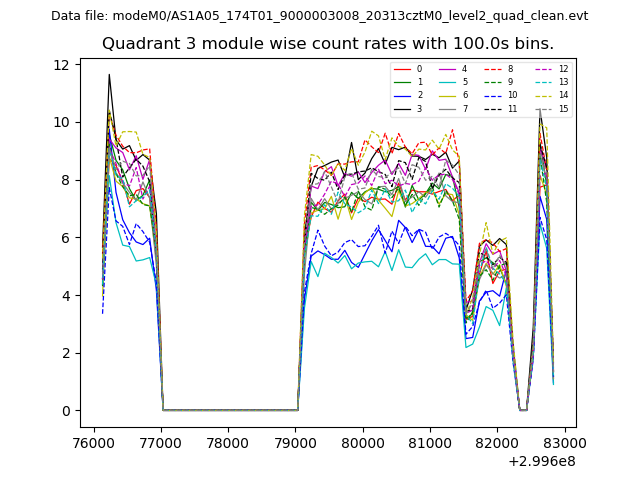

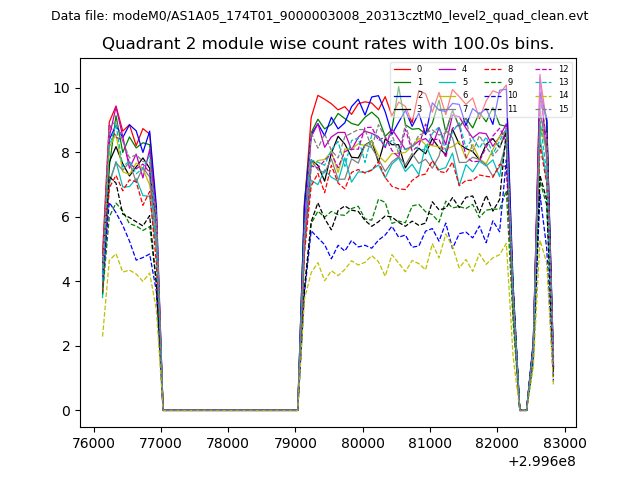

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

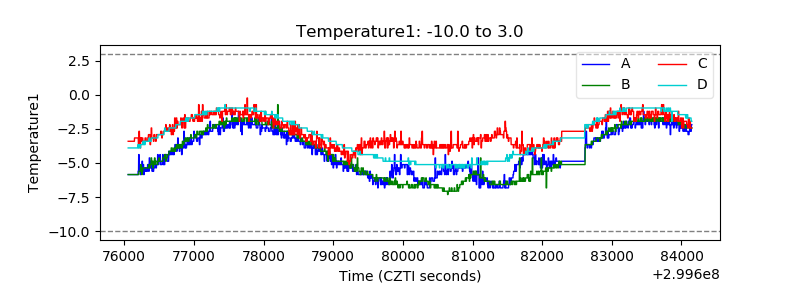

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

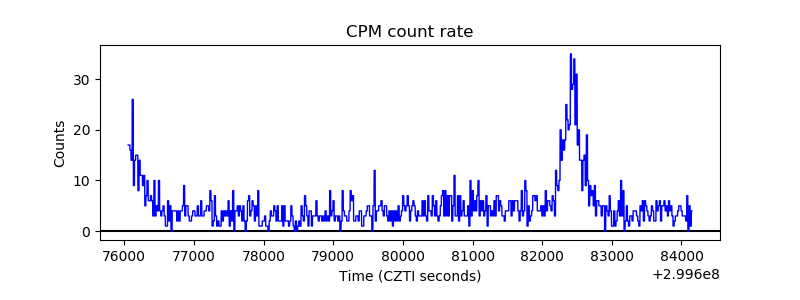

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

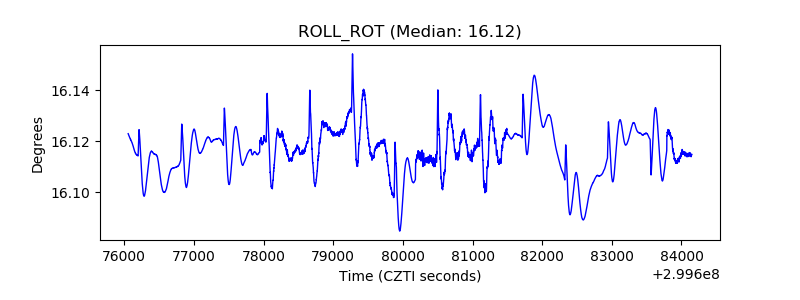

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

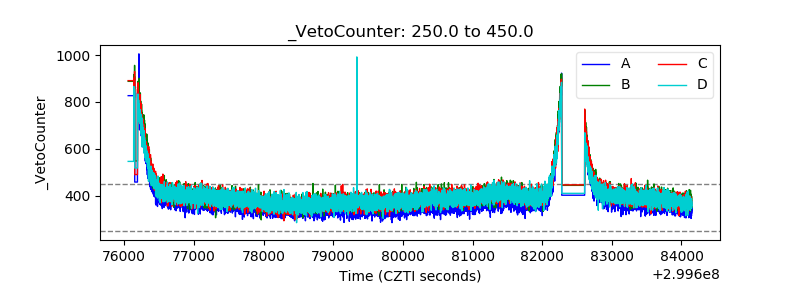

| Veto Counter |  |
