| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_174T01_9000003008_20323cztM0_level2.evt | modeM0/AS1A05_174T01_9000003008_20323cztM0_level2_quad_clean.evt |
| Size (bytes) | 449,519,040 | 94,305,600 |
| Size | 428.7 MB | 89.9 MB |
| Events in quadrant A | 3,263,890 | 607,164 |
| Events in quadrant B | 3,253,443 | 623,505 |
| Events in quadrant C | 3,461,453 | 600,908 |
| Events in quadrant D | 3,213,988 | 591,719 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 19 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13427 | 3 |
| B | 0 | 13380 | 2 |
| C | 0 | 13884 | 2 |
| D | 0 | 13433 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6197 | 45 | 0.726158% |
| B | 6197 | 69 | 1.113442% |
| C | 6197 | 101 | 1.629821% |
| D | 6197 | 19 | 0.306600% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7507 | 6198 | 11 | 11 | 0.15% | 0.18% |  |
| B | 7507 | 6198 | 13 | 13 | 0.17% | 0.21% |  |
| C | 7507 | 6198 | 12 | 12 | 0.16% | 0.19% |  |
| D | 7507 | 6198 | 3 | 3 | 0.04% | 0.05% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 238 | 151876 | 936.19 | 805 | 788 | 161.4 |
| A | 13 | 254 | 9634 | 54.81 | 805 | 788 | 161.4 |
| A | 0 | 226 | 7011 | 38.56 | 805 | 788 | 161.4 |
| B | 7 | 220 | 36720 | 239.02 | 802 | 781 | 150.4 |
| B | 0 | 230 | 35753 | 232.59 | 802 | 781 | 150.4 |
| B | 4 | 142 | 27274 | 176.2 | 802 | 781 | 150.4 |
| C | 3 | 247 | 172164 | 933.31 | 788 | 798 | 183.6 |
| C | 14 | 238 | 123685 | 669.28 | 788 | 798 | 183.6 |
| C | 3 | 9 | 85341 | 460.44 | 788 | 798 | 183.6 |
| D | 1 | 52 | 136315 | 700.09 | 802 | 784 | 193.6 |
| D | 9 | 1 | 44042 | 223.45 | 802 | 784 | 193.6 |
| D | 2 | 234 | 25605 | 128.21 | 802 | 784 | 193.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

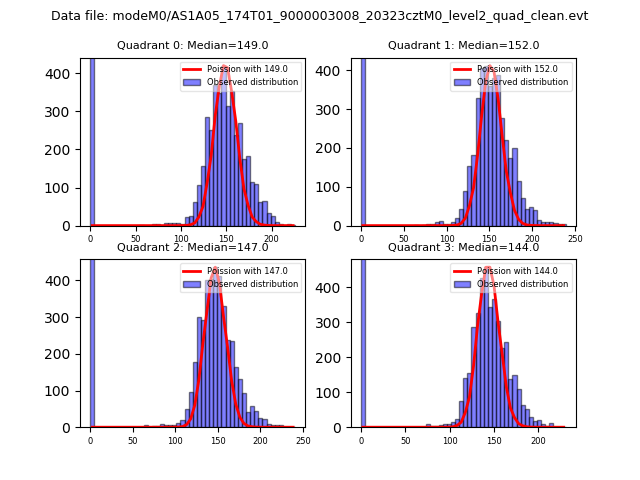

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

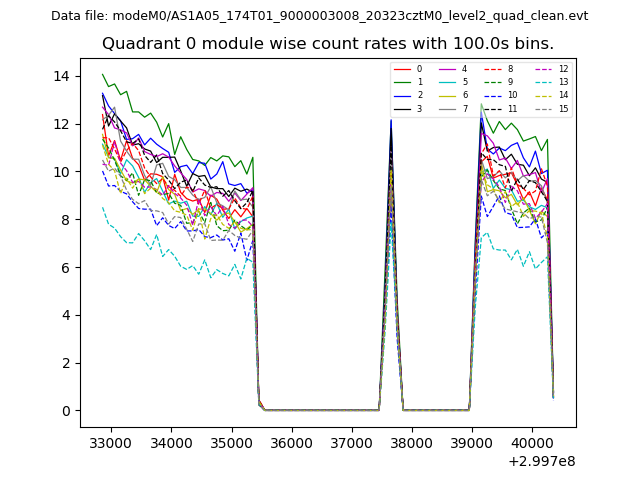

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

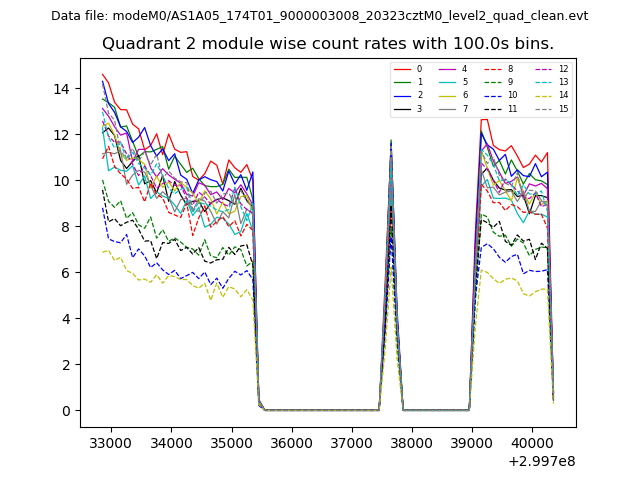

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

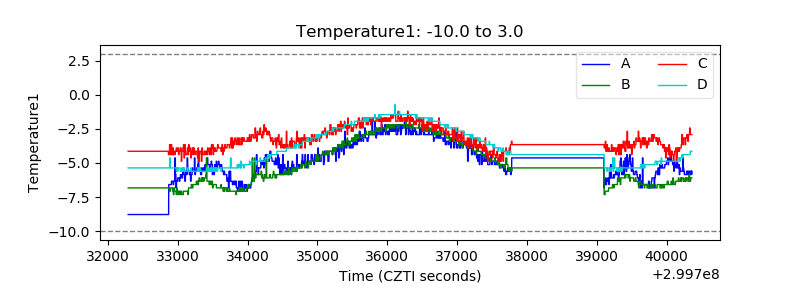

| Temperature 1 |  |
| Veto HV Monitor |  |

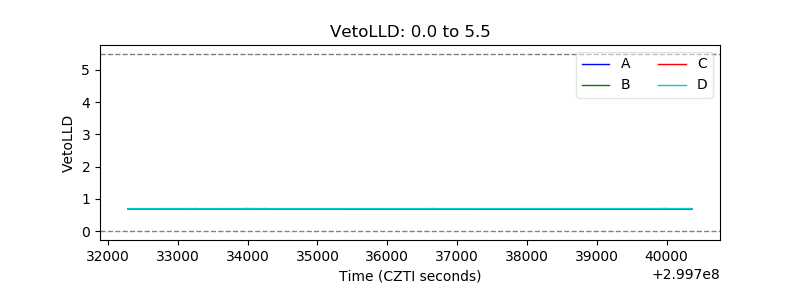

| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

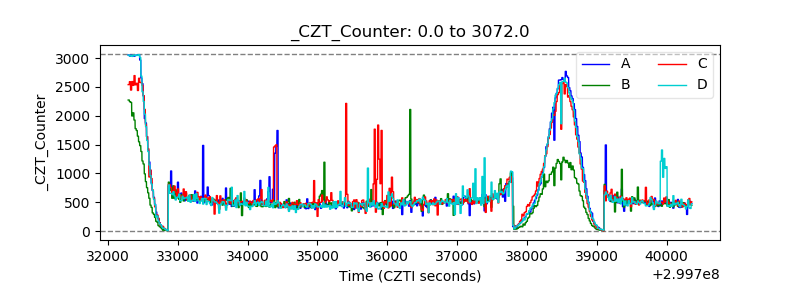

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

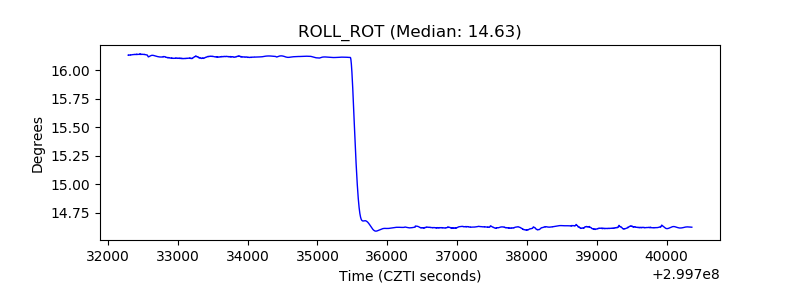

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

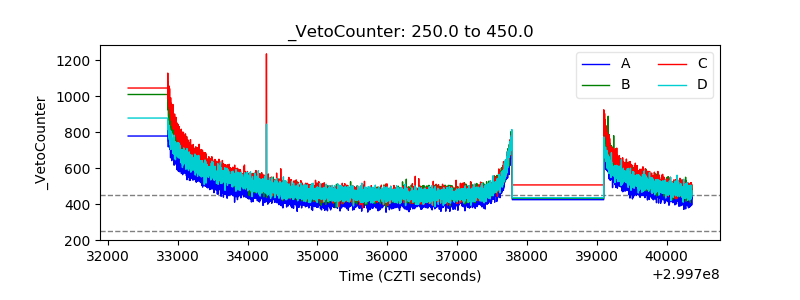

| Veto Counter |  |
