| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_174T01_9000003008_20324cztM0_level2.evt | modeM0/AS1A05_174T01_9000003008_20324cztM0_level2_quad_clean.evt |
| Size (bytes) | 510,235,200 | 104,112,000 |
| Size | 486.6 MB | 99.3 MB |
| Events in quadrant A | 3,505,142 | 673,839 |
| Events in quadrant B | 3,632,492 | 686,796 |
| Events in quadrant C | 3,616,280 | 663,329 |
| Events in quadrant D | 4,222,726 | 640,978 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 20 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14654 | 2 |
| B | 0 | 15150 | 2 |
| C | 0 | 15035 | 2 |
| D | 0 | 17090 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7013 | 61 | 0.869813% |
| B | 7013 | 116 | 1.654071% |
| C | 7013 | 126 | 1.796663% |
| D | 7013 | 332 | 4.734065% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8068 | 7014 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8068 | 7014 | 27 | 27 | 0.33% | 0.38% |  |
| C | 8068 | 7014 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8068 | 7014 | 216 | 216 | 2.68% | 3.08% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 238 | 41223 | 226.13 | 882 | 863 | 178.5 |
| A | 4 | 2 | 33685 | 183.9 | 882 | 863 | 178.5 |
| A | 10 | 253 | 12719 | 66.43 | 882 | 863 | 178.5 |
| B | 7 | 220 | 131070 | 784.17 | 873 | 851 | 166.1 |
| B | 12 | 111 | 19754 | 113.83 | 873 | 851 | 166.1 |
| B | 0 | 230 | 18255 | 104.81 | 873 | 851 | 166.1 |
| C | 14 | 238 | 136147 | 679.56 | 856 | 862 | 199.1 |
| C | 3 | 9 | 124676 | 621.94 | 856 | 862 | 199.1 |
| C | 0 | 207 | 15592 | 73.99 | 856 | 862 | 199.1 |
| D | 1 | 52 | 866741 | 4107.42 | 868 | 843 | 210.8 |
| D | 9 | 1 | 39606 | 183.87 | 868 | 843 | 210.8 |
| D | 2 | 234 | 25021 | 114.69 | 868 | 843 | 210.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

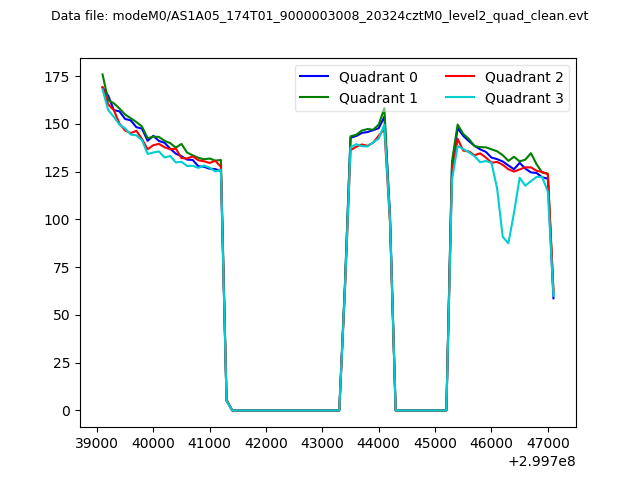

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

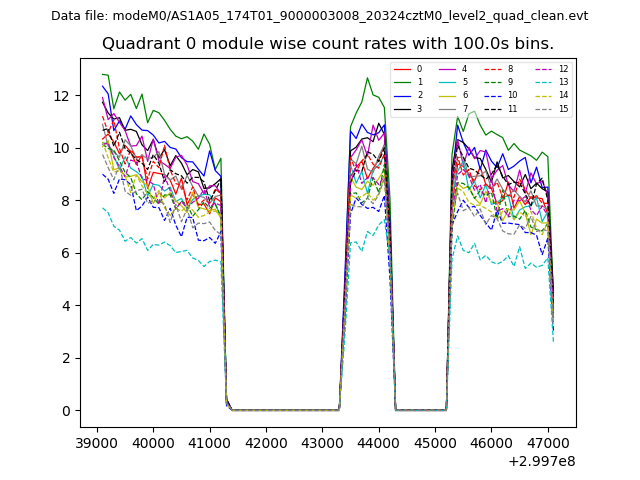

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

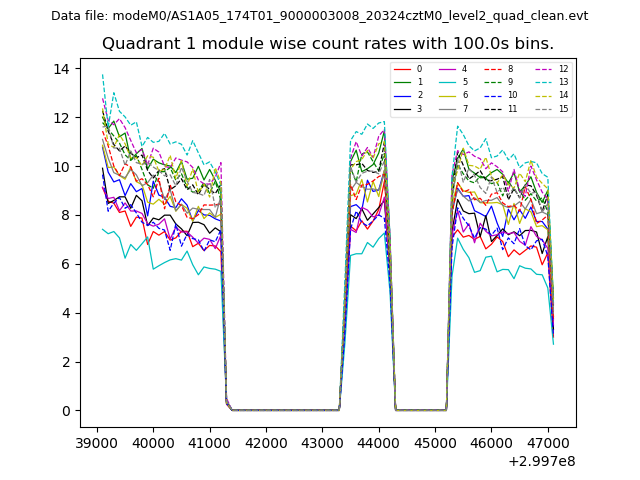

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

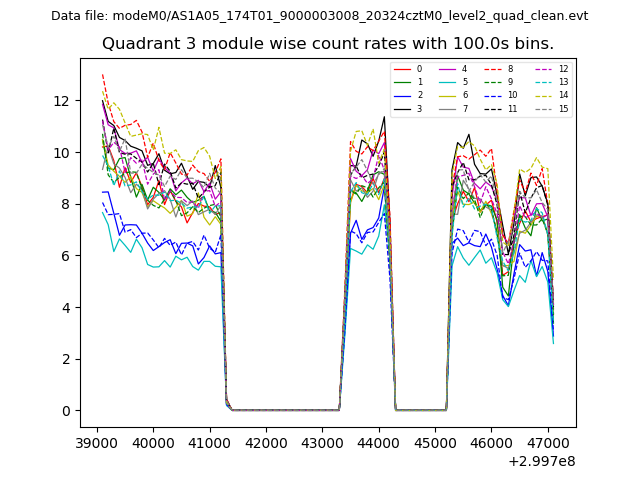

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

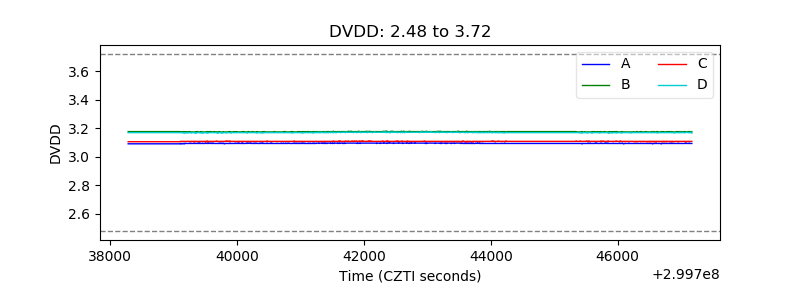

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

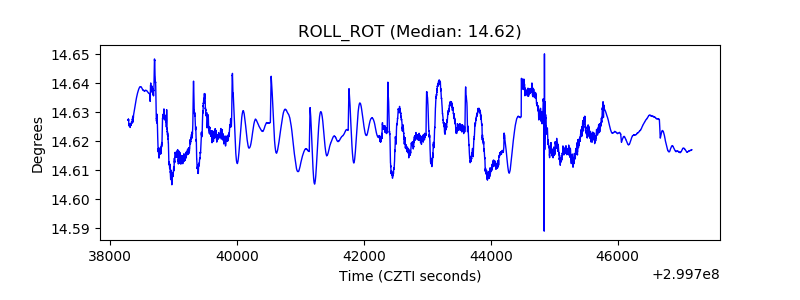

| _ROLL_ROT |  |

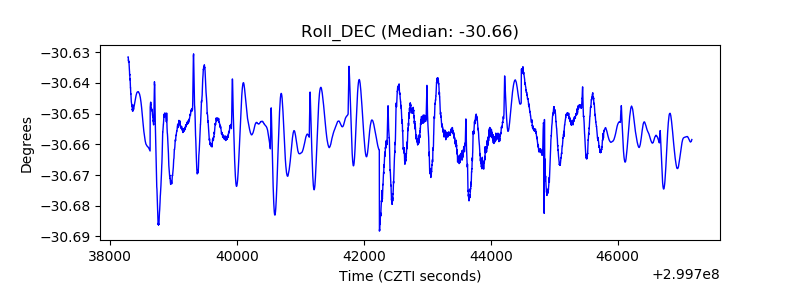

| _Roll_DEC |  |

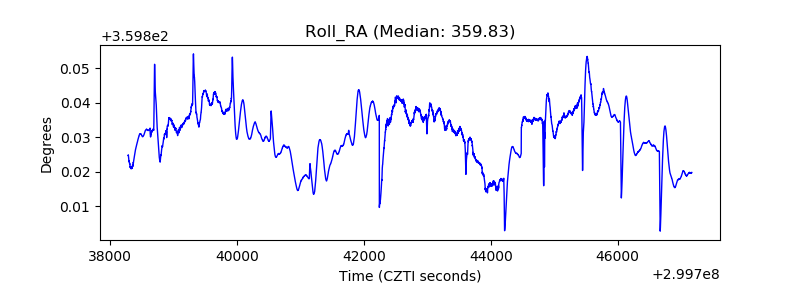

| _Roll_RA |  |
| Veto Counter |  |
