| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_174T01_9000003008_20336cztM0_level2.evt | modeM0/AS1A05_174T01_9000003008_20336cztM0_level2_quad_clean.evt |
| Size (bytes) | 400,703,040 | 86,970,240 |
| Size | 382.1 MB | 82.9 MB |
| Events in quadrant A | 2,688,243 | 566,076 |
| Events in quadrant B | 3,035,487 | 588,582 |
| Events in quadrant C | 2,804,525 | 572,186 |
| Events in quadrant D | 3,248,447 | 537,468 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 20 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11270 | 2 |
| B | 0 | 12480 | 2 |
| C | 0 | 11595 | 2 |
| D | 0 | 12994 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 108 | 0 |
| B | 0 | 108 | 0 |
| C | 0 | 108 | 0 |
| D | 0 | 108 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5272 | 19 | 0.360395% |
| B | 5272 | 71 | 1.346737% |
| C | 5272 | 75 | 1.422610% |
| D | 5272 | 209 | 3.964340% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6607 | 5273 | 0 | 0 | 0.00% | 0.00% |  |
| B | 6607 | 5273 | 14 | 14 | 0.21% | 0.27% |  |
| C | 6607 | 5273 | 0 | 0 | 0.00% | 0.00% |  |
| D | 6607 | 5273 | 148 | 148 | 2.24% | 2.81% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 6013 | 38.05 | 697 | 684 | 140.1 |
| A | 13 | 254 | 5402 | 33.68 | 697 | 684 | 140.1 |
| A | 3 | 137 | 5264 | 32.7 | 697 | 684 | 140.1 |
| B | 7 | 220 | 76587 | 581.67 | 700 | 683 | 130.5 |
| B | 0 | 230 | 67894 | 515.06 | 700 | 683 | 130.5 |
| B | 4 | 142 | 48682 | 367.83 | 700 | 683 | 130.5 |
| C | 14 | 238 | 108860 | 674.57 | 690 | 697 | 160.3 |
| C | 13 | 61 | 4834 | 25.8 | 690 | 697 | 160.3 |
| C | 1 | 16 | 3587 | 18.02 | 690 | 697 | 160.3 |
| D | 1 | 52 | 617859 | 3743.24 | 685 | 666 | 164.9 |
| D | 2 | 234 | 19151 | 112.11 | 685 | 666 | 164.9 |
| D | 12 | 218 | 17734 | 103.51 | 685 | 666 | 164.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

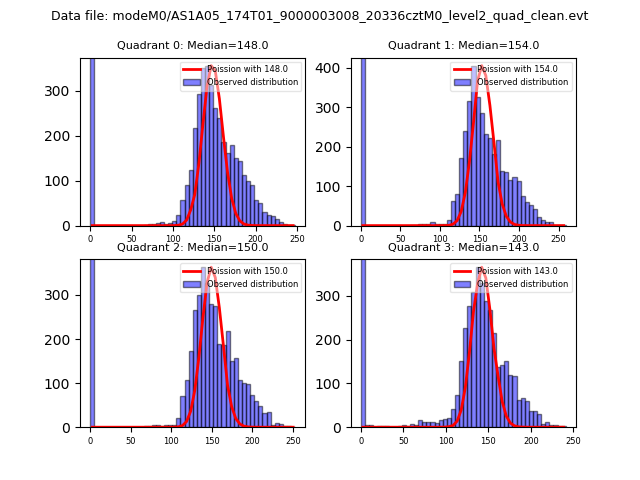

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

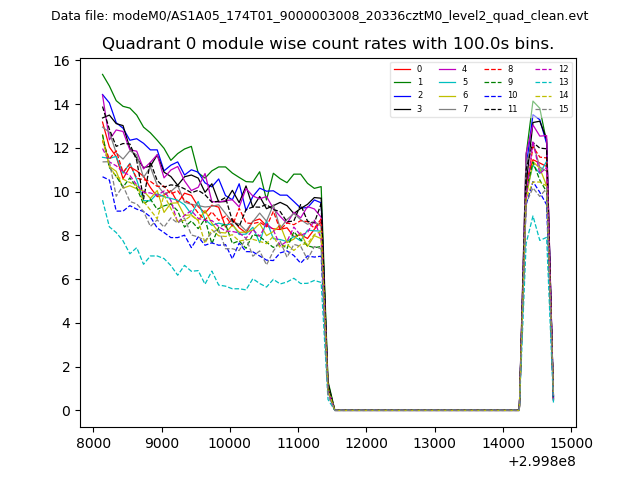

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

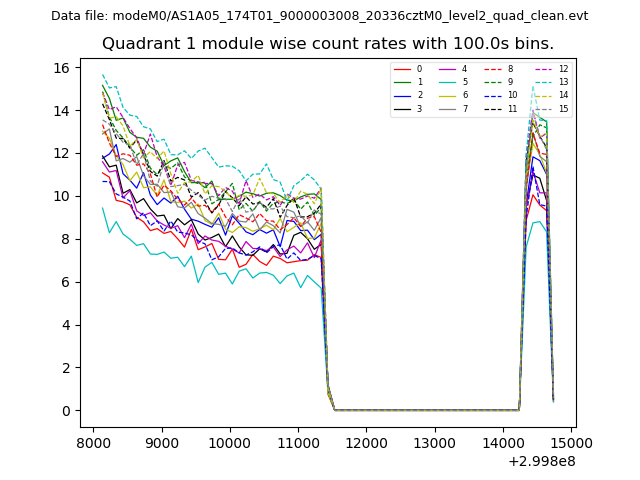

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

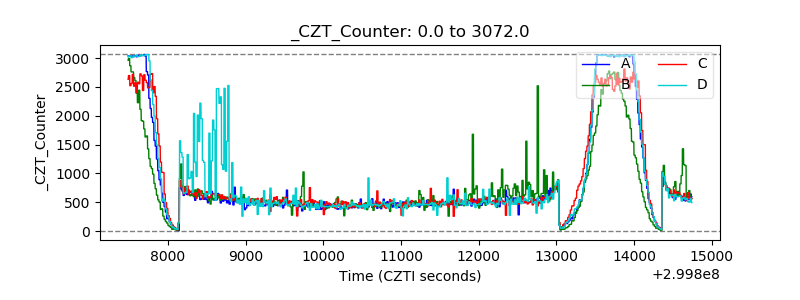

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
