| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A06_009T02_9000003006_20278cztM0_level2.evt | modeM0/AS1A06_009T02_9000003006_20278cztM0_level2_quad_clean.evt |
| Size (bytes) | 520,620,480 | 90,175,680 |
| Size | 496.5 MB | 86.0 MB |
| Events in quadrant A | 3,309,451 | 583,428 |
| Events in quadrant B | 3,754,551 | 592,409 |
| Events in quadrant C | 3,354,592 | 578,436 |
| Events in quadrant D | 4,916,280 | 531,646 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13520 | 2 |
| B | 0 | 14944 | 2 |
| C | 0 | 13602 | 2 |
| D | 0 | 18764 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 20 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6370 | 31 | 0.486656% |
| B | 6370 | 203 | 3.186813% |
| C | 6370 | 59 | 0.926217% |
| D | 6370 | 403 | 6.326531% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7695 | 6371 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7695 | 6371 | 107 | 107 | 1.39% | 1.68% |  |
| C | 7695 | 6371 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7695 | 6371 | 327 | 327 | 4.25% | 5.13% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 205 | 34090 | 199.68 | 838 | 825 | 166.6 |
| A | 10 | 253 | 19854 | 114.22 | 838 | 825 | 166.6 |
| A | 14 | 238 | 17599 | 100.69 | 838 | 825 | 166.6 |
| B | 4 | 142 | 267323 | 1711.04 | 840 | 820 | 155.8 |
| B | 7 | 220 | 163320 | 1043.3 | 840 | 820 | 155.8 |
| B | 12 | 111 | 18111 | 111.01 | 840 | 820 | 155.8 |
| C | 14 | 238 | 130811 | 686.24 | 823 | 833 | 189.4 |
| C | 3 | 233 | 8198 | 38.88 | 823 | 833 | 189.4 |
| C | 13 | 61 | 5728 | 25.84 | 823 | 833 | 189.4 |
| D | 1 | 52 | 1858813 | 9744.15 | 800 | 779 | 190.7 |
| D | 2 | 234 | 27657 | 140.96 | 800 | 779 | 190.7 |
| D | 2 | 120 | 9508 | 45.78 | 800 | 779 | 190.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

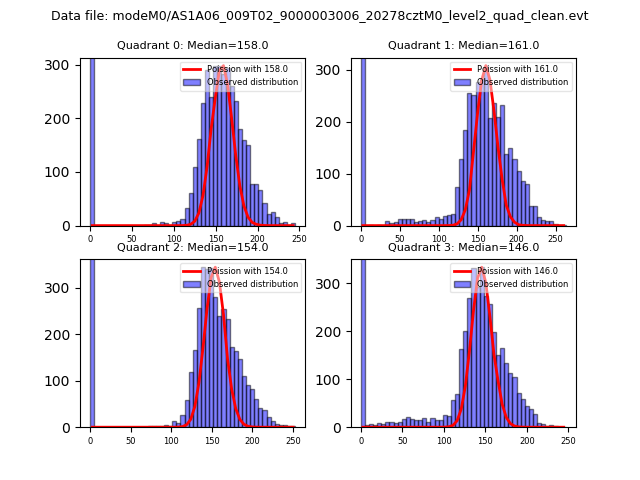

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

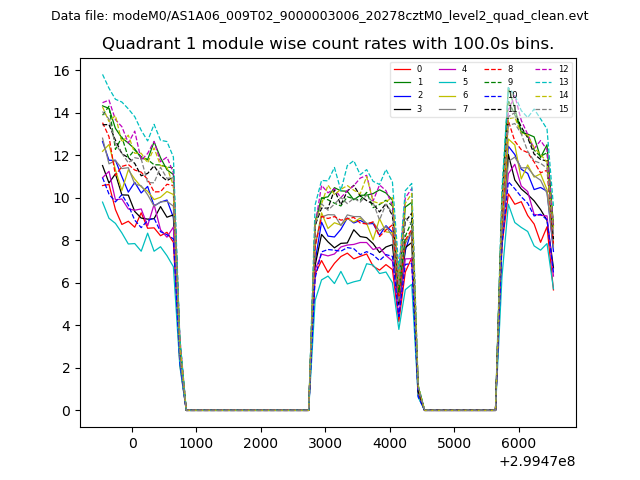

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

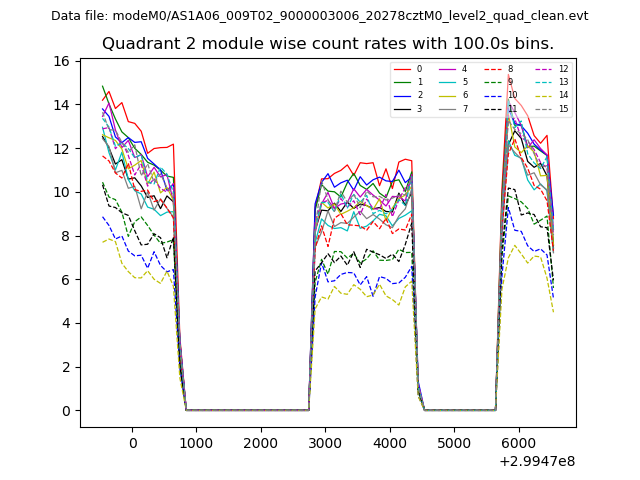

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

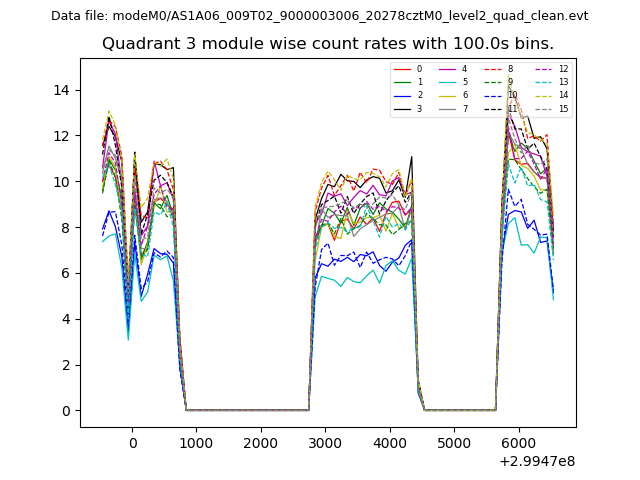

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |

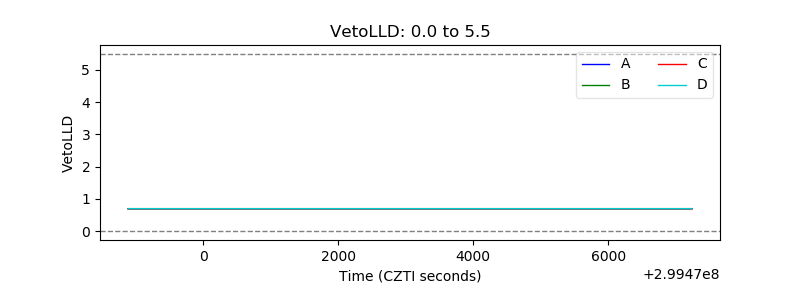

| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

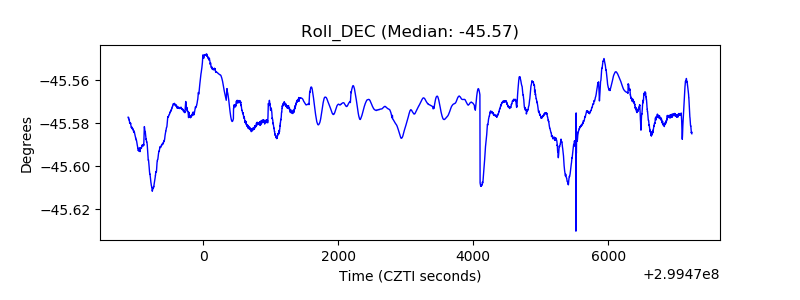

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
